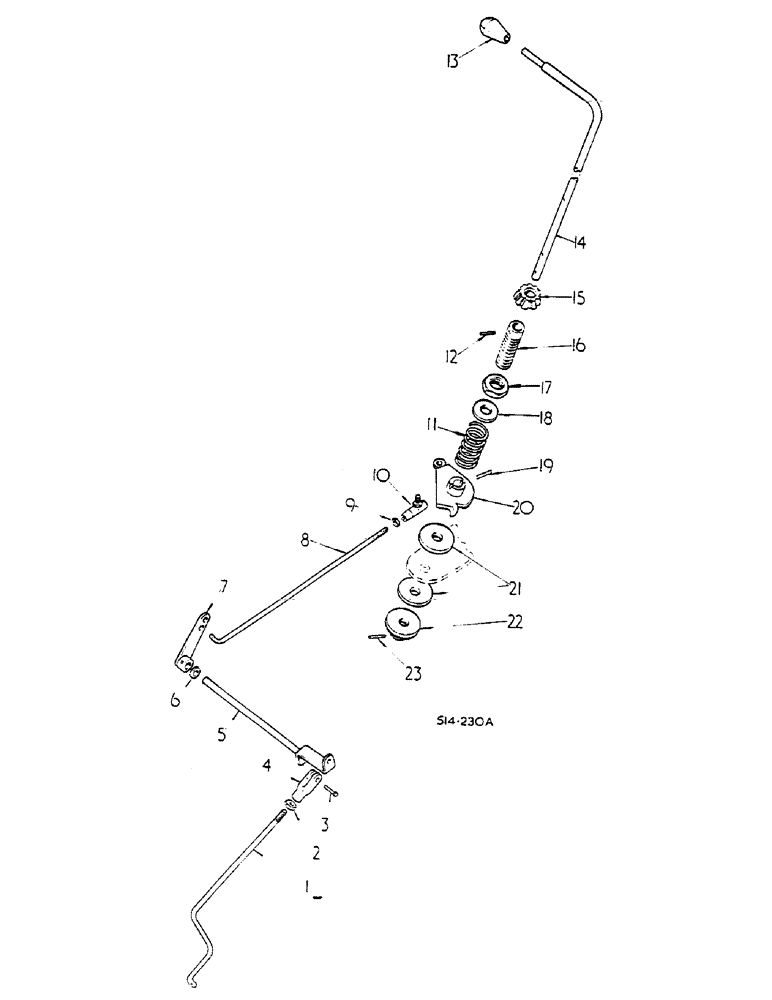

Запчасти Case IH HYDRO 84 (12-035) - GOVERNOR CONTROLS, BOSCH, 685/UP TO 10580, 268/UP TO 800, H84/UP TO 3007 Power

1

528334R3

ROD

FRONT GOVERNOR CONTROLS, INCLUDES PIN

1шт.

NLS

NO LONGER SERVICED

PIN, COTTER 1/16 X 1/2

1шт.

2

114492

JAM NUT,Jam, 1/4"-28, G5

1шт.

3

114783

PIN

1/4 X .766 ROD END

1шт.

4

213-124

ADJUSTABLE CLEVIS,1/4"-28

Short adj rod end

1шт.

5

528325R2

ARM

ASSY, GOVERNOR CONTROL IDLER

1шт.

6

Q1597

WASHER

13/32 X 3/4 X 16 GA PLAIN

1шт.

6

20285H

WASHER

13/32 X 3/4 X 11 GA PLAIN, OPTIONAL

1шт.

7

539572R2

LEVER

ASSY, IDLER ARM, BOSCH CR PUMPS, INCLUDES PIN

1шт.

19313R1

PIN,5/32" x 7/8", Coiled

1шт.

8

528336R2

ROD

REAR GOVERNOR CONTROL, INCLUDES PIN

1шт.

103361

PIN, SPLIT (COTTER)

PIN, COTTER 5/32 X 7/8 HV COILED SPRING

1шт.

9

120613

JAM NUT,Hex, 1/4" - 28, Gr 5

1шт.

10

191474

BALL JOINT

1/4 UNF

1шт.

10

192227

BALL JOINT

1/4 UNF

1шт.

10

27258R1

BALL JOINT

1/4 UNF, OPTIONAL, INCLUDES NUTS AND WASHER

1шт.

114492

JAM NUT,Jam, 1/4"-28, G5

1шт.

25-114

NUT,1/4"-28, G5

1/4-28 HEX

1шт.

103319

LOCK WASHER,1/4"

1шт.

11

65344C1

SPRING

GOVERNOR FRICTION CONTROL, ADJUSTABLE FRICTION THROTTLE CONTROL

1шт.

12

19313R1

PIN,5/32" x 7/8", Coiled

5/32 X 1 HV coiled spring, Adjustable friction throttle control

1шт.

13

402584R1

BUTTON

KNOB, GOVERNOR CONTROL HANDLE

1шт.

14

3121391R1

ROD

GOVERNOR CONTROL HANDLE

1шт.

15

528290R1

GUIDE RING

COLLAR, GOVERNOR CONTROL HANDLE, INCLUDES SCREW

1шт.

222335

SET SCREW,Hex Soc, #8-32 x 3/8"

8-32 X 3/8 HEX SOC HD F. PT

1шт.

16

65345C1

SPACER

ADJUSTABLE, FRICTION THROTTLE CONTROL

1шт.

17

219758

JAM NUT,Jam, 3/4"-10, G5

3/4-16 ZND HEX JAM

1шт.

18

467750R1

WASHER

25/32 X 1-1/2 X .120 ZND, ADJUSTABLE FRICTION THROTTLE CONTROL

1шт.

19

19313R1

PIN,5/32" x 7/8", Coiled

1шт.

20

528291R3

ARM ASSY.

GOVERNOR CONTROL ROD

1шт.

21

3123275R1

FRICTION WASHER

DISC, GOVERNOR CONTROL

2шт.

22

528294R1

PLATE ASSY.

GOVERNOR CONTROL FRICTION, INCLUDES PIN

1шт.

19368R1

PIN,5/32" x 1", Coiled

1шт.

23

19313R1

PIN,5/32" x 7/8", Coiled

1шт.
