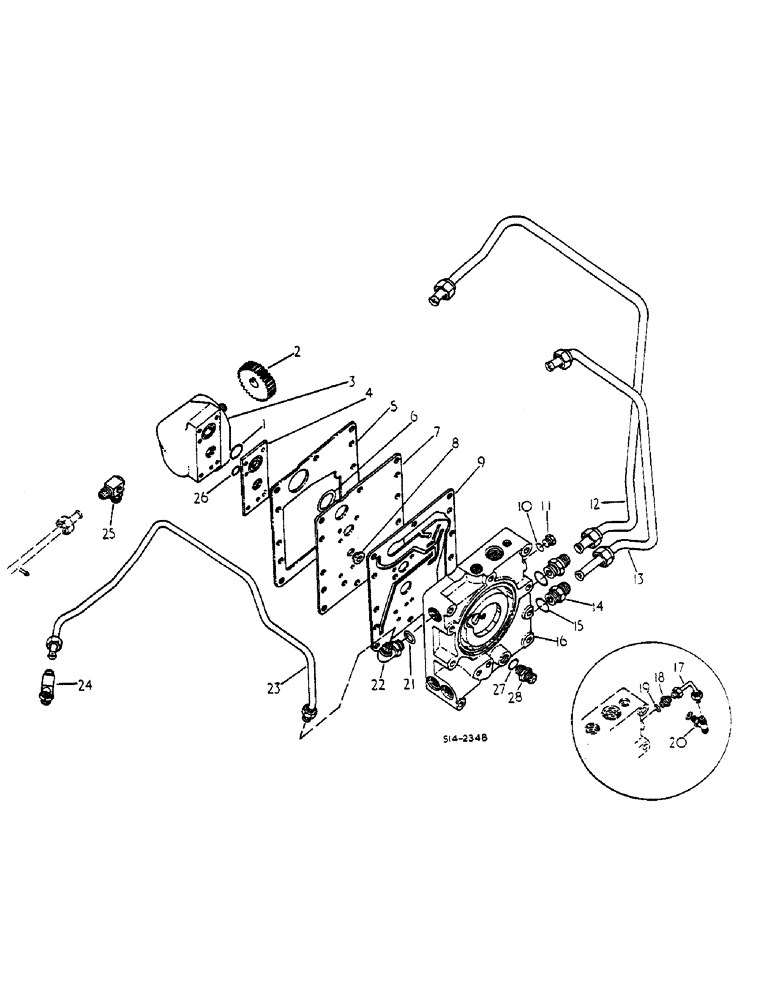

Запчасти Case IH HYDRO 84 (10-002) - HYDRAULIC POWER SUPPLY AND MULTI-CONTROL VALVE (07) - HYDRAULICS

1

372821R1

O-RING,0.103" Thk x 1.049" ID, -121, Cl 5, 75 Duro

1-1/16 X 1-1/4 X 3/32, PUMP SUCTION PORT

1шт.

2

544908R1

GEAR

HYD PUMP DRIVEN -21T

1шт.

2

59369C1

GEAR

HYD PUMP DRIVEN -23T

1шт.

2

406764R1

PINION

GEAR, HYD PUMP DRIVEN -27T, INCLUDES NUT, SCREWS AND WASHERS

1шт.

19258R1

LOCK NUT,1/2"-20, GB

1/2-20 ESNA STOP

1шт.

179829

BOLT,Hex, 5/16" - 18 x 2 3/4", Gr 5

2шт.

186270

BOLT,Hex, 5/16" - 18 x 3 1/2", Gr 5

2шт.

382331R1

SEALING WASHER,8.33mm ID x 12.7mm OD x 0.79mm Thk

PUMP MOUNTING BOLT

4шт.

3

128180C91

PUMP, HYDRAULIC

ASSY, HYD GEAR, 200900LAK, CESSNA, INCLUDES O-RING AND GASKET SERVICE PACKAGE

1шт.

3

84573150R

REMAN-HYD PUMP

268 (1/78-12/86) INTERNATIONAL INDUSTRIAL DIESEL TRACTOR, HYDRO 84 (1/77-12/81) INTERNATIONAL HYDROSTATIC DRIVE TRACTOR (EU), 684 (EUROPE) (1/77-12/81), 685 (1/81-12/85), Both INTERNATIONAL DIESEL TRACTOR, All ASSY, HYD GEAR, 200900LAK, CESSNA, Reman for New PN 128180C91

1шт.

3

84573150C

CORE-HYDRAULIC PUMP

Return Number

1шт.

73234C91

PACKAGE,SERVICE

O-RING AND GASKET

1шт.

3

67248C91

PUMP

ASSY, HYD GEAR, 200900 LAD, NOT SERVICED, CESSNA, INCLUDES SEAL, SPRING, BALL, KEY AND O-RING AND GASKET PACKAGE

1шт.

373244R91

SEAL

PUMP SHAFT

1шт.

371523R1

SPRING

BALL CHECK

1шт.

16007R1

BALL

7-32

1шт.

124546

WOODRUFF KEY,#6, 5/32" x 5/8", HT

1шт.

67249C93

PACKAGE,SERVICE

O-RING AND GASKET

1шт.

3

406763R92

HYDRAULIC PUMP

ASSY, HYD GEAR, PLESSEY, INCLUDES KEY AND SEAL KITS

1шт.

3

84573150R

REMAN-HYD PUMP

268 (1/78-12/86) INTERNATIONAL INDUSTRIAL DIESEL TRACTOR, HYDRO 84 (1/77-12/81) INTERNATIONAL HYDROSTATIC DRIVE TRACTOR (EU), 684 (EUROPE) (1/77-12/81), 685 (1/81-12/85), Both INTERNATIONAL DIESEL TRACTOR, All ASSY, HYD GEAR, PLESSEY, Reman for New PN 406763R92

1шт.

3

84573150C

CORE-HYDRAULIC PUMP

Return Number

1шт.

124546

WOODRUFF KEY,#6, 5/32" x 5/8", HT

Pump shaft

1шт.

70230C1

SEAL KIT

KIT, UP TO S/N 685/10982, UP TO SN 268/812, H84/3036

1шт.

1502030C1

SEAL KIT

SEAL PACK, S/N 685/10983 UP, S/N 268/813 UP, H84/3037 UP

1шт.

3

66513C92

PUMP, HYDRAULIC

ASSY, GEAR, PLESSEY, INCLUDES KEY SEAL KITS, SCREWS AND WASHERS

1шт.

124546

WOODRUFF KEY,#6, 5/32" x 5/8", HT

Pump shaft

1шт.

70230C1

SEAL KIT

KIT, UP TO SN 685/11143, UP TO SN 268/821, H84/3056

1шт.

1502030C1

SEAL KIT

SEAL PACK, SN 685/11144 UP, SN 268/813 UP, H84/3057 UP

1шт.

413-548

BOLT,Hex, 5/16" - 18 x 3", Gr 5

2шт.

186271

SCREW,Hex, 5/16" - 18 x 3 3/4", Gr 5

2шт.

382331R1

SEALING WASHER,8.33mm ID x 12.7mm OD x 0.79mm Thk

PUMP MTG BOLT, SYNCHROMESH AND HYDROSTATIC

4шт.

413-548

BOLT,Hex, 5/16" - 18 x 3", Gr 5

Synchromesh drive

2шт.

4

NOT USED

1шт.

5

401736R3

GASKET

MULTIPLE CONTROL VALVE HV

1шт.

6

707253R1

O-RING,-222, 70 Duro, 1.484" ID x .139" Thk

1-1/2 X 1-3/4 X 1/8 INLET PORT

1шт.

7

405458R1

PLATE

MULTIPLE CONTROL VALVE

1шт.

8

387926R2

RING

RECTANGULAR

1шт.

9

65000C3

GASKET

MULTIPLE CONTROL VALVE BODY

1шт.

10

369751R1

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1/4 OD tube

1шт.

11

9410356

PLUG

7/16-20 STR THD O-RING BOSS

1шт.

12

66761C1

TUBE ASSY.

DRAFT CONTROL RETURN

1шт.

13

66764C1

PIPE

TUBE ASSY, M.C. VALVE BY-PASS

1шт.

14

9410204

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR, 7/8-14 C-Z 37 DEG HYD FLARED TUBE

2шт.

15

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD TUBE

2шт.

16

57714C94

VALVE

ASSY, MULTIPLE CONTROL, FOR COMPONENTS SEE LIST OF PARTS UNDER DETAILS OF MULTIPLE CONTROL VALVE, INCLUDES SCREWS, BOLT AND WASHERS

1шт.

280161

BOLT,Hex, 3/8" - 16 x 3", Gr 5

9шт.

186284

BOLT,Hex, 3/8" - 16 x 3 3/4", Gr 5

SCREW 3/8-16 X 3-3/4 HEX HD CAP

1шт.

103321

LOCK WASHER,3/8"

10шт.

17

539835R1

TUBE ASSY.

IPTO PRESSURE, TRACTORS W/IPTO

1шт.

18

9410200

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB

7/16-20 C-Z 37 DEG HYD FLARED TUBE SHORT SWIVEL, TRACTORS W/IPTO

1шт.

19

369751R1

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1/4 OD tube, Tractors with IPTO

2шт.

20

9411115

TEE,7/16"-20, 37 Degree x 7/8"-14, O-Ring Br

7/16-20 C-Z 37 DEG HYD FLARED TUBE, TRACTORS W/IPTO, INCLUDES CAP

1шт.

9403369

CAP,37 Degree, 7/16"-20

7/16-20 C-Z 37 DEG HYD FLARED TUBE

1шт.

21

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD TUBE

1шт.

22

9410977

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring

3/4-16 C-Z 37 DEG HYD FLARED TUBE

1шт.

23

529617R3

TUBE

MCV DUMP, HYDROSTATIC DRIVE TRACTORS

1шт.

24

1500561C1

ELBOW

MCV DUMP, HYDROSTATIC DRIVE TRACTORS

1шт.

25

534773R3

ELBOW

1шт.

26

21433R1

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

11/16 X 7/8 X 3/32, PUMP PRESSURE PORT

1шт.

27

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

28

57577C91

VALVE

CHECK

1шт.

529865R1

SEAL

PUMP TO REAR FRAME RIB, NOT ILLUSTRATED

1шт.

69355C1

SEAL

HYD PUMP, USED W/PUMP 66513C91, SYNCHROMESH DRIVE, NOT ILLUSTRATED

1шт.

69354C1

SEAL

HYD PUMP, USED W/PUMP 67248C91, NOT ILLUSTRATED

1шт.

69352C1

SEAL

HYD PUMP, USED W/PUMP 406763R91, NOT ILLUSTRATED

1шт.

3123364R1

SEAL

HYDRAULIC PUMP, USED W/PUMP CESSNA 128180C91, NOT ILLUSTRATED

1шт.

69351C1

GLUE

TUBE, ADHESIVE, NOT ILLUSTRATED

1шт.

59370C1

LARGE PLATE

PLATE, LARGE PUMP MOUNTING, USE W/PUMP 66513C91, HYDROSTATIC DRIVE, NOT ILLUSTRATED

1шт.

544909R2

LARGE PLATE

PLATE, LARGE PUMP MOUNTING, USE W/PUMP 66513C91, SYNCHROMESH DRIVE, NOT ILLUSTRATED

1шт.

537517R1

WASHER

PUMP IDENTIFICATION, NOT ILLUSTRATED

1шт.

1502030C1

SEAL KIT

SEAL PACK, FOR SERVICE ON 66513C92 AND 406763R92, NOT ILLUSTRATED, CONSISTS OF 1 SHAFT SEAL, 2 BACK-UP RINGS, 2 PRESSURE LOADING RINGS, 1 SERVICE PAMPHLET, INSTRUCTIONS

1шт.
