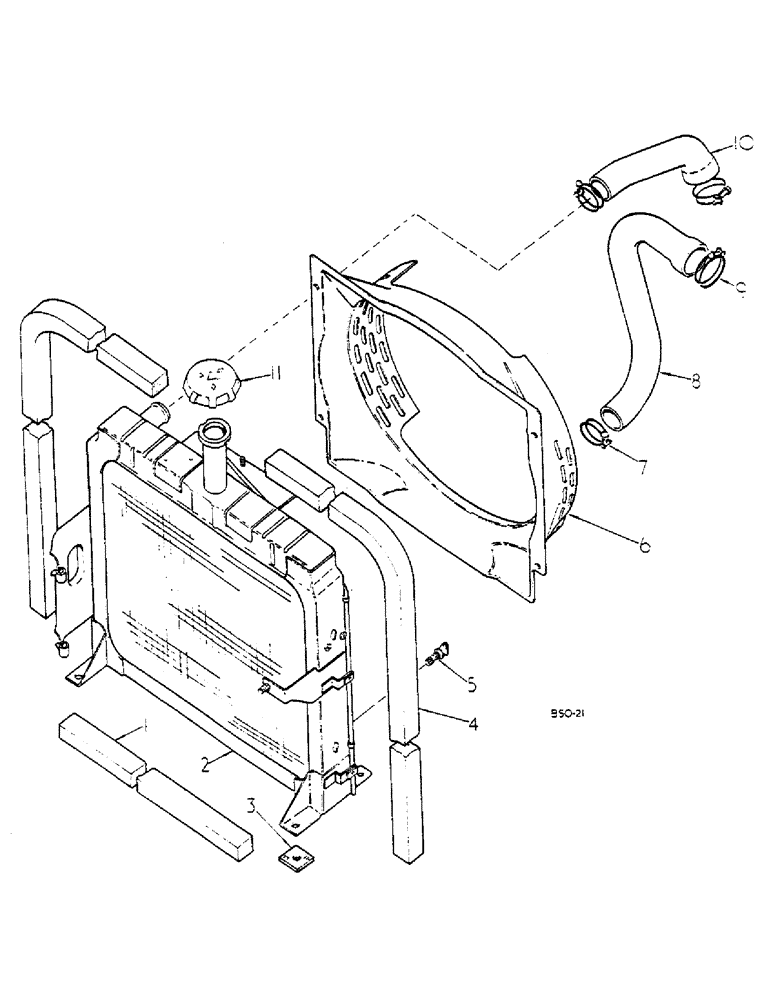

Запчасти Case IH HYDRO 84 (06-006) - RADIATOR AND CONNECTIONS Cooling

1

537162R1

FILLING STRIP

GASKET, LOWER RADIATOR

1шт.

2

3121413R91

RADIATOR

ASSY, SYNCHROMESH DRIVE TRACTORS, INCLUDES SCREWS, WASHERS AND NUTS

1шт.

2

3121414R91

RADIATOR

ASSY, HYDROSTATIC DRIVE TRACTORS, INCLUDES SCREWS, WASHERS AND NUTS

1шт.

179858

SUPPORT

7/16-14 X 1 HEX HD

4шт.

103322

LOCK WASHER,7/16"

4шт.

142745

NUT, WING

5/16-18 ZND

1шт.

3

47240D

PAD

RADIATOR, INCLUDES WASHERS

4шт.

496-21047

WASHER

.469 X .922 X .051 PLN

4шт.

4

402203R1

GASKET

RADIATOR BAFFLE

2шт.

5

3113083R1

PLUG, DRAIN

1шт.

6

527475R2

HOUSING

SHROUD, FAN, INCLUDES SCREWS AND WASHERS

1шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

4шт.

95-11028

WASHER,1/4"

9/32 X 5/8 X .051

4шт.

7

705935R91

HOSE CLAMP

2шт.

7

39149H

HOSE CLAMP

OPTIONAL

2шт.

8

402205R1

LARGE HOSE,50.80 mm ID x 213.90 mm, SAE 100R2

HOSE,LARGE RADIATOR OUTLET

1шт.

8

402205R1GV

RADIATOR HOSE

Value, Radiator Hose

1шт.

9

706082R91

CLAMP

HOSE

2шт.

9

39205H

CLAMP

HOSE, OPTIONAL

2шт.

10

402207R1

LARGE HOSE,50.80 mm ID x 179.83 mm, SAE 20R2

HOSE,LARGE Inlet

1шт.

10

402207R1GV

RADIATOR HOSE

Value, Radiator Hose

1шт.

11

532029R1

CAP ASSY.

RADIATOR

1шт.
