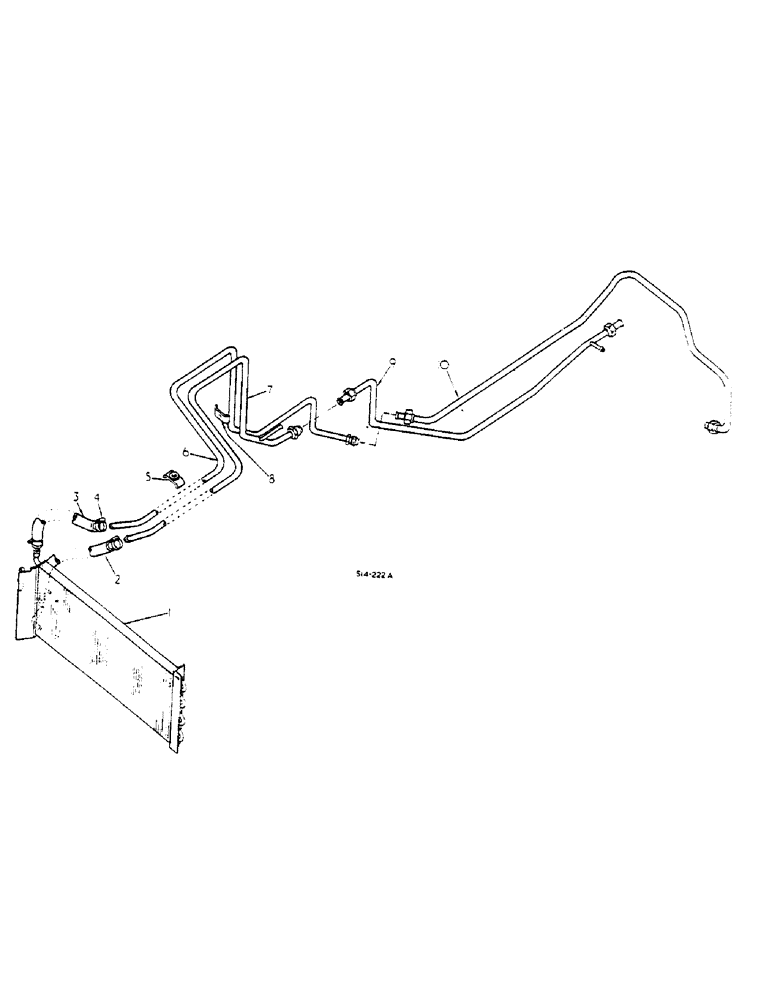

Запчасти Case IH HYDRO 84 (06-002) - OIL COOLER, SYNCHROMESH DRIVE TRACTORS Cooling

1

539560R1

COOLER

OIL, INCLUDES PINS

1шт.

Q663

HEADED PIN,5/16" x 1 7/8"

5/16 X 1-3/4 STD HD

2шт.

103384

COTTER PIN,1/8" x 3/4"

2шт.

2

3125980R1

LARGE HOSE

HOSE,LARGE OIL COOLER OUTLET, BULK LENGTH

1шт.

3

3125980R1

LARGE HOSE

HOSE,LARGE OIL COOLER OUTLET, BULK LENGTH

1шт.

4

274085R91

HOSE CLAMP,#10, 0.56/1.06 Type F Worm

OIL COOLER

4шт.

4

3074617R1

CLAMP

OIL COOLER HOSE, OPTIONAL

4шт.

5

529644R11

CLAMP

ASSY, OIL COOLING TUBE, INCLUDES SCREW AND WASHER

1шт.

NLS

NO LONGER SERVICED

1/4-20 X 7/8 HEX HD CAP

1шт.

103319

LOCK WASHER,1/4"

1шт.

6

66098C1

PIPE

TUBE ASSY, OIL COOLER INLET

1шт.

7

66100C2

TUBE ASSY.

OIL COOLER OUTLET

1шт.

8

381448R1

CLAMP

OIL COOLER TUBE, INCLUDES SCREW AND WASHER

1шт.

179801

BOLT,Hex, 1/4" - 20 x 1 1/2", Gr 5

1шт.

103319

LOCK WASHER,1/4"

1шт.

9

66096C2

TUBE ASSY.

OIL COOLER RETURN REAR

1шт.

10

66095C2

TUBE ASSY.

OIL COLLER REAR, 684

1шт.

10

3129259R1

PIPE

TUBE ASSY, OIL COOLER REAR, 685

1шт.
