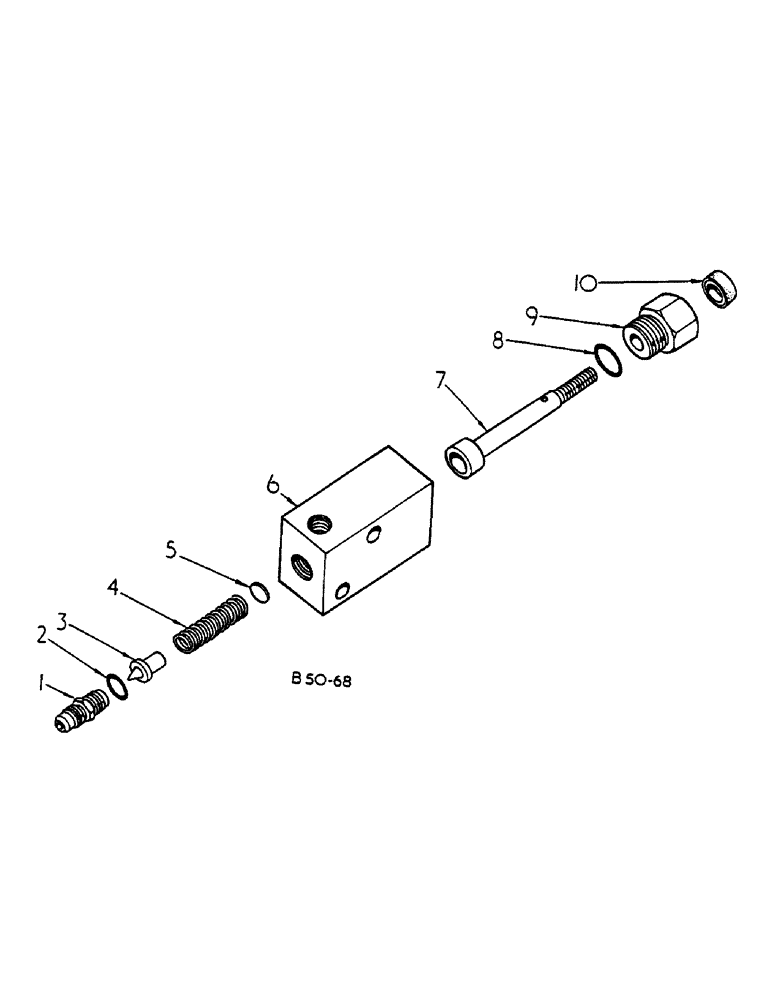

Запчасти Case IH HYDRO 84 (07-124) - FOOT-N-INCH VALVE (04) - Drive Train

398705R91

VALVE

ASSY, FOOT-N-INCH

1шт.

1

398709R1

SEAT

POPPET VALVE

1шт.

3

398710R1

VALVE POPPET

1шт.

4

398731R1

SPRING

VALVE

1шт.

5

401293R91

PACKAGE

RELIEF VALVE SHIM, SERVICE

7шт.

6

BODY, VALVE, ORDER VALVE 398705R91

1шт.

7

398708R1

STOP

VALVE

1шт.

8

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD TUBE

1шт.

9

398707R1

GUIDE

VALVE SPRING STOP

1шт.

10

398701R1

SEAL

OIL

1шт.

10

530101R1

SEAL, OIL, OPTIONAL

1шт.

2

369751R1

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1/4 OD tube

1шт.
