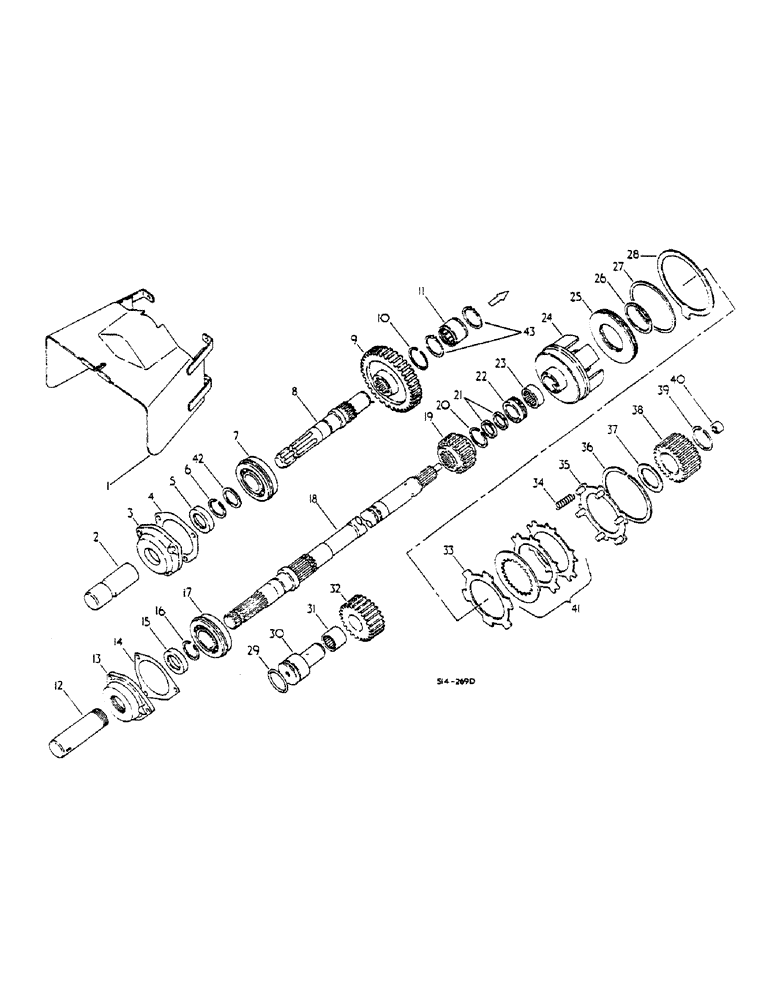

Запчасти Case IH HYDRO 84 (07-083) - INDEPENDENT POWER TAKE-OFF, DUAL SPEED (04) - Drive Train

1

401734R1

GUARD ASSY.

SHIELD, IPTO SAFTETY

1шт.

SHIELD ASSY, IPTO SAFTETY, TRACTORS W/HAND-OPERATED DRUM BRAKE, INCLUDES SCREWS

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

2

3054841R2

TUBE

ASSY, IPTO SHAFT PROTECTION

1шт.

3

401725R2

FLANGED BEARING

IPTO SHAFT BRG, UP TO 9153, INCLUDES SCREWS

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3шт.

3

1500086C1

FLANGED BEARING

IPTO SHAFT BEARING, 9154 UP

1шт.

4

399843R3

GASKET

SHAFT BRG RETAINER

1шт.

5

385766R91

OIL SEAL,38.1mm ID x 60.45mm OD x 8.13mm Thk

SHAFT

1шт.

6

607186R1

SNAP RING,#156, Ext

Brg

1шт.

7

171082R91

BALL BEARING,40 mm ID x 90 mm OD x 23 mm

SHAFT

1шт.

7

ST236

BEARING, BALL,40mm ID x 90mm OD x 23mm W

SHAFT

1шт.

7

533615R91

BALL BEARING

SHAFT

1шт.

7

71268C91

BALL BEARING

SHAFT

1шт.

7

67655C91

BALL BEARING

SHAFT

1шт.

7

85657H

BEARING, BALL

SHAFT, OPTIONAL, USED W/UPPER DRIVE GEAR 36T

1шт.

7

ST250

BALL BEARING,40 mm ID x 90 mm OD x 23 mm

SHAFT BALL

1шт.

7

67650C91

BEARING, BALL,40 mm ID x 90 mm OD x 23 mm

SHAFT

1шт.

7

67649C91

BALL BEARING,40 mm ID x 90 mm OD x 23 mm

SHAFT BALL

1шт.

7

67648C91

BEARING

SHAFT BALL, OPTIONAL, USED W/UPPER DRIVE GEAR 38T

1шт.

8

3113017R1

SHAFT

UPPER OUTPUT, UP TO 9153

1шт.

8

1500087C1

SHAFT

UPPER OUTPUT, 9154 UP

1шт.

9

66192C1

GEAR

UPPER DRIVE -38T

1шт.

9

404237R1

PINION

GEAR, UPPER DRIVE -36T

1шт.

10

336000R1

SNAP RING,#175, 1.640", Ext

DRIVE GEAR RETAINER

1шт.

11

112821R91

NEEDLE BEARING

SHAFT NEEDLE

1шт.

11

528103R91

BEARING, NEEDLE

SHAFT, UP TO 9153, OPTIONAL

1шт.

11

1500088C91

NEEDLE BEARING,Needle, 38.14mm ID x 52.39mm OD x 35.56mm W

SHAFT, CAGED, 9154 UP

1шт.

12

406808R1

TUBE

ASSY IPTO SHAFT PROTECTION

1шт.

13

401725R2

FLANGED BEARING

IPTO SHAFT BRG, UP TO 9153, INCLUDES SCREWS

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3шт.

13

1500086C1

FLANGED BEARING

IPTO BEARING, 9154 UP

3шт.

14

399843R3

GASKET

SHAFT BRG RETAINER

1шт.

15

385766R91

OIL SEAL,38.1mm ID x 60.45mm OD x 8.13mm Thk

SHAFT

1шт.

16

607186R1

SNAP RING,#156, Ext

Brg

1шт.

17

171082R91

BALL BEARING,40 mm ID x 90 mm OD x 23 mm

SHAFT

1шт.

17

ST236

BEARING, BALL,40mm ID x 90mm OD x 23mm W

SHAFT

1шт.

17

533615R91

BALL BEARING

SHAFT

1шт.

17

71268C91

BALL BEARING

SHAFT

1шт.

17

67655C91

BALL BEARING

SHAFT

1шт.

17

85657H

BEARING, BALL

SHAFT, OPTIONAL, USED W/LOWER SHAFT DRIVE GEAR 22T

1шт.

17

ST250

BALL BEARING,40 mm ID x 90 mm OD x 23 mm

SHAFT BALL

1шт.

17

67650C91

BEARING, BALL,40 mm ID x 90 mm OD x 23 mm

SHAFT

1шт.

17

67649C91

BALL BEARING,40 mm ID x 90 mm OD x 23 mm

SHAFT BALL

1шт.

17

67648C91

BEARING

SHAFT BALL, OPTIONAL, USED W/LOWER SHAFT DRIVE GEAR 21T

1шт.

18

66485C1

SHAFT ASSY.

1000 RPM 6 SPLINE

1шт.

18

66180C1

SHAFT

ASSY, 1000 RPM 21 SPLINE

1шт.

19

404232R1

GEAR

LOWER SHAFT DRIVE -21T

1шт.

19

404233R1

PINION

GEAR, LOWER SHAFT DRIVE -22T

1шт.

20

336000R1

SNAP RING,#175, 1.640", Ext

DRIVEN GEAR RETAINER

1шт.

21

166972R1

RING

SHAFT SEALING

2шт.

22

401705R2

BUSHING,39.69mm ID x 50.86mm OD x 23.11mm L

LOWER SHAFT

1шт.

23

565232R91

BEARING, NEEDLE,Needle, 38.09mm ID x 47.64mm OD x 15.88mm W

LOWER SHAFT

1шт.

24

3125149R1

CUP

CLUTCH, W/OUT SIDE DRIVE PTO

1шт.

24

66068C1

GEAR

CLUTCH CUP -44T, - W/SIDE DRIVE PTO, INCLUDES PIN

1шт.

617938R1

PIN,5/16" x 1 3/8", Coiled

1шт.

25

401722R1

PISTON

CLUTCH

1шт.

26

401723R1

O-RING,69.32mm ID x 76.22mm OD x 1.75mm Thk

PISTON SEAL, INNER

1шт.

27

401724R1

SEAL,0.551" ID x 0.07" Width

PISTON SEAL, OUTER

1шт.

28

404490R1

RING,140.25mm ID x 4.5mm Thk

IPTO BRAKE

1шт.

29

379961R1

O-RING,0.103" Thk x 2.05" ID, -137, Cl 5, 75 Duro

2-1/16 X 2-1/4 X 3/32

1шт.

30

401726R1

SHAFT

IPTO IDLER

1шт.

31

570450R1

BEARING

IDLER SHAFT NEEDLE

1шт.

31

528105R91

BEARING, NEEDLE

IDLER SHAFT, OPTIONAL

1шт.

32

401727R1

PINION

GEAR, IDLER -24T

1шт.

33

66185C1

CLUTCH PLATE,98.55mm ID x 157.48mm OD x 3.05mm Thk

PISTON RETURN

1шт.

34

66182C1

SPRING

PISTON RETURN

6шт.

35

66186C91

PLATE ASSY.

CLUTCH BACKING, INCLUDES PINS

1шт.

20020R1

DOWEL,5/16" x 1"

6шт.

70695C1

DOWEL

PIN, OPTIONAL

6шт.

36

401720R1

CIRCLIP

BACKING PLATE

1шт.

37

401713R1

THRUST WASHER,52.48mm ID x 70.1mm OD x 1.82mm Thk

1шт.

38

66183C2

HUB ASSY.,45T

CLUTCH

1шт.

39

401756R1

SNAP RING,#206, 1.936", Ext

1шт.

40

533325R91

BEARING, NEEDLE

IPTO DRIVEN SHAFT

1шт.

40

538467R91

BEARING, NEEDLE

IPTO DRIVEN SHAFT

1шт.

41

66193C91

PACKAGE

CLUTCH PLATE, SERVICE, CONSISTS OF 5 DISCS, 8 PLATES, 1 O-RING 401723R1, 1 O-RING 401724R1, 6 SPRINGS 66182C1

1шт.

42

1500085C1

WASHER

1шт.

43

202307R1

SNAP RING,#206, Ext

1шт.

1093098R1

PRODUCT GRAPHIC

IPTO SPEED 540/1000, SYNCHROMESH DRIVE TRACTORS, NOT ILLUSTRATED

1шт.

1093100R1

PRODUCT GRAPHIC

SPARE PART IPTO SPEED 540/1000, HYDROSTATIC DRIVE TRACTORS, NOT ILLUSTRATED

1шт.

1093229R1

PRODUCT GRAPHIC

SPARE PART IPTO SPEED WARNING, AGRICULTURAL MACHINES, NOT ILLUSTRATED

1шт.

1093230R1

PRODUCT GRAPHIC

IPTO SPEED WARNING, INDUSTRIAL MACHINES, NOT ILLUSTRATED

1шт.
