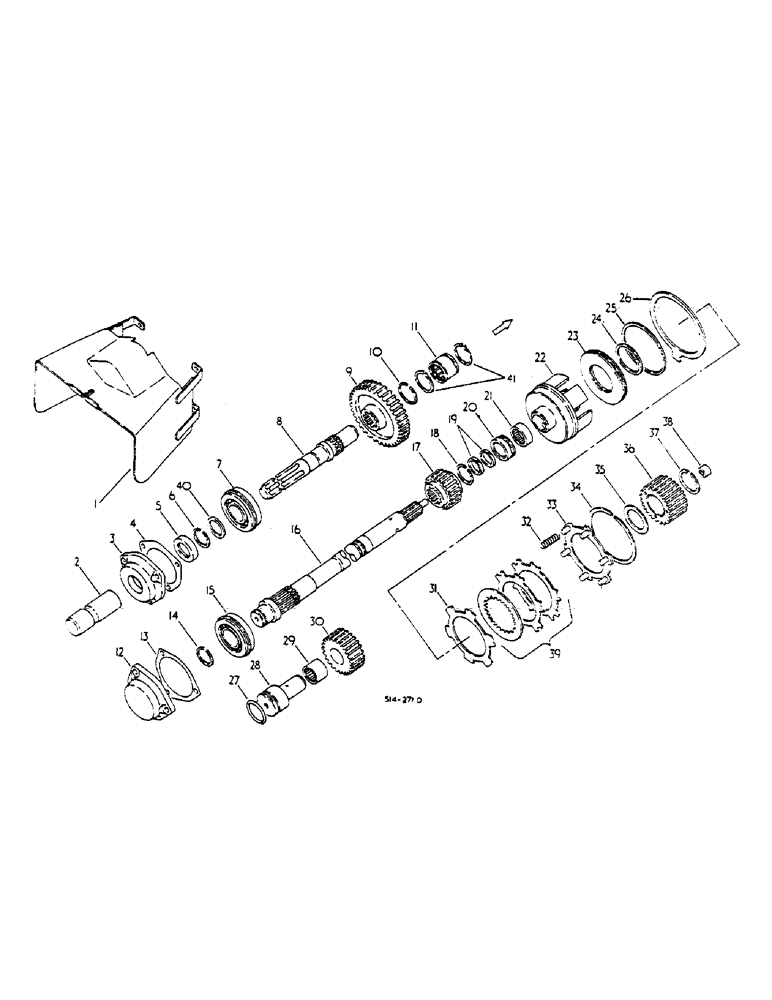

Запчасти Case IH HYDRO 84 (07-079) - INDEPENDENT POWER TAKE-OFF, SINGLE SPEED, UPPER OUTPUT SHAFT (04) - Drive Train

1

401734R1

GUARD ASSY.

ASSY, IPTO SAFTY

1шт.

SHIELD ASSY, IPTO SAFTY, TRACTORS W/HAND-OPERATED DRUM BRAKE, INCLUDES SCREWS

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

2

3054841R2

TUBE

ASSY, IPTO SHAFT PROTECTION

1шт.

3

401725R2

FLANGED BEARING

IPTO SHAFT BRG, UP TO 9153

1шт.

3

1500086C1

FLANGED BEARING

IPTO SHAFT BEARING, 9154 UP, INCLUDES SCREW

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

1шт.

4

399843R3

GASKET

SHAFT BRG RETAINER

1шт.

5

385766R91

OIL SEAL,38.1mm ID x 60.45mm OD x 8.13mm Thk

SHAFT

1шт.

6

607186R1

SNAP RING,#156, Ext

Brg

1шт.

7

171082R91

BALL BEARING,40 mm ID x 90 mm OD x 23 mm

SHAFT

1шт.

7

ST236

BEARING, BALL,40mm ID x 90mm OD x 23mm W

SHAFT

1шт.

7

533615R91

BALL BEARING

SHAFT

1шт.

7

71268C91

BALL BEARING

SHAFT

1шт.

7

67655C91

BALL BEARING

SHAFT

1шт.

7

85657H

BEARING, BALL

SHAFT BALL, OPTIONAL, USED W/UPPER DRIVE GEAR -36T

1шт.

7

ST250

BALL BEARING,40 mm ID x 90 mm OD x 23 mm

SHAFT BALL

1шт.

7

67650C91

BEARING, BALL,40 mm ID x 90 mm OD x 23 mm

SHAFT

1шт.

7

67649C91

BALL BEARING,40 mm ID x 90 mm OD x 23 mm

SHAFT BALL

1шт.

7

67648C91

BEARING

SHAFT BALL, OPTIONAL, USED W/UPPER DRIVE GEAR -38T

1шт.

8

3113017R1

SHAFT

UPPER OUTPUT, UP TO 9153

1шт.

8

1500087C1

SHAFT

UPPER OUTPUT, 9154 UP

1шт.

9

404237R1

PINION

GEAR, DRIVE -36T

1шт.

9

66192C1

GEAR

DRIVE -38T

1шт.

10

336000R1

SNAP RING,#175, 1.640", Ext

DRIVE GEAR RETAINER

1шт.

11

112821R91

NEEDLE BEARING

614 RPM SHAFT NEEDLE

1шт.

11

528103R91

BEARING, NEEDLE

614 RPM SHAFT, UP TO 9153, OPTIONAL

1шт.

11

1500088C91

NEEDLE BEARING,Needle, 38.14mm ID x 52.39mm OD x 35.56mm W

614 RPM SHAFT, CAGED, 9154 UP

1шт.

12

66191C1

FLANGED BEARING

IPTO BRG END, INCLUDES SCREWS

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3шт.

13

399843R3

GASKET

SHAFT BRG RETAINER

1шт.

14

607186R1

SNAP RING,#156, Ext

Brg

1шт.

15

171082R91

BALL BEARING,40 mm ID x 90 mm OD x 23 mm

SHAFT

1шт.

15

ST236

BEARING, BALL,40mm ID x 90mm OD x 23mm W

SHAFT

1шт.

15

533615R91

BALL BEARING

SHAFT

1шт.

15

71268C91

BALL BEARING

SHAFT

1шт.

15

67655C91

BALL BEARING

SHAFT

1шт.

15

85657H

BEARING, BALL

SHAFT, OPTIONAL, USED W/LOWER SHAFT DRIVE GEAR 22T

1шт.

15

ST250

BALL BEARING,40 mm ID x 90 mm OD x 23 mm

SHAFT BALL

1шт.

15

67650C91

BEARING, BALL,40 mm ID x 90 mm OD x 23 mm

SHAFT

1шт.

15

67649C91

BALL BEARING,40 mm ID x 90 mm OD x 23 mm

SHAFT BALL

1шт.

15

67648C91

BEARING

SHAFT BALL, OPTIONAL, USED W/LOWER SHAFT DRIVE GEAR -21

1шт.

16

66189C1

SHAFT ASSY.

IPTO DRIVING

1шт.

17

404232R1

GEAR

LOWER SHAFT DRIVE -21T

1шт.

17

404233R1

PINION

GEAR, LOWER SHAFT DRIVE -22T

1шт.

18

336000R1

SNAP RING,#175, 1.640", Ext

DRIVE GEAR RETAINER

1шт.

19

166972R1

RING

SHAFT SEALING

2шт.

20

401705R2

BUSHING,39.69mm ID x 50.86mm OD x 23.11mm L

LOWER SHAFT

1шт.

21

565232R91

BEARING, NEEDLE,Needle, 38.09mm ID x 47.64mm OD x 15.88mm W

SHAFT

1шт.

22

66068C1

GEAR

CLUTCH CUP -44T, W/SIDE DRIVE PTO

1шт.

22

3125149R1

CUP

CLUTCH, W/CUTSIDE DRIVE P.T.O., INCLUDES PIN

1шт.

617938R1

PIN,5/16" x 1 3/8", Coiled

1шт.

23

401722R1

PISTON

CLUTCH

1шт.

24

401723R1

O-RING,69.32mm ID x 76.22mm OD x 1.75mm Thk

PISTON SEAL, INNER

1шт.

25

401724R1

SEAL,0.551" ID x 0.07" Width

PISTON SEAL, OUTER

1шт.

26

404490R1

RING,140.25mm ID x 4.5mm Thk

IPTO BRAKE

1шт.

27

379964R1

O-RING 2-1/16 X 2-1/4 X 3/32

1шт.

28

401726R1

SHAFT

IPTO

1шт.

29

570450R91

NEEDLE BEARING

IDLER SHAFT NEEDLE

1шт.

29

528105R91

BEARING, NEEDLE

IDLER SHAFT, OPTIONAL

1шт.

30

401727R1

PINION

GEAR, IDLER -24T

1шт.

31

66185C1

CLUTCH PLATE,98.55mm ID x 157.48mm OD x 3.05mm Thk

PISTON RETURN

1шт.

32

66182C1

SPRING

PISTON RETURN

6шт.

33

66186C91

PLATE ASSY.

CLUTCH BACKING, INCLUDES PINS

1шт.

19555R1

PIN,5/16" x 1", Coiled

6шт.

34

401720R1

CIRCLIP

BACKING PLATE

1шт.

35

401713R1

THRUST WASHER,52.48mm ID x 70.1mm OD x 1.82mm Thk

1шт.

36

66183C2

HUB ASSY.,45T

WASHER, THRUST

1шт.

37

401756R1

SNAP RING,#206, 1.936", Ext

1шт.

38

533325R91

BEARING, NEEDLE

IPTO SHAFT

1шт.

38

538467R91

BEARING, NEEDLE

IPTO SHAFT, OPTIONAL

1шт.

39

66193C91

PACKAGE

CLUTCH PLATE, SERVICE, CONSISTS OF 5 DISCS, 8 PLATES, 1 O-RING 401723R1, 1 O-RING 401724R1, 6 SPRINGS 66182C1

1шт.

40

1500085C1

WASHER

1шт.

41

202307R1

SNAP RING,#206, Ext

1шт.

1093099R1

PRODUCT GRAPHIC

IPTO SPEED 540, SYNCHROMESH DRIVE TRACTOR, NOT ILLUSTRATED

1шт.

1093101R1

PRODUCT GRAPHIC

IPTO SPEED 540, HYDROSTATIC DRIVE TRACTORS, NOT ILLUSTRATED

1шт.
