Запчасти Case IH HYDRO 70 (08-01) - ELECTRICAL, BATTERY MOUNTING BASE AND COVER (06) - ELECTRICAL

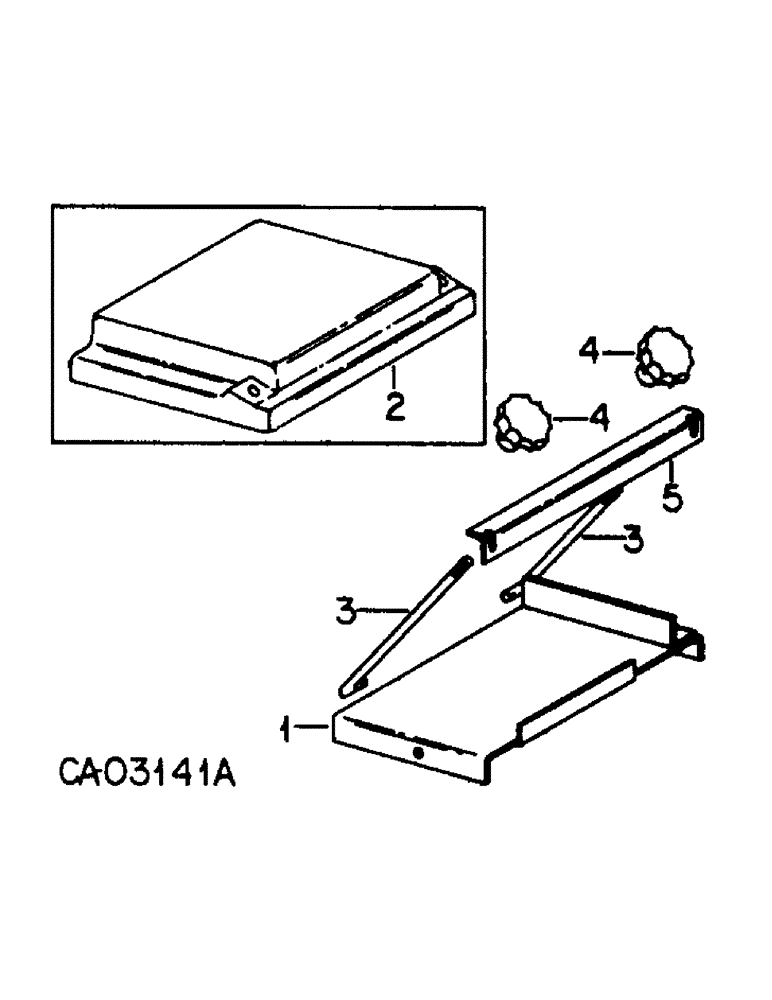

Схема запчастей Case IH HYDRO 70 - (08-01) - ELECTRICAL, BATTERY MOUNTING BASE AND COVER (06) - ELECTRICAL
4
2
4
3
1
5
3

Артикул

Название

Примечание

Количество

1

389017R11

BASE

ASSY, battery support, 666, 686 gear drive tractors, 666, 70 and 86 gasoline tractors with hydrostatic drive, 686 diesel gear drive tractors and 86 diesel tractors with hydrostatic drive and D-310 diesel engine

1шт.

1

400725R1

BASE

ASSY, battery support, 666 and 70 diesel tractors with hydrostatic drive, 86 diesel tractors with hydrostatic drive and D-312 diesel engine

1шт.

2

389014R1

COVER

battery, diesel tractors, w/D-312 engine

1шт.

3

389015R1

ROD

battery hold down side, diesel tractors

2шт.

4

388216R1

KNOB

battery cover hold down, diesel tractors w/D-312 engine

2шт.

5

130142C1

BRACKET

battery hold-down, diesel tractors w/D-310 engine

1шт.

120392

WASHER,1/4", SAE

.281 x .625 x .051

2шт.

129-409

WING NUT,1/4"-20

NUT, 1/4 wing

2шт.

Выбрано товаров: 8
