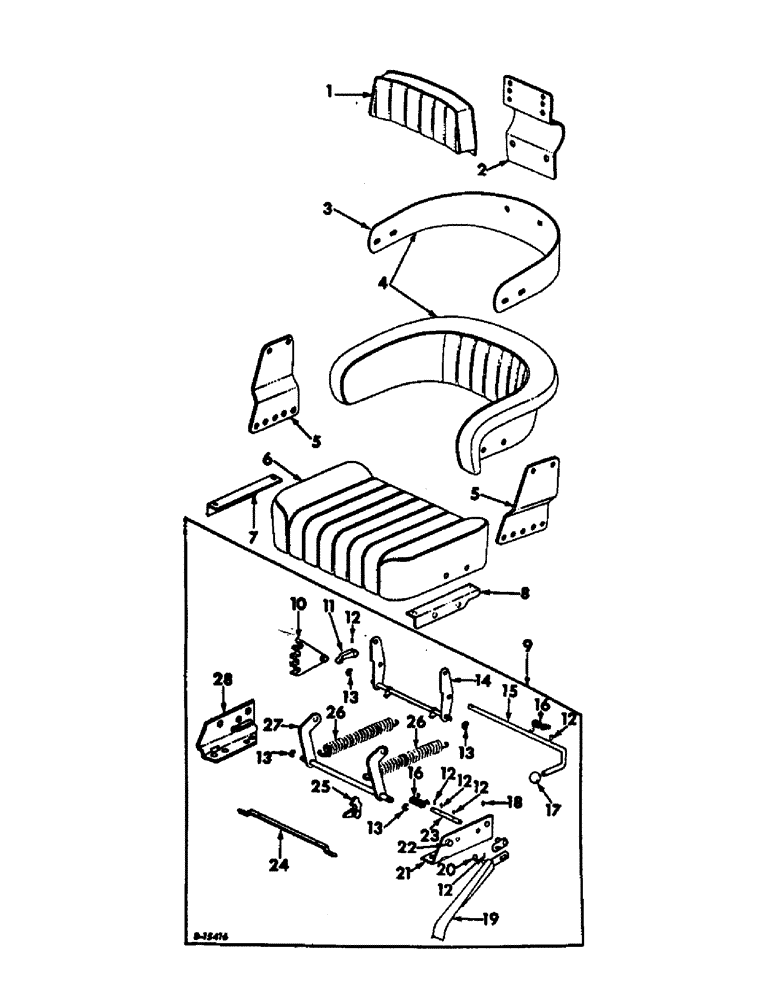

Запчасти Case IH HYDRO 70 (13-08) - SUPERSTRUCTURE, SEAT (05) - SUPERSTRUCTURE

1

387177R92

CUSHION ASSY.

CUSHION ASSY, upper back

1шт.

180075

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

SCREW, 5/16-18 x 5/8 znd hex-hd cap

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

2

387178R1

SUPPORT

upper back cushion

1шт.

180121

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

SCREW, 3/8-16 x 7/8 and hex-hd cap

2шт.

138542

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

2шт.

3

387175R1

LARGE PLATE

PLATE, cover

1шт.

260-1446

SELF-TAP SCREW,Cross Pan Hd, #8 x 3/8"

8-15 x 3/8 cr-rec pan-hd type A tapping

3шт.

4

387174R92

CUSHION ASSY.

CUSHION ASSY, back, 666 tractors, Serial Range: -16040

1шт.

4

387174R92

CUSHION ASSY.

CUSHION ASSY, back, 70 hydrostatic drive tractors, Serial Range: -10179

1шт.

5

387176R1

SUPPORT

back cushion, 666 tractors, Serial Range: -16040

2шт.

5

387176R1

SUPPORT

back cushion, 70 hydrostatic drive tractors, Serial Range: -10179

2шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 C-Z hex-hd cap

4шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

SCREW, 3/8-16 x 1-1/4 C-Z hex-hd cap

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

138542

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

4шт.

6

380680R94

CUSHION

ASSY, seat, 666 tractors, Serial Range: -16040

1шт.

6

380680R94

CUSHION

ASSY, seat, 70 hydrostatic drive, Serial Range: -10179

1шт.

7

404225R1

ANGLE ASSY, RH support, 666 tractors, Serial Range: -16040

1шт.

7

404225R1

ANGLE ASSY, RH support, 70 hydrostatic drive tractors, Serial Range: -10179

1шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16-18 x 1 znd hex-hd cap

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

8

404224R1

ANGLE ASSY, LH support, 666 tractors, Serial Range: -16040

1шт.

8

404224R1

ANGLE ASSY, LH support, 70 hydrostatic drive tractors, Serial Range: -10179

1шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16-18 x 1 znd hex-hd cap

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

9

397367R93

BASE

ASSY, adjustable seat

1шт.

379273R1

BOLT,Hex, 1/2" - 13 x 1.28"

BOLT, 1/2-13 x 9/32 shoulder

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

427586

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 8

SCREW, 5/16-18 x 1-1/4 znd hex-hd cap

8шт.

102214

WASHER

5/16 znd reg lock

8шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

10

380697R2

SECTOR

gear

1шт.

11

380702R1

PAWL

upper

1шт.

12

443148

GROOVED PIN,3/16" x 1", Type E

Pin, Grooved, 3/16" x 1", Type E

6шт.

13

373523R1

SNAP RING,#62, .480" Dia, E-Type

Ring, Retaining, #62, .480" Dia, E-Type

4шт.

14

383294R1

LEVER, rear

1шт.

15

400403R1

ROD

upper pawl release

1шт.

16

380699R1

SPRING

torsion

2шт.

17

206286R1

KNOB

plastic

1шт.

18

142488

GROOVED PIN,1/8" x 1", Type A

Pin, Grooved, 1/8" x 1", Type A

1шт.

19

388318R91

RELEASE ASSY, foot

1шт.

NLS

NO LONGER SERVICED

7/16 x 1 x .083 C-Z

1шт.

20

380704R1

WASHER, spring valve

1шт.

21

388316R92

SUPPORT

ASSY, LH side

1шт.

22

384780R1

BEARING

LH side support

1шт.

23

380698R2

SHAFT

lower pawl

1шт.

24

388319R1

STRAP, main spring mounting

1шт.

25

380700R1

PAWL

lower

1шт.

26

383296R1

VALVE SPRING

SPRING, linkage main

2шт.

27

380694R1

LEVER

front

1шт.

28

388317R92

SUPPORT ASSY, RH side

1шт.
