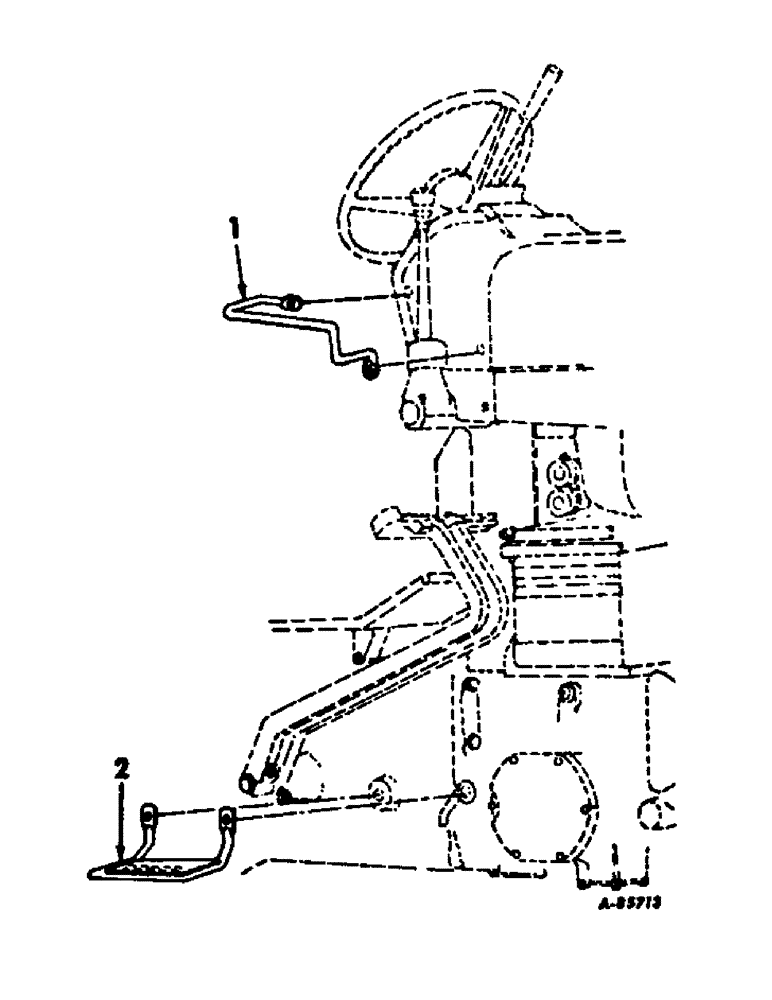

Запчасти Case IH HYDRO 70 (13-05) - SUPERSTRUCTURE, RH SIDE OPERATOR MOUNTING STEP AND HANDLE (05) - SUPERSTRUCTURE

1

394939R1

HANDLE

operator mounting assist

1шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16-18 x 2 C-Z hex-hd cap

1шт.

180081

BOLT,Hex, 5/16"-18 x 1 1/4", G5

5/16"-18 x 1-1/4" C-Z hex-hd cap

1шт.

2

399033R1

STEP ASSY, RH mounting, 666, 70 and 86 hydrostatic drive tractors

1шт.

2

397134R1

STEP ASSY, RH mounting, 666 gear drive tractors

1шт.

2

395491R1

STEP ASSY, mounting, hi-clear tractors, gear driven tractors

1шт.

2

401844R1

STEP ASSY, mounting, hi-clear tractors, hydrostatic driven tractors

1шт.

413-1260

BOLT,Hex, 3/4" - 10 x 3-3/4", Gr 5

SCREW, 3/4-10 x 3-3/4 hex-hd cap

2шт.

65707C1

SPACER

mounting step

2шт.
