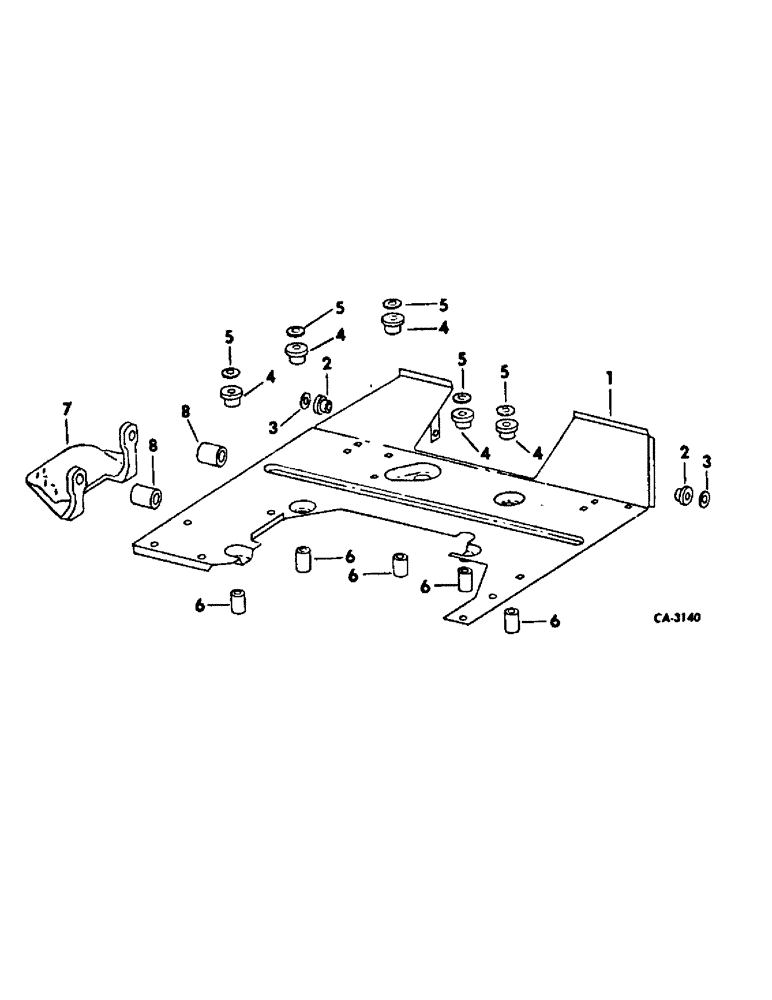

Запчасти Case IH HYDRO 70 (13-04) - SUPERSTRUCTURE, PLATFORM AND OPERATORS AREA (05) - SUPERSTRUCTURE

1

65709C2

PLATFORM ASSY, rear frame

1шт.

2

536629R1

BUSHING,10.03mm ID x 19.81mm OD x 18.29mm L

platform side isomount

2шт.

3

65713C1

WASHER

platform side isomount

2шт.

179820

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 5

2шт.

4

65714C1

BUSHING,11.86mm ID x 26.16mm OD x 18.03mm L

platform isomount

5шт.

5

65715C1

WASHER, platform isomount

5шт.

179874

BOLT,Hex, 7/16" - 14 x 4", Gr 5

5шт.

6

S3780

SPACER,3/8" Pipe x 1 3/4"

.675 x .493 x 1.750, Rear frame platform

5шт.

7

397133R1

STEP

LH mounting, 666 and 686 gear drive tractors

1шт.

7

399032R1

STEP, mounting LH, 666, 70 and 86 hydrostatic drive tractors

1шт.

8

65707C1

SPACER

mtg step

2шт.

413-1260

BOLT,Hex, 3/4" - 10 x 3-3/4", Gr 5

SCREW, 3/4-10 x 3-3/4 hex-hd cap

2шт.
