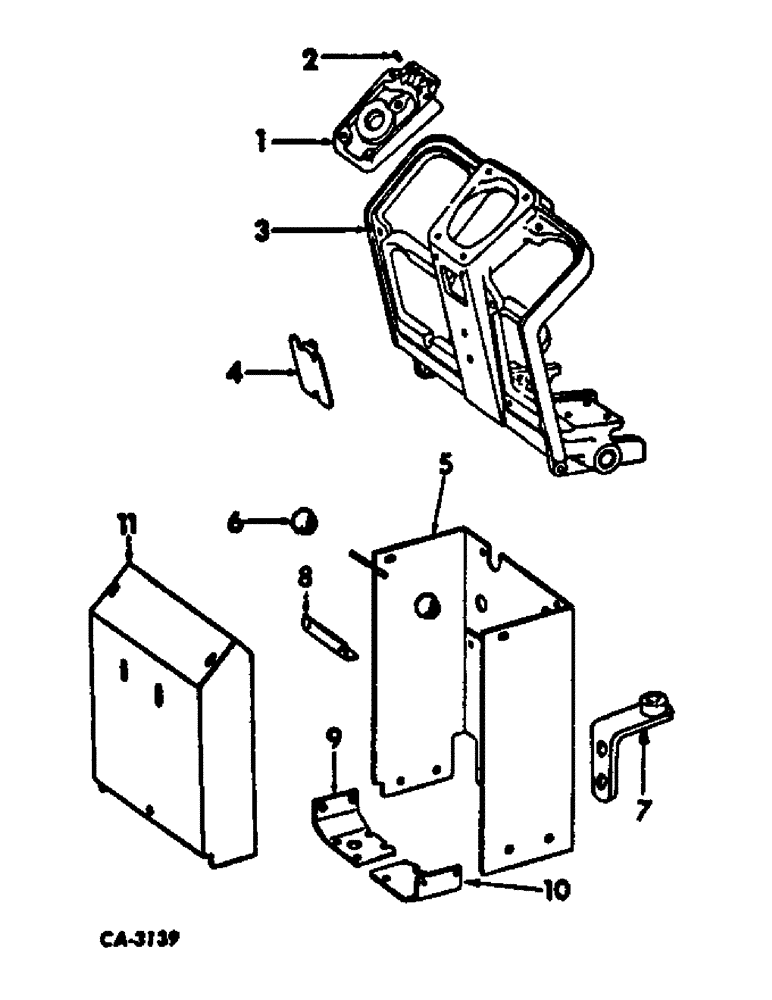

Запчасти Case IH HYDRO 70 (13-01) - SUPERSTRUCTURE, STEERING SUPPORTS AND HOUSING (05) - SUPERSTRUCTURE

1

398276R1

COVER, steering support

1шт.

21327R1

SCREW

5/16-18 x 1-1/4 znd hex-soc-hd cap

4шт.

2

385528R1

PIN

3/16 x 1/2 cdp dowel, diesel tractors

1шт.

3

388213R3

SUPPORT

steering, 666 and 686 gear drive tractors

1шт.

3

398771R2

SUPPORT, steering, 666, 70 and 86 hydrostatic drive tractors

1шт.

80722

LUBE NIPPLE,3/16" x .55" lg, Drive

FITTING, 1/8-27 ptf str lub, diesel tractors

1шт.

80722

LUBE NIPPLE,3/16" x .55" lg, Drive

FITTING, 1/8-27 ptf str lub, gasoline tractors

2шт.

4

384429R1

COVER, steering support rear opening, gasoline tractors

1шт.

181561

BOLT,Hex, 1/4" - 28 x 1/2", Gr 5

SCREW, 1/4-28 x 1/2 hex-hd cap

1шт.

354825R1

WASHER

steering support rear opening cover

1шт.

5

530265R1

SUPPORT ASSY, steering lower, 666, 70 and 86 hydrostatic tractors

1шт.

179814

SPACER

2шт.

5

530267R1

SUPPORT ASSY, steering lower, 666 and 86 gear drive tractors

1шт.

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

2шт.

6

388216R1

KNOB

battery cover and hold down

2шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex-hd cap

2шт.

7

394144R11

SUPPORT ASSY, gov control lower

1шт.

393640R1

CLIP, spring anchor, gasoline tractors

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

8

388220R11

BRACKET

ASSY, battery hold down

1шт.

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

2шт.

9

533311R11

BRACKET ASY, steering support LH, 666 and 686 gear drive tractors

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

SCREW, 3/8-16 x 1-1/8 hex-hd cap

4шт.

9

397073R1

BASE ASSY, steering support LH, 666, 70 and 86 hydrostatic drive tractors

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex-hd cap

3шт.

10

533312R11

BASE ASSY, steering support RH, 666 and 686 gear drive tractors

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

SCREW, 3/8-16 x 1-1/8 hex-hd cap

4шт.

10

397075R1

BASE ASSY, steering support RH, 666, 70 and 86 hydrostatic drive tractors

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex-hd cap

2шт.

11

538585R2

COVER ASSY

COVER W/PRODUCT GRAPHIC, battery hsg

1шт.

64520C1

PRODUCT GRAPHIC

caution instruction

1шт.
