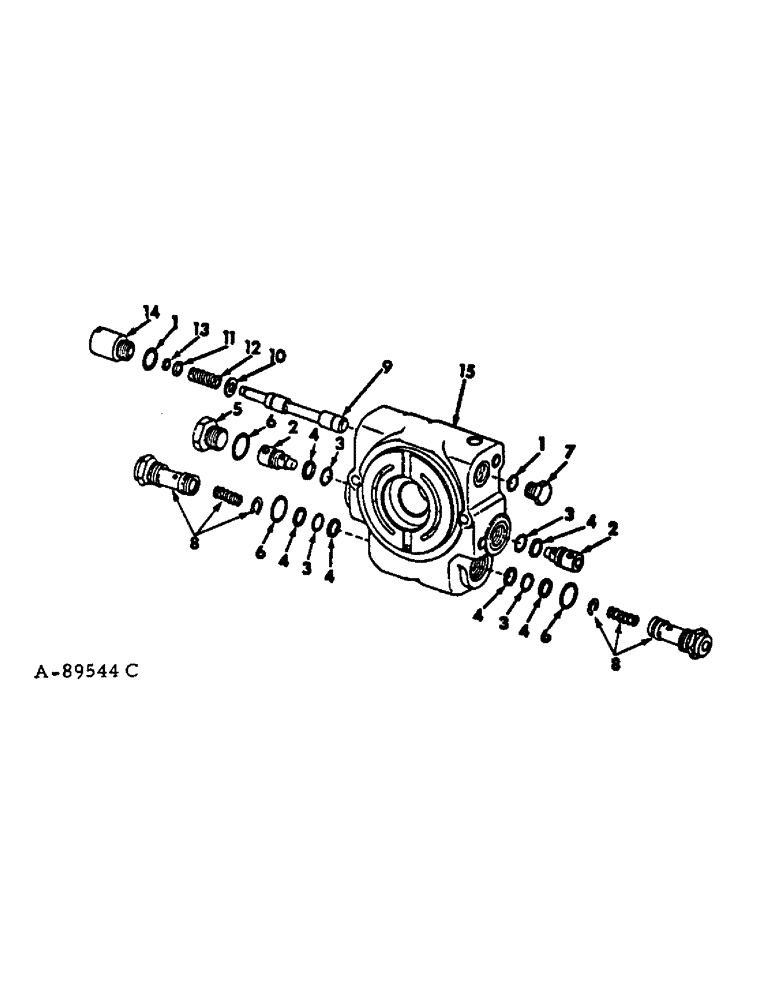

Запчасти Case IH HYDRO 70 (07-22) - DRIVE TRAIN, CENTER SECTION BODY AND RELATED PARTS, 666, 70 AND 86 HYDROSTATIC DRIVE TRACTORS (04) - Drive Train

1

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

3/4 OD tube, shuttle valve retaining plugs

2шт.

2

396068R1

VALVE

check

2шт.

3

20947R1

O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro

13/16 x 1 x 3/32

4шт.

4

393887R1

BACK-UP RING

RING, back-up

6шт.

5

9410362

PLUG,Hex Hd, 1 3/16"-12 ORB

1-3/16-12 str thd o-ring boss

1шт.

6

297459R1

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

7/8 OD tube

3шт.

7

405512R1

PLUG

shuttle valve

1шт.

8

531770R2

VALVE, PRESSURE RELI

VALVE ASSY, relief

2шт.

9

406379R1

VALVE

center section shuttle, Code A

1шт.

9

406380R1

VALVE

center section shuttle, Code B

1шт.

9

406381R1

VALVE

center section shuttle, Code C

1шт.

9

406382R1

VALVE

center section shuttle, Code D

1шт.

9

406383R1

VALVE

center section shuttle, Code E

1шт.

9

406384R1

VALVE

center section shuttle. Code F

1шт.

10

396063R2

WASHER

shuttle valve inner

1шт.

11

396064R2

WASHER

shuttle valve outer

1шт.

12

531079R1

SPRING

shuttle valve centering

1шт.

13

396066R1

SNAP RING,#46, .433", Ext

RING, shuttle valve snap

1шт.

14

396067R1

PLUG

shuttle valve retainer

1шт.

15

396060R94

BODY ASSY, center section, Composed of ref nos 1, 7 and 9 through 14

1шт.

399257R1

SCREW, 1/2-13 x 3-3/4 hex-hd cap

2шт.

393885R91

GASKET KIT

PACKAGE, relief valve seal, Consists of

1шт.

20947R1

O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro

1шт.

297459R1

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

1шт.

393887R1

BACK-UP RING

RING

2шт.
