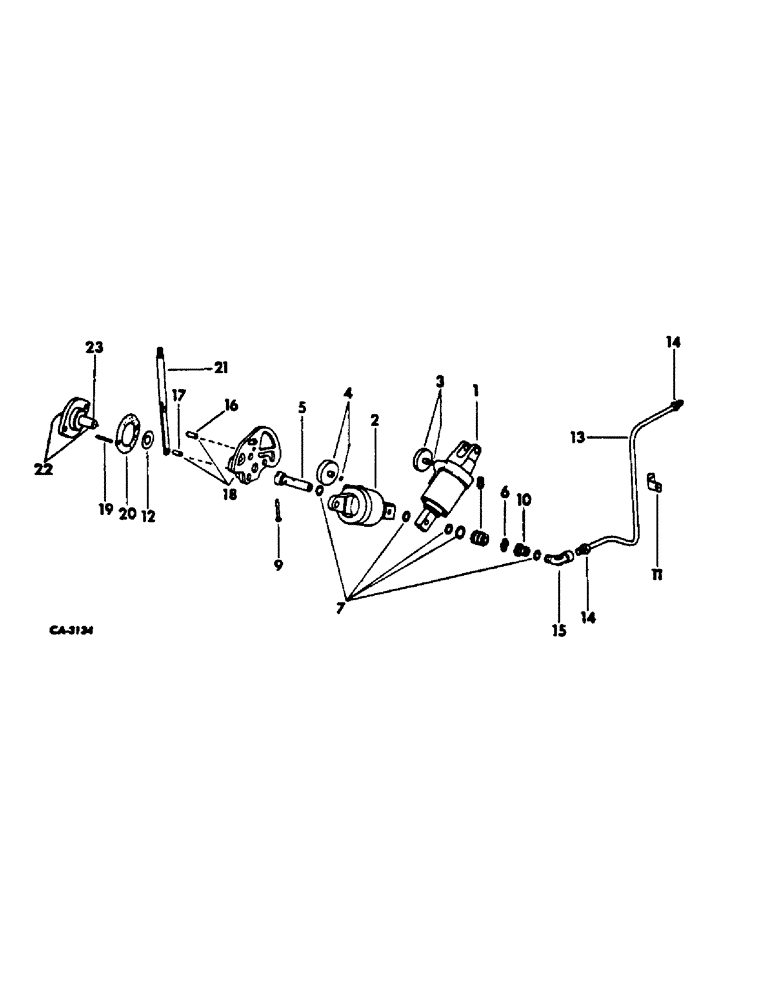

Запчасти Case IH HYDRO 70 (07-20) - DRIVE TRAIN, PUMP SERVO, MOTOR SERVO AND CONTROL CAM, 666, 70 AND 86 HYDROSTATIC DRIVE TRACTORS (04) - Drive Train

1

CYLINDER ASSY, pump servo, for component details refer to pump servo listing

1шт.

2

CYLINDER ASSY, motor servo, for component details refer motor servo listing

1шт.

3

397470R94

VALVE

PLUG W/RING, pump orifice, service items are washer/403989R1 and ring/396109R1

1шт.

396118R1

BOLT,Shldr, Hex, 7/16" - 14 x 2.83"

hex-hd shoulder

1шт.

4

396117R31

PLUG

W/RING, motor orifice, service item is ring/396109R1

1шт.

396119R1

BOLT,Shldr, Hex, 1/2" - 13 x 2.38"

hex-hd shoulder

1шт.

5

396120R1

SHAFT

control cyl anchor

1шт.

6

396121R1

SPRING WASHER

wavy spring

1шт.

7

400732R91

STRIPPER PACKAGE

PACKAGE, anchor shaft seal service, Consists of

1шт.

RING (NSS)

3шт.

RING (NSS)

1шт.

O-RING (NSS)

1шт.

8

396162R1

BUSHING

anchor shaft motor support

1шт.

9

22773R1

PIN

1/4 x 2-3/16 rod end, control cyl anchor shaft retaining

1шт.

10

396124R1

FITTING

servo charge tube

1шт.

11

396125R1

CLIP

servo pressure tube retaining

1шт.

12

535050R1

SPACER

cam pivot shaft

1шт.

13

396126R1

TUBE

PIPE, servo charge

1шт.

14

222-503

TUBE NUT,1/2"-20

NUT, 1/2-20 hi-duty tube fitting

2шт.

15

36391D

ELBOW,90 Degree x 1/4" NPT x 1/2"-20

1/2-20 hi-duty tube fitting male pipe

1шт.

16

20138R1

PIN

3/8 x 1-1/4 dowel

1шт.

17

20020R1

DOWEL,5/16" x 1"

PIN, 5/16 x 1 dowel

1шт.

18

65351C1

CAM

ASSY, control

1шт.

19

20262R1

PIN, 3/8 x 2-3/4 dowel control cam stop 3/8" x 2 3/4"

1шт.

20

396796R1

GASKET

cam actuating shaft housing

1шт.

179818

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

382331R1

SEALING WASHER,8.33mm ID x 12.7mm OD x 0.79mm Thk

sealing

2шт.

21

396798R21

ROD

ASSY, cam actuating

1шт.

22

123059C91

HUB CAP

HOUSING ASSY, cam pivot shaft

1шт.

123106C1

WASHER

cam spacer

1шт.

23

19969R1

DOWEL,3/4" x 2 1/4"

PIN, 3/4 x 2-1/4 dowel

1шт.
