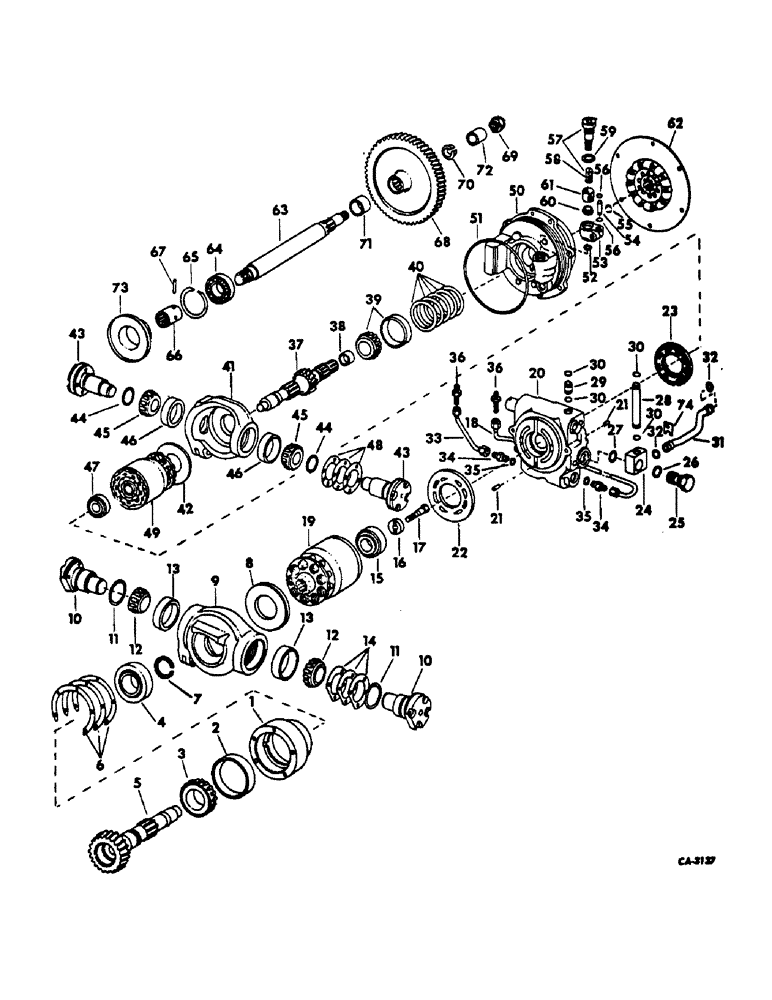

Запчасти Case IH HYDRO 70 (07-17) - DRIVE TRAIN, HYDROSTATIC DR. GEARS, SHAFTS, BEARINGS, MOTOR, PUMP, CENTER SECTION, TUBES & CONNECT. (04) - Drive Train

1

396043R1

HOUSING, output shaft rear brg

1шт.

206790H1

SCREW

3/8-16 x 2-1/4 hex-soc-hd cap

5шт.

2

22396V

BEARING, CUP,112.739mm OD x 30.37mm W

CUP, output shaft rear large brg, optional w/252514R1

1шт.

2

252514R1

BEARING

CUP, output shaft rear large brg, optional w/22396V

1шт.

3

22397V

BEARING ASSY

CONE, output shaft rear large brg, 22396V

1шт.

3

335554C91

CONE

output shaft rear large brg, for use w/cup 252514R1

1шт.

4

396046R91

BEARING ASSY,2.0005" ID x 4.126" OD x 1.1945, 0.9375"

BEARING ASSY, output shaft rear, small

1шт.

5

396045R2

SHAFT, output

1шт.

6

400668R91

PACKAGE

output shaft bearing housing shim service

1шт.

SHIMS, .005 (NSS)

3шт.

SHIMS, .007 (NSS)

3шт.

SHIMS, .020 (NSS)

1шт.

7

396151R1

RING

output shaft brg retaining, .156

1шт.

7

396152R1

RING

output shaft brg retaining, .159

1шт.

7

396153R1

RING

output shaft brg retaining, .162

1шт.

7

396154R1

RING

output shaft brg retaining, .165

1шт.

7

396155R1

RING

output shaft brg retaining, .168

1шт.

7

396156R1

RING

output shaft brg retaining, .171

1шт.

7

396157R1

RING

output shaft brg retaining, .174

1шт.

7

396158R1

RING

output shaft brg retaining, .177

1шт.

7

396159R1

RING

output shaft brg retaining, .180

1шт.

7

396160R1

RING

output shaft brg retaining, .183

1шт.

7

396161R1

RING, output shaft brg retaining, .186

1шт.

8

397501R3

LARGE PLATE

PLATE, thrust

1шт.

9

396052R1

HOUSING, motor swashplate

1шт.

10

396053R1

PIVOT, motor swashplate housing

2шт.

NLS

NO LONGER SERVICED

8шт.

11

379961R1

O-RING,0.103" Thk x 2.05" ID, -137, Cl 5, 75 Duro

2-1/16 x 2-1/4 x 3/32, motor swashplate housing pivot

2шт.

12

ST2005A

ROLLER BEARING,44.45mm ID x 30.94mm W

CONE, housing pivot brg

2шт.

13

ST954

BEARING, CUP,1.7505" ID x 3.4385" OD x 1.2015"

CUP, hsg pivot brg

2шт.

14

400669R91

PACKAGE

motor pivot shim service

1шт.

15

396057R91

BEARING ASSY,1.3125" ID x 2.875" OD x 0.9375, 0.75"

ASSY, output shaft front, Do not substitute for this select fit assy for service

1шт.

16

396058R1

LOCK WASHER

output shaft brg lock

1шт.

17

389259R1

BOLT,Hex, 1/2" - 20 x 1.84", Gr 4

SCREW, brg lockwasher

1шт.

18

396079R1

TUBE

ASSY, reverse pressure

1шт.

19

KIT, motor cylinder block, for complete details refer to motor cylinder block listing

1шт.

20

BODY ASSY, center section w/valves, for complete details refer to center section body listing

1шт.

399257R1

BOLT, 1/2-13 x 3-3/4 hex-hd

2шт.

21

394825R1

DOWEL

PIN, center section dowel

2шт.

22

530774R1

PLATE ASSY.

PLATE, valve

1шт.

23

530769R1

PLATE

valve RH

1шт.

24

396073R1

TEE

BLOCK, charge tube connector

1шт.

25

396074R1

PLUG

charge line

1шт.

26

343900R1

O-RING,1.051" ID x 0.07" Width

1-1/16 x 1-3/16 x 1/16, charge line plug sealing

1шт.

27

379794R1

O-RING,0.103" Thk x 1.237" ID, -124, Cl 5, 75 Duro

1-1/4 x 1-7/16 x 3/32

1шт.

28

396075R1

BUSHING

center section pressure by-pass

1шт.

29

396076R1

BUSHING, center section exhaust

1шт.

30

392385R1

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

-016, 90 Duro, .614" ID x .070" Thk, Center section bushing seal

4шт.

31

396423R1

TUBE

ASSY, center section charge

1шт.

32

384943R1

O-RING,0.739" ID x 0.07" Width

3/4 x 7/8 x 1/16, charge tube assy

2шт.

33

396424R1

TUBE

ASSY, forward pressure

1шт.

34

404283R1

HYD CONNECTOR,7/16" - 20 ORB x 7/16" - 20 ORB

7/16-20 37 deg hyd flared, tube to relief valve

2шт.

36

9403252

FITTING,Blkhd, 7/16"-20, 37 Degree x 7/16"-20, 37 Degree

UNION, 7/16-20 37 deg bulkhead, flared tube to drive housing

2шт.

37

396081R11

SHAFT

ASSY, input

1шт.

38

606676C1

BUSHING

SLEEVE, seal wear

1шт.

39

401551R91

BEARING ASSY,41.27mm ID x 76.22mm OD x 23.02mm W

ASSY, input shaft, Do not substitute

1шт.

40

400731R91

SHIM KIT

PACKAGE, input shaft brg shim service, Consists of

1шт.

SHIM, .005 (NSS)

5шт.

SHIM, .007 (NSS)

5шт.

SHIM, .020 (NSS)

5шт.

41

396087R1

HOUSING, pump swashplate

1шт.

42

394186R3

PLATE

thrust

1шт.

43

396088R1

TRUNNION

PIVOT, pump swashplate housing

2шт.

NLS

NO LONGER SERVICED

8шт.

44

328138R1

O-RING,0.103" Thk x 1.612" ID, -130, Cl 5, 75 Duro

1-5/8 x 1-13/16 x 3/32, pivot sealing LH

2шт.

45

560953R91

BEARING ASSY,1.375" ID x 2.875" OD x 0.9688"

BEARING ASSY, pivot cone

2шт.

46

560954R1

BEARING ASSY,1.37525" ID x 2.8755" OD x 0.9688"

pivot cup

2шт.

47

396089R91

BEARING ASSY,25.4mm ID x 59.53mm OD x 23.37mm W

ASSY, pump rear

1шт.

48

400730R91

SHIM

PACKAGE, pump pivot shim service, Consists of

1шт.

SHIM, .005 (NSS)

3шт.

SHIM, .007 (NSS)

3шт.

SHIM, .020 (NSS)

1шт.

49

KIT, pump cylinder block, for component details refer to pump cylinder block listing

1шт.

50

396094R91

PUMP

transmission charge, optional w/66453C91, for component details refer to charge pump listing

1шт.

66453C91R

REMAN-HYD PUMP

666 (1/72-12/72), HYDRO 70, HYDRO 86, Both (1/74-12/77), Reman for New P/N 396094R91

1шт.

66453C91C

CORE-HYDRAULIC PUMP

Return Number

1шт.

50

66453C91

PUMP

transmission charge, optional w/396094R91, for component details refer to charge pump listing

1шт.

66453C91R

REMAN-HYD PUMP

666 (1/72-12/72), HYDRO 70, HYDRO 86, Both (1/74-12/77)

1шт.

66453C91C

CORE-HYDRAULIC PUMP

Return Number

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3/8-16 x 7/8 hex-hd cap

5шт.

51

610413C1

O-RING,0.139" Thk x 7.73" ID, -265, Cl 5, 75 Duro

7-3/4 x 8 x 1/8, transmission charge pump

1шт.

52

388591R1

RING

valve housing sealing

1шт.

53

403798R1

HOUSING, regulator

1шт.

54

403781R2

PRESSURE PIPE

PIPE, pressure check

1шт.

55

896045R1

SNAP RING,#37, Ext

Pressure check pipe #37, Ext

1шт.

56

384937R1

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

1/4 x 3/8 x 1/16

2шт.

57

529486R91

VALVE

ASSY, pressure regulator

1шт.

58

529487R1

STRAINER ELEMENT

STRAINER, regulator valve

1шт.

59

297459R1

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

7/8 OD tube

1шт.

60

379181R1

O-RING,0.614" ID x 0.07" Width

5/8 x 3/4 x 1/16

1шт.

61

396100R1

STRAINER ELEMENT

SCREEN, regulator valve strainer

1шт.

62

532249R91

CLUTCH ASSEMBLY

PACKAGE, drive plate assy service, Consists of

1шт.

PLATE (NSS)

1шт.

SPLINE LUBRICANT (NSS)

1шт.

26306R1

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

SCREW

6шт.

615890C1

WASHER

6шт.

63

65011C1

SHAFT

independent PTO driven

1шт.

64

ST205A

BEARING, BALL,35 mm ID x 72 mm OD x 17 mm

BEARING, independent PTO driven shaft

1шт.

65

377911R1

RING, SNAP

RING, brg retainer

1шт.

66

395358R1

COUPLING

drive shaft front

1шт.

67

553050R1

LOCK PIN,1/4" x 1 3/4", Slotted

Pin, 1/4" x 1 3/4", Slotted

1шт.

68

389537R1

GEAR

independent PTO driven, 81T

1шт.

69

19256R1

LOCK NUT,1"-14, G5

NUT, 1-14 Esna stop

1шт.

70

65014C1

RING

independent PTO gear wedge

1шт.

71

65013C1

SPACER

independent PTO driven gear

1шт.

72

396145R1

BEARING, NEEDLE

BEARING, inner race

1шт.

73

398914R1

SEAL

SEAL, drive housing oil

1шт.

74

397504R1

BAR

charge tube retaining clip

1шт.

181330

SCREW, 5/16-24 x 7/16 hex-hd cap

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

35

369751R1

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk, 1/4 OD tube, Flared tube to relief valve

2шт.
