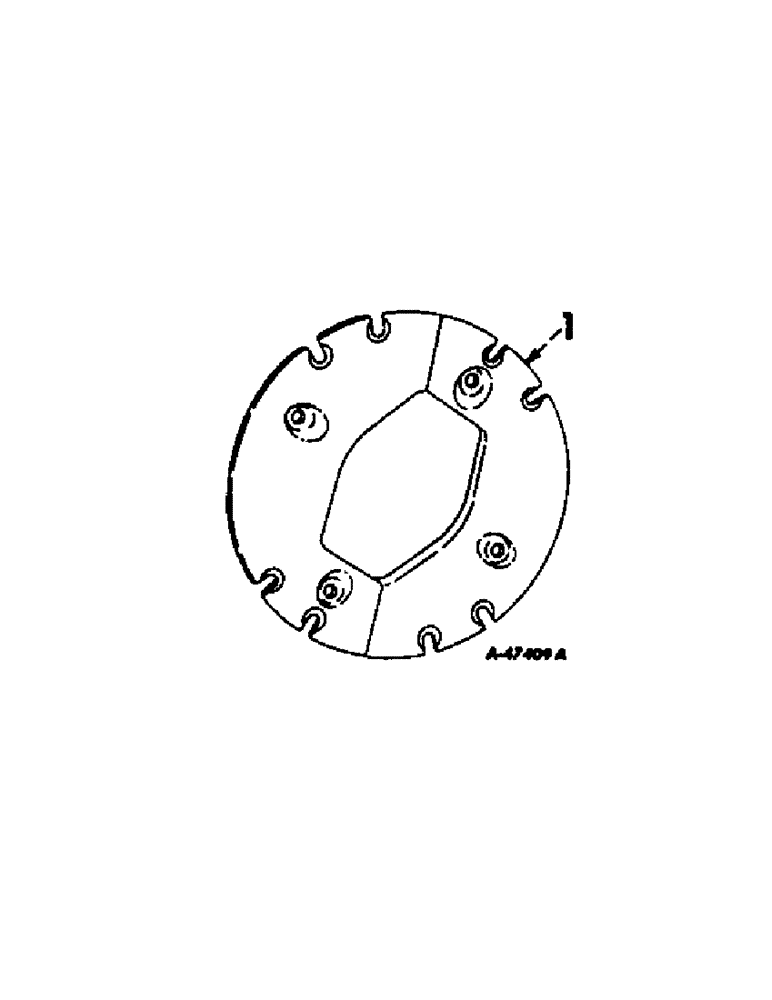

Запчасти Case IH HYDRO 70 (15-06[A]) - WHEELS AND TRACTION, REAR WEIGHTS, SPLIT TYPE FOR CAST TYPE REAR WHEELS Wheels & Traction

1

400078R2

WEIGHT

rear wheel-half, approx 75 lbs, 4 for first set

4шт.

375116R1

BOLT,3/4" - 10 x 4"

rear wheel weight

8шт.

280954

NUT,3/4"-10, G5

8шт.

426897

JAM NUT,Jam, 3/4"-10, G5

3/4-10 C-Z hex jam

8шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

8шт.

1

400078R2

WEIGHT

rear wheel-half, approx 75 lbs, 4 for second or third set

4шт.

366111R1

BOLT,Sq Hd, 3/4" - 10 x 3 1/4"

rear wheel weight

8шт.

426897

JAM NUT,Jam, 3/4"-10, G5

3/4-10 C-Z hex jam

8шт.

366112R1

WASHER

rear wheel weight bolt

16шт.

280954

NUT,3/4"-10, G5

8шт.
