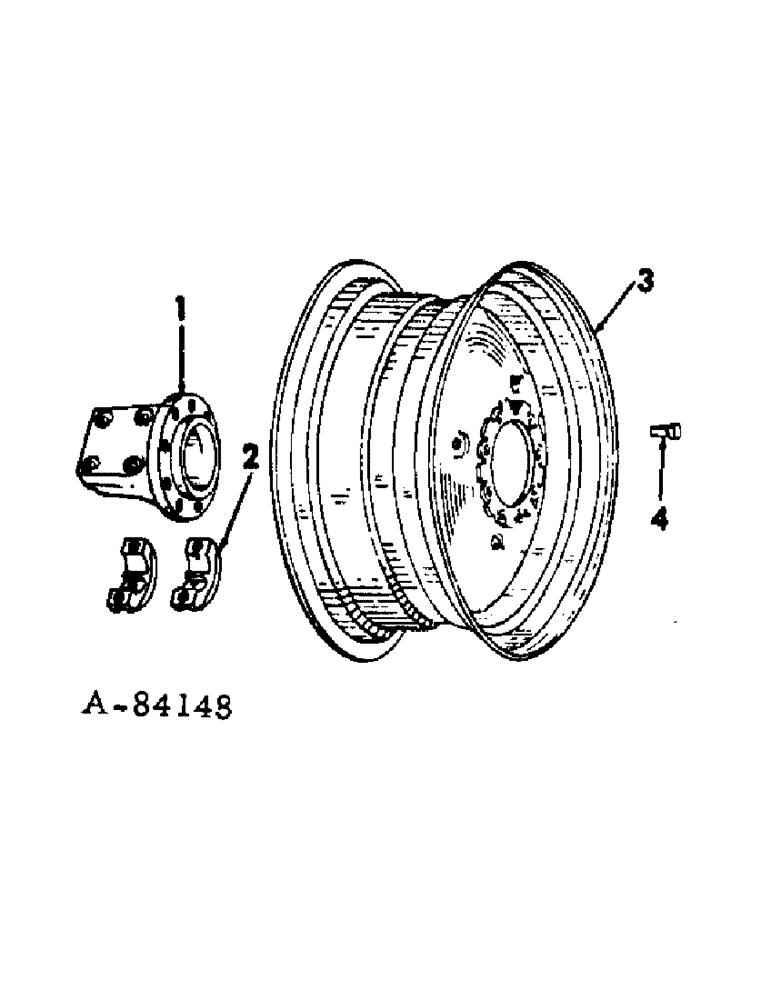

Запчасти Case IH HYDRO 70 (15-05) - WHEELS AND TRACTION, DUAL REAR WHEELS Wheels & Traction

ATTACHMENT, rear wheels for dualing, W12-38 rim, Consists of

2шт.

391004R1

BOLT,Hex, 5/8"

BOLT

18шт.

389539R1

CLAMP

4шт.

391279R1

HUB

2шт.

375463R1

SCREW,Hex, 7/8" - 14 x 4 3/4"

8шт.

387924R92

WHEEL

2шт.

397247R91

PARTS ACCESSORY, outer dual rear wheel, W12-38 for 13.6-38 or 14.9-38 tire, 2 required per tractor, Consists of

2шт.

391004R1

BOLT,Hex, 5/8"

BOLT

9шт.

389539R1

CLAMP

2шт.

391279R1

HUB

1шт.

375463R1

SCREW,Hex, 7/8" - 14 x 4 3/4"

4шт.

387924R92

WHEEL

1шт.

ATTACHMENT, rear wheels for dualing, W14L-38 rim, Consists of

2шт.

391004R1

BOLT,Hex, 5/8"

BOLT

18шт.

389539R1

CLAMP

4шт.

391279R1

HUB

2шт.

375463R1

SCREW,Hex, 7/8" - 14 x 4 3/4"

8шт.

387923R92

RIM

WHEEL

2шт.

397248R91

PARTS ACCESSORY, outer dual rear wheel, W14L-38 for 15.5-38 tire 2 required per tractor, Consists of

2шт.

Also order two axles, 389249R2.

1шт.

391004R1

BOLT,Hex, 5/8"

BOLT

9шт.

389539R1

CLAMP

2шт.

391279R1

HUB

1шт.

375463R1

SCREW,Hex, 7/8" - 14 x 4 3/4"

4шт.

387923R92

RIM

WHEEL

1шт.

ATTACHMENT, rear wheels for dualing, DW16-34 rim, Consists of

2шт.

391004R1

BOLT,Hex, 5/8"

BOLT

18шт.

389539R1

CLAMP

4шт.

391279R1

HUB

2шт.

375463R1

SCREW,Hex, 7/8" - 14 x 4 3/4"

8шт.

536298R1

RIM

WHEEL

2шт.

397249R91

PARTS ACCESSORY, outer dual rear wheel, DW16-34 for 18.4-34 tire 2 required per tractor, Consists of

2шт.

Also order two axles, 389249R2.

1шт.

391004R1

BOLT,Hex, 5/8"

BOLT

9шт.

389539R1

CLAMP

2шт.

391279R1

HUB

1шт.

375463R1

SCREW,Hex, 7/8" - 14 x 4 3/4"

4шт.

536298R1

RIM

WHEEL

1шт.

ATTACHMENT, rear wheels for dualing, DW14-34 rim, Consists of

2шт.

391004R1

BOLT,Hex, 5/8"

BOLT

18шт.

389539R1

CLAMP

4шт.

391279R1

HUB

2шт.

375463R1

SCREW,Hex, 7/8" - 14 x 4 3/4"

8шт.

375111R91

WHEEL

2шт.

1

391279R1

HUB, rear wheel

2шт.

2

389539R1

CLAMP

rear wheel hub

4шт.

375463R1

SCREW,Hex, 7/8" - 14 x 4 3/4"

7/8-14 x 4-3/4 hex-hd cap

8шт.

3

387924R92

WHEEL

ASSY, disc type rear, W12-38 rim for 13.6-38 or 14.9-38 tire

2шт.

3

387923R92

RIM

WHEEL ASSY, disc type rear, W14L-38 rim for 15.5-38 tire

2шт.

3

536298R1

RIM

WHEEL ASSY, disc type rear, DW16-34 rim for 16.9-34 tire

2шт.

3

375111R91

WHEEL ASSY, disc type rear, DW14-34 rim for 16.9-34 or 18.4-34 tire

2шт.

4

391004R1

BOLT,Hex, 5/8"

BOLT, rear wheel mounting

18шт.
