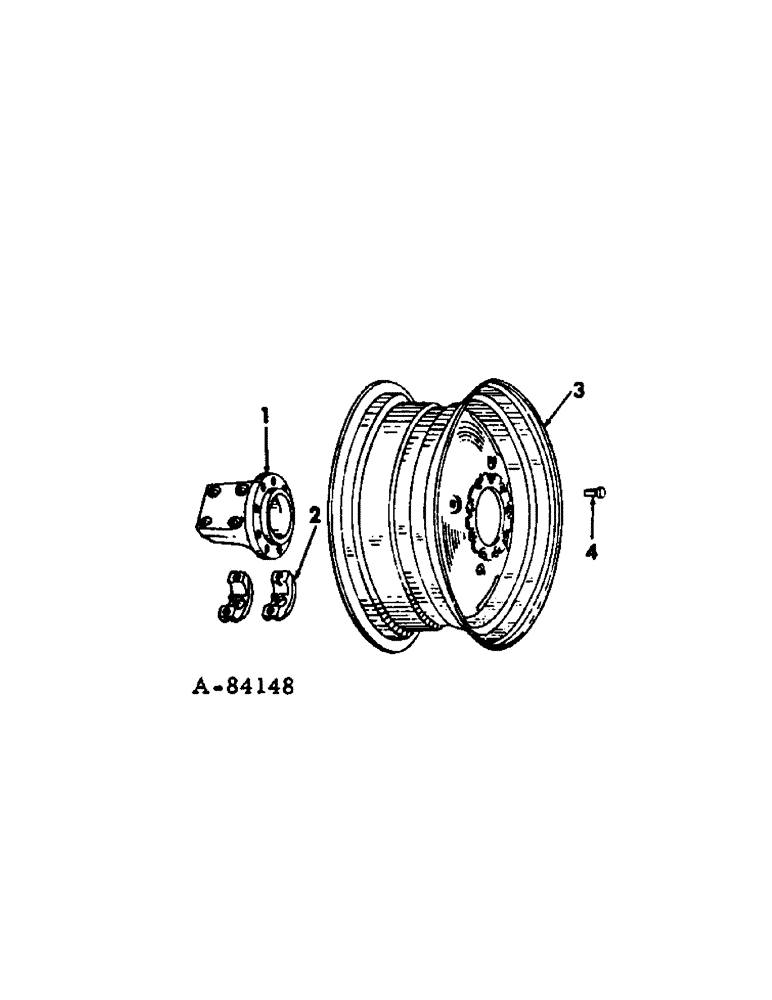

Запчасти Case IH HYDRO 70 (15-04) - WHEELS AND TRACTION, REAR WHEELS, 34 INCH Wheels & Traction

1

391279R1

HUB, rear wheel

2шт.

2

389539R1

CLAMP

wheel hub

4шт.

375463R1

SCREW,Hex, 7/8" - 14 x 4 3/4"

7/8-14 x 4-3/4 hex-hd cap

8шт.

3

375111R91

WHEEL ASSY, disc type rear, DW14-34 rim for 16.9-34 tire

2шт.

3

536298R1

RIM

WHEEL ASSY, disc type rear, DW16-34 rim for 18.5 x 34 tire

2шт.

4

391004R1

BOLT,Hex, 5/8"

BOLT, rear wheel mounting

18шт.
