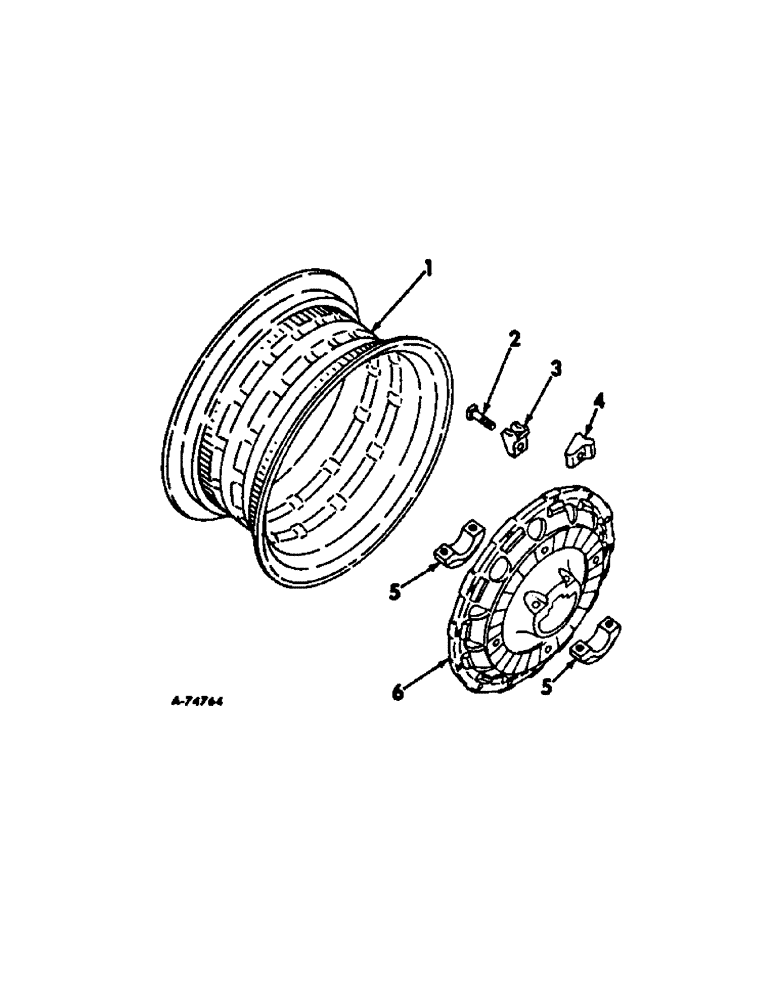

Запчасти Case IH HYDRO 70 (15-03) - WHEELS AND TRACTION, REAR WHEELS, 38 INCH Wheels & Traction

1

380869R1

RIM

rear wheel, W14L 38, for 15.5 x 38 tire, Replaces 365946R2

2шт.

2

363017R1

BOLT,5/8" - 18 x 2 1/4"

rear wheel rim clamp

16шт.

363018R1

NUT

rim clamp

16шт.

3

363016R1

CLAMP

rear wheel rim adj

12шт.

4

373926R1

CLAMP

rear wheel rim fixed

4шт.

5

389539R1

CLAMP

rear wheel hub

4шт.

375463R1

SCREW,Hex, 7/8" - 14 x 4 3/4"

7/8-14 x 4-3/4 hex-hd cap

8шт.

6

388336R1

DISC

WHEEL, 38 in. rear

2шт.
