Запчасти Case IH HYDRO 70 (15-03[A]) - WHEELS AND TRACTION, REAR WHEELS WITH 42 INCH DEMOUNTABLE RIM Wheels & Traction

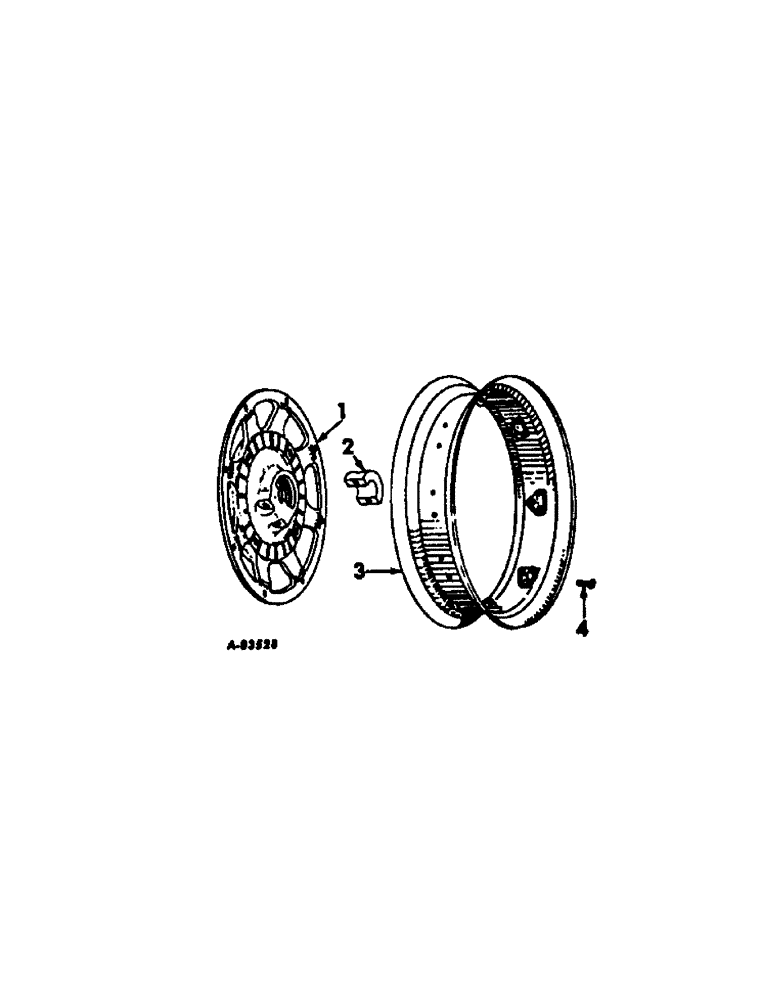

Схема запчастей Case IH HYDRO 70 - (15-03[A]) - WHEELS AND TRACTION, REAR WHEELS WITH 42 INCH DEMOUNTABLE RIM Wheels & Traction
4
1
3
2

Артикул

Название

Примечание

Количество

1

388336R1

DISC

WHEEL, 38 inch rear

2шт.

2

389539R1

CLAMP

rear wheel hub

4шт.

375463R1

SCREW,Hex, 7/8" - 14 x 4 3/4"

7/8-14 x 4-3/4 hex-hd cap

8шт.

3

392714R91

RIM

ASSY, rear wheel, W9-42 rim for 9-5-42 or 12.4-42 tire

2шт.

4

381727R1

SCREW

BOLT, rear wheel rim clamp

16шт.

363018R1

NUT

rear wheel rim clamp

16шт.

Выбрано товаров: 6
