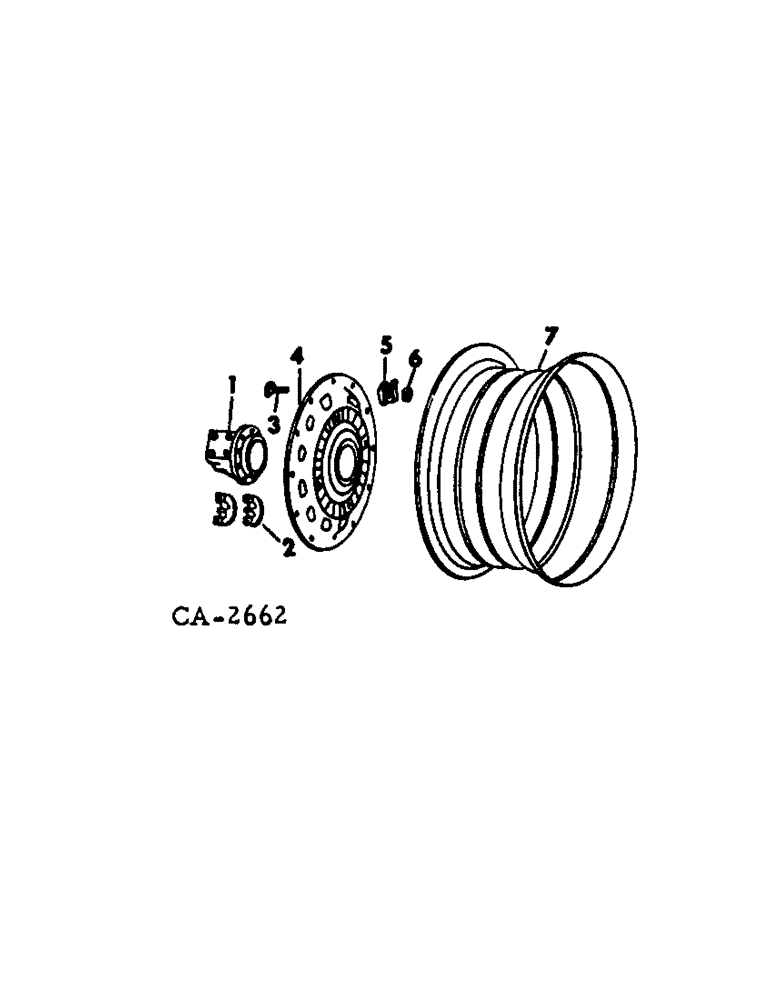

Запчасти Case IH HYDRO 70 (15-02) - WHEELS AND TRACTION, REAR WHEELS WITH 34 INCH DEMOUNTABLE RIM Wheels & Traction

1

391279R1

HUB, rear wheel

2шт.

2

389539R1

CLAMP

wheel hub

4шт.

375463R1

SCREW,Hex, 7/8" - 14 x 4 3/4"

7/8-14 x 4-3/4 hex-hd cap

8шт.

3

380878R1

BOLT (SPREADER),Sq Hd, 3/4" - 16 x 2 3/4"

BOLT, rear wheel clamp

24шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

24шт.

4

405810R1

WHEEL, 34 in. cast rear

2шт.

14-1032

BOLT,Hex, 5/8" - 18 x 2", Gr 5

SCREW, 5/8-18 x 2 hex-hd cap, Fine Thread

18шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

18шт.

5

380870R1

CLAMP

rear wheel rim, adjustable

20шт.

5

397251R1

CLAMP

rear wheel rin, fixed

4шт.

6

352536R1

NUT

rear wheel clamp

24шт.

7

380868R1

RIM

rear wheel, W16L-34 for 18.4-34 rear tire

2шт.
