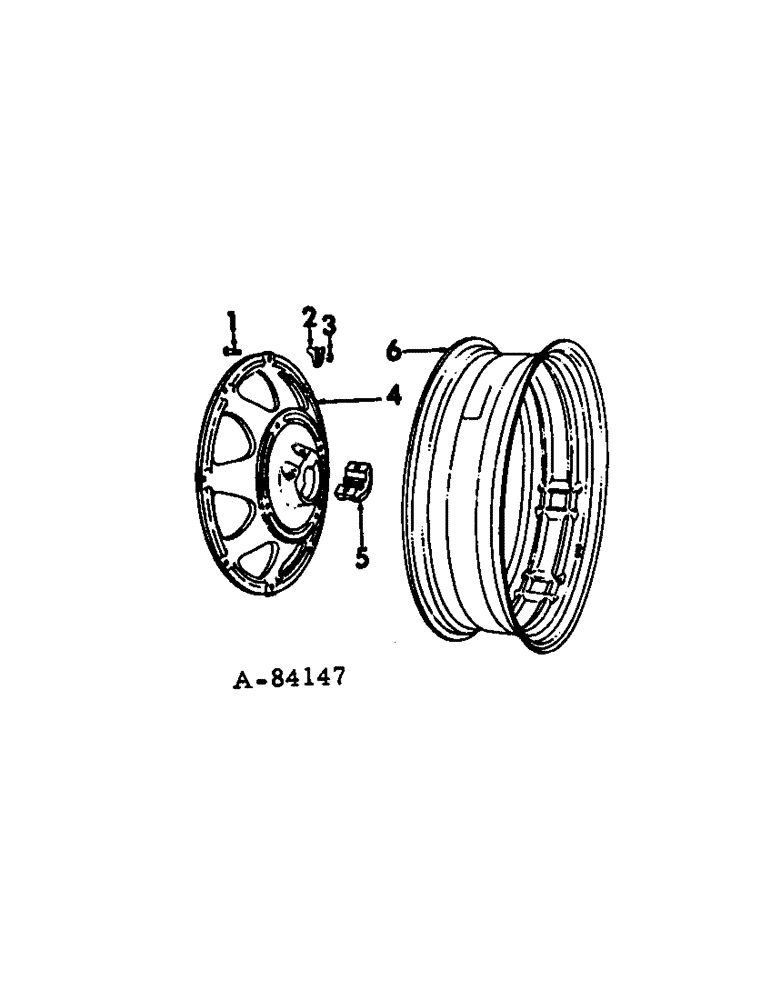

Запчасти Case IH HYDRO 70 (15-02[A]) - WHEELS AND TRACTION, REAR WHEELS WITH 38 INCH DEMOUNTABLE RIM Wheels & Traction

1

381727R1

SCREW

BOLT, rear wheel rim clamp

16шт.

2

381725R1

SHIN

CLAMP, rear wheel rim adjustable

12шт.

2

381726R1

SHIN

CLAMP, rear wheel rim fixed

4шт.

3

363018R1

NUT

rim clamp

16шт.

4

392415R1

WHEEL

38 in. rear

1шт.

5

389539R1

CLAMP

rear wheel hub

4шт.

375463R1

SCREW,Hex, 7/8" - 14 x 4 3/4"

7/8-14 x 4-3/4 hex-hd cap

8шт.

6

383691R1

RIM

rear wheel, WH12-38 rim for 13-6-38 or 14.9-38 tire

2шт.

6

380869R1

RIM

rear wheel, WH14L rim for 15.5-38 tire

2шт.
