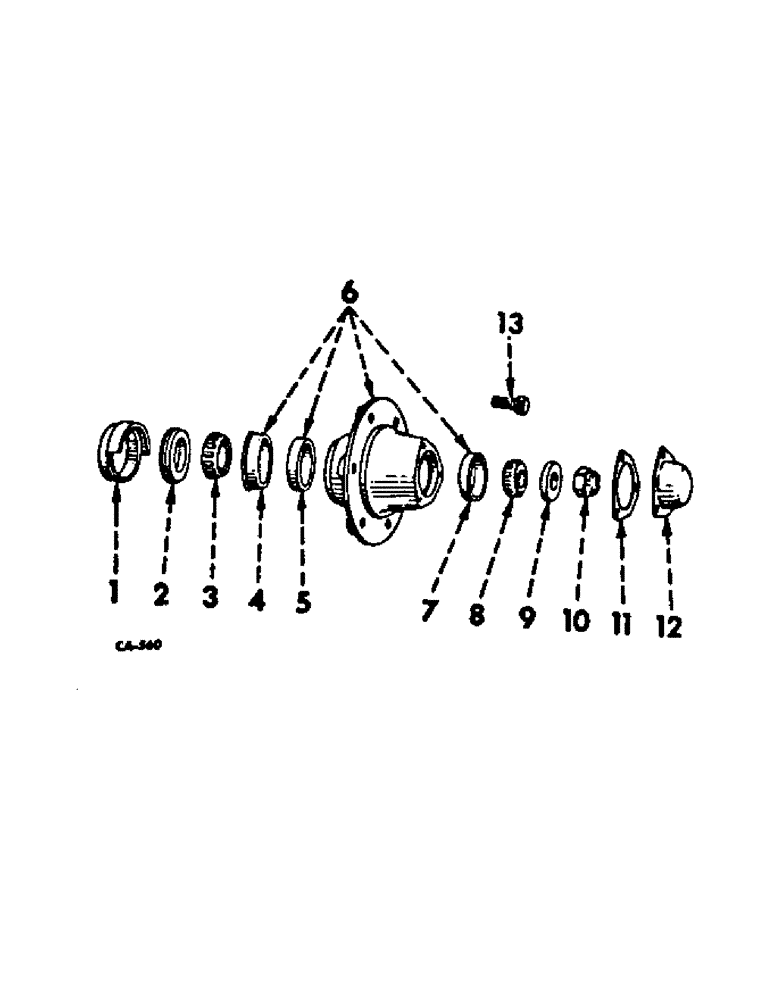

Запчасти Case IH HYDRO 70 (14-05[A]) - SUSPENSION, FRONT WHEEL HUB, BEARINGS AND CAP, TRICYCLE FRONT AXLES Suspension

1

48541D

SHIELD

front wheel dust

2шт.

2

48539DA

PACKING RING

SEAL, front wheel oil

2шт.

3

618023R91

BEARING ASSY,34.93mm ID x 18.2mm W

BEARING ASSY, front wheel inner core

2шт.

4

48548D

WASHER

front wheel oil seal

2шт.

5

618024R1

BEARING CUP,65.113mm OD x 13.97mm W

Front wheel inner

2шт.

6

395310R11

HUB

ASSY, front wheel

2шт.

80722

LUBE NIPPLE,3/16" x .55" lg, Drive

FITTING, 3/16 str drive

2шт.

7

371883R1

BEARING CUP

Front wheel outer

2шт.

8

371882R91

ROLLER BEARING,20.64mm ID x 49.23mm OD x 19.84mm W

Assy, Front wheel outer

2шт.

9

369857R1

WASHER,20.7mm ID x 31.75mm OD x 3mm Thk

front wheel outer bearing retainer

2шт.

10

427639

SLOTTED NUT,3/4"-16, G5

NUT, 3/4-16 slt-hex front wheel

2шт.

108643

COTTER PIN,5/32" x 1 3/8"

Pin, Split (Cotter), 5/32" x 1 3/8"

1шт.

11

369860R1

GASKET,0.79mm Thk

front wheel hub cap

2шт.

12

369859R1

CAP

front wheel hub

2шт.

18075

BUCKET

SCREW, 5/16-18 x 5/8 cad hex-hd cap

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

13

51485D

BOLT,9/16" - 18 x 1 7/32"

front wheel mounting

12шт.
