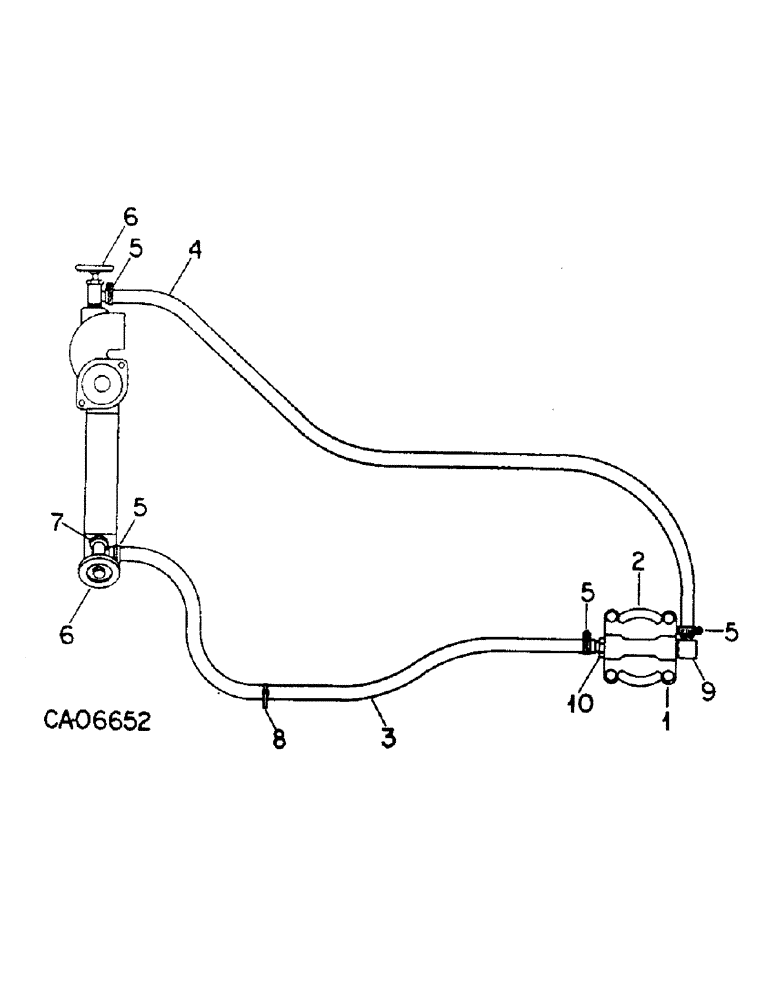

Запчасти Case IH HYDRO 70 (12-12) - POWER, WATER FILTER CONDITIONER, TRACTORS WITH D-310 ENGINE Power

1

427446C1

HEAD

BASE, water filter

1шт.

95-11041

WASHER,3/8"

(.406 x .812 x .051 pln) 3/8"

4шт.

NLS

NO LONGER SERVICED

4шт.

2

690171C1

FILTER

ELEMENT, water filter

1шт.

3

HOSE, water outlet, Furnish 27 in. of bulk hose part no. for one ft. 364357C1

1шт.

4

HOSE, water inlet, Furnish 38 in. of bulk hose part no. for one ft. 364357C1

1шт.

5

279025R91

HOSE CLAMP,#06, .44/.78 Type F Worm

4шт.

6

321840C91

LOCK VALVE

VALVE, 3/8 pipe to 3/8 ID hose shut-off

2шт.

7

217-44

REDUCER,1/2" - 14 NPT x 3/8" - 18 NPT

Adapter, Optional w/120322 1/2"-14 NPTF x 3/8"-18 Fem NPTF

1шт.

7

175778H1

ADAPTER

1/2 male to 3/8 female reducer, Optional w/144039

1шт.

8

72836C1

STRAP, hose lock

1шт.

8

363660R1

CLIP

water inlet hose

1шт.

9

324292C1

ELBOW

3/8 pipe to 3/8 ID hose 90 deg hose conn., Optional w/444821C1

1шт.

9

444821C1

ELBOW

3/8 pipe to 3/8 ID hose 90 deg, Optional w/324292C1

1шт.

10

400718C1

FITTING,3/8" Hose x 3/8" NPTF, Barbed

NIPPLE, 3/8 pipe to 3/8 ID hose, Optional w/176057H1

1шт.

10

176057H1

FITTING

NIPPLE, 3/8 pipe to 3/8 ID hose, Optional w/400718C1

1шт.
