(12-03) - POWER, ELECTRIC AIR CLEANER INDICATOR, 666, 70 AND 86 HYDROSTATIC DRIVEN TRACTORS

Запчасти Case IH HYDRO 70 (12-03) - POWER, ELECTRIC AIR CLEANER INDICATOR, 666, 70 AND 86 HYDROSTATIC DRIVEN TRACTORS Power

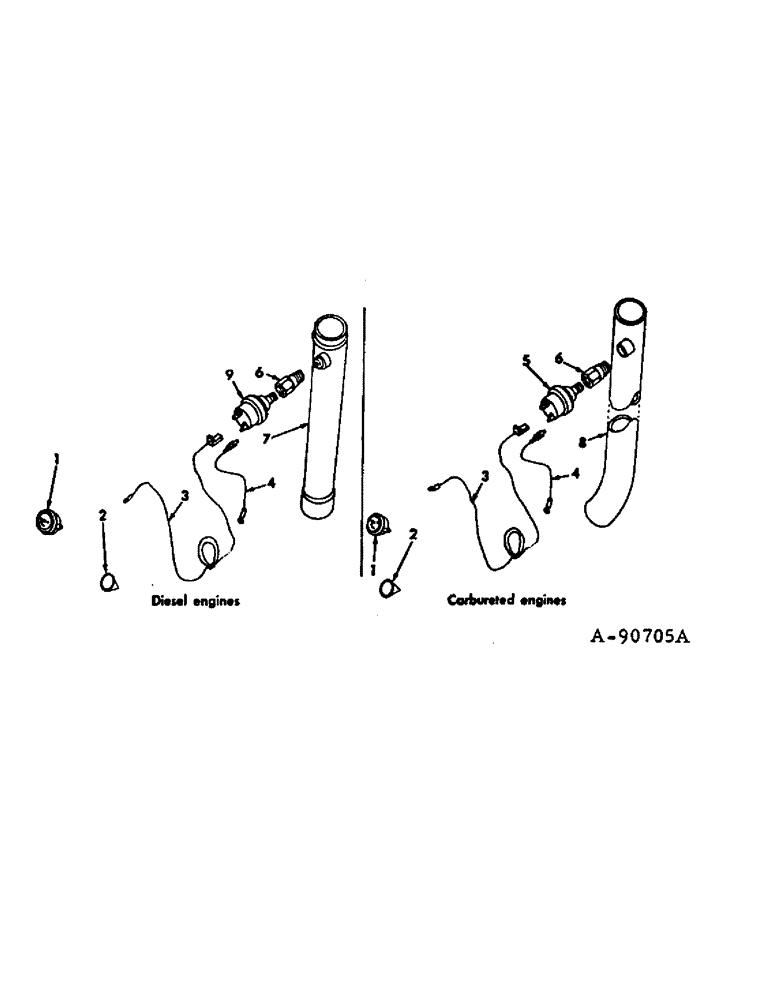

Схема запчастей Case IH HYDRO 70 - (12-03) - POWER, ELECTRIC AIR CLEANER INDICATOR, 666, 70 AND 86 HYDROSTATIC DRIVEN TRACTORS Power
8
1
2
2
6
3
6
1
9
7
4
3
5
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

397942R91

INDICATOR

ASSY, electric air cleaner

1шт.

2

397943R1

SPACER, electric air cleaner gauge

1шт.

3

405208R1

CABLE ASSY, air restriction indicator

1шт.

4

405211R1

CABLE PULLING GRIP

CABLE ASSY, vacuum, Serial Range: switch-ground

1шт.

5

389682R91

SWITCH

electric air cleaner vacuum

1шт.

6

389908R91

ADAPTER

ASSY, vacuum switch

1шт.

7

66461C2

PIPE ASSY, air cleaner

1шт.

8

389909R21

PIPE ASSY, air, Serial Range: cleaner-carburetor

1шт.

9

531609R1

IGNITION SWITCH

SWITCH, electric air cleaner vacuum

1шт.

363660R1

CLIP

on alternator brace mounting bolt, gasoline tractors

1шт.
