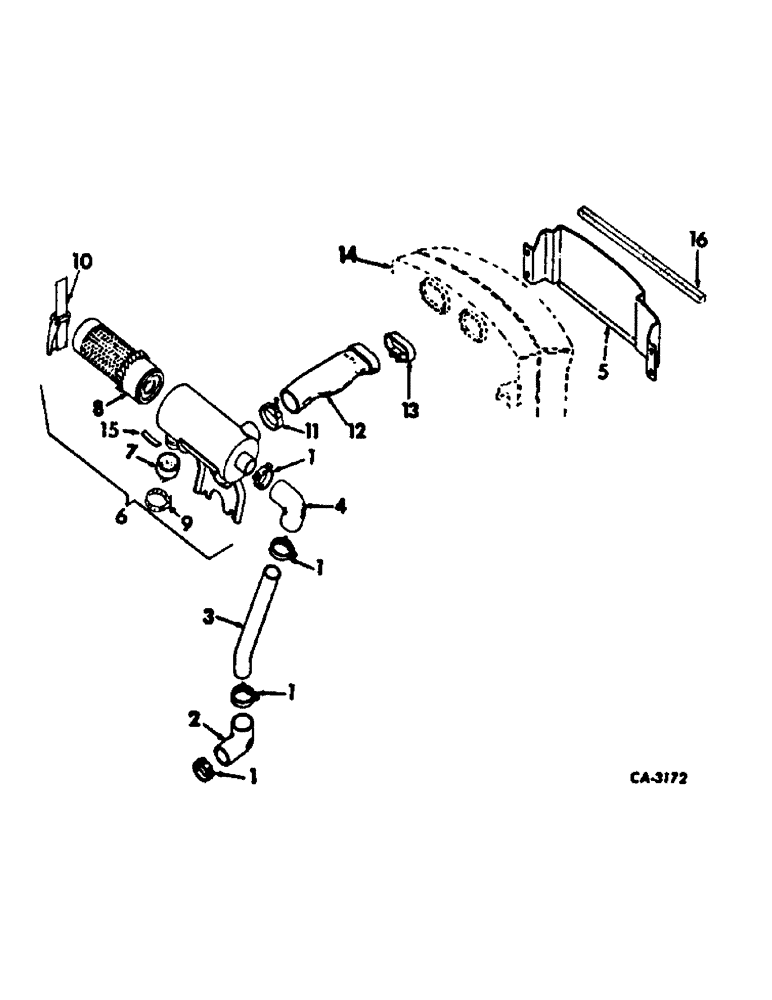

Запчасти Case IH HYDRO 70 (12-01) - POWER, AIR CLEANER AND CONNECTIONS, GASOLINE Power

1

397256R1

HOSE CLAMP,#44, 2.31/3.25 Type F Worm, W/liner

CLAMP, air cleaner pipe hose

4шт.

2

397798R1

INTAKE AIR HOSE,2.00" ID, 2.50" ID

Air Cleaner Pipe Lower 2.00" ID, 2.50" ID

1шт.

3

385023R2

PIPE, air cleaner

1шт.

4

306190R1

HOSE ASSY.

HOSE, air cleaner pipe upper

1шт.

5

396519R1

BAFFLE

pre-cleaner

1шт.

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

4шт.

6

66322C91

CLEANER ASSY, air

1шт.

102635

NUT,3/8"-16, G5

2шт.

7

383734R2

VALVE

dust unloader

1шт.

8

537334R1

AIR CLEANER,Round, 4.38" ID x 6.09" OD x 13" L

Air Filter, Primary

1шт.

9

NOT USED IN THIS APPLICATION

1шт.

10

71913C1

LOCK VALVE

LATCH ASSY, Replaces 530480R1

1шт.

11

146569C1

CLAMP

intake hose rear, Replaces 397257R1

1шт.

12

380035R2

INTAKE AIR HOSE,2.16" ID, 3.00" ID x 11.20"

Air Cleaner 2.16" ID, 3.00" ID x 11.20"

1шт.

13

380600R91

FASTENER

CLAMP, intake hose frt

1шт.

14

RADIATOR SUPPORT ASSY, Refer to radiator and connections listing group 6

1шт.

15

387067R1

SPRING

flat

1шт.

16

SEAL, pre-cleaner baffle air, Furnish 22.5 in. of foam marked 73213C1

1шт.
