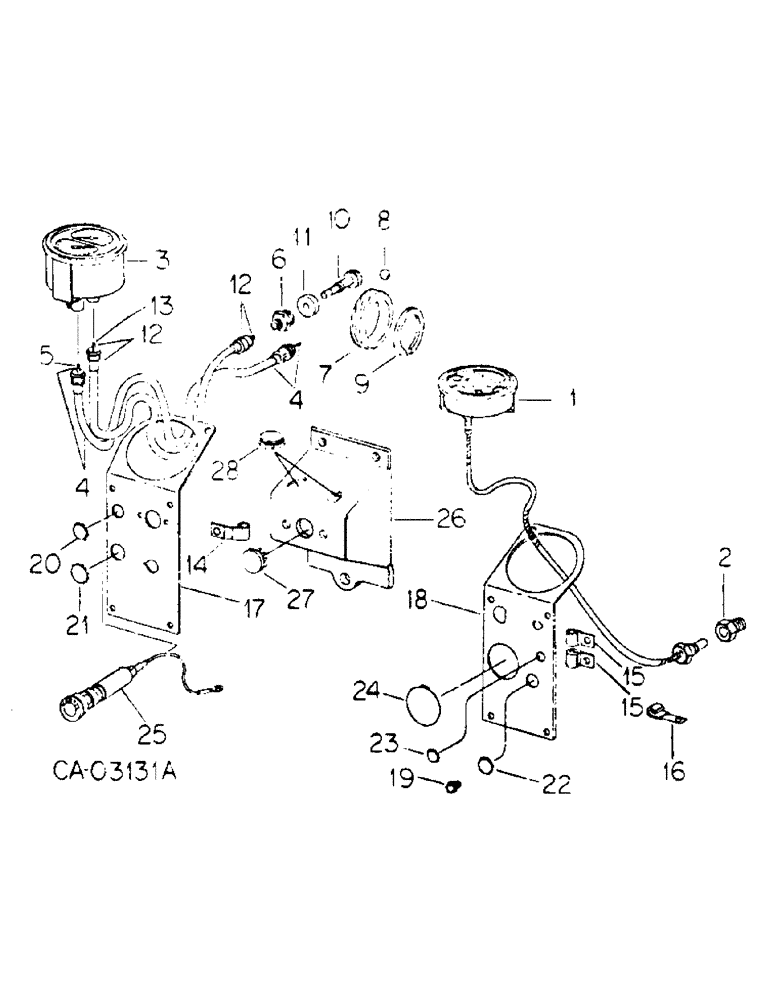

Запчасти Case IH HYDRO 70 (11-01) - INSTRUMENTS, GAUGES AND INSTRUMENT PANEL Instruments

1

65321C1

CLUSTER

ASSY, gauge, gasoline tractors

1шт.

1

539293R1

CLUSTER

ASSY, gauge, diesel tractors

1шт.

2

51510DA

RESTRICTOR

BUSHING, capillary tube bulb install, diesel tractors

1шт.

3

65323C1

SPEEDOMETER

/TACHOMETER ASSY, 666 and 686 gear drive tractors

1шт.

3

65947C1

SPEEDOMETER

/TACHOMETER, 666 and 686 gear drive tractors w/torque amplifier

1шт.

3

65324C1

SPEEDOMETER

/TACHOMETER ASSY, 666, 70 and 86 hydrostatic drive tractors

1шт.

3

71839C1

SPEEDOMETER/TACHOMETER ASSY, metric dial, 86 hydrostatic drive tractors

1шт.

3

71841C1

SPEEDOMETER/TACHOMETER ASSY, metric dial, 686 gear drive tractors

1шт.

4

393326R92

CABLE ASSY.

CABLE ASSY, tachometer flex drive, gasoline tractors

1шт.

4

65325C93

CABLE PULLING GRIP

CABLE ASSY, tachometer flex drive, diesel tractors w/D-312 engine

1шт.

4

393328R93

CABLE PULLING GRIP

CABLE ASSY, tachometer flex drive, diesel tractors w/D-310 engine

1шт.

5

NOT USED

1шт.

5

NOT USED

1шт.

6

398941R1

SLEEVE, speedometer driven gear, 666, 70 and 86 hydrostatic drive tractors

1шт.

7

398942R1

GEAR, speedometer drive, 666, 70 and 86 hydrostatic drive tractors

1шт.

8

17008R1

BALL,1/4" Dia

Chrome-Steel, 666, 70 and 86 hydrostatic drive tractors 1/4" Dia

1шт.

9

644771R1

SNAP RING,#225, Ext

Ring, Snap, , 666, 70 and 86 hydrostatic drive tractors #225, Ext

1шт.

10

398954R1

GEAR

speedometer driven, 666, 70 and 86 hydrostatic drive tractors

1шт.

11

399139R2

SEAL

speedometer cable, 666, 70 and 86 hydrostatic drive tractors

1шт.

12

398955R93

CABLE

ASSY, speedometer flexible drive, 666, 70 and 86 hydrostatic drive tractors

1шт.

13

401273R2

CORE

flexible drive cable

1шт.

14

363662R1

CLIP

tachometer cable, diesel tractors w/D-312 engine

1шт.

15

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, capillary tube & choke cable, gasoline tractors

2шт.

15

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, capillary tube & choke cable, diesel tractors

1шт.

16

384554R1

CLIP

capillary tube, diesel tractors

1шт.

17

382724R91

PANEL

ASSY, instrument LH

1шт.

18

402135R3

PANEL, instrument RH

1шт.

19

369222R1

BOLT,Hex Wshr Hd, 5/16" - 18 x 5/8"

SCREW, instrument panel mtg

10шт.

20

374342R1

PLUG

horn switch hole button

1шт.

21

432281

HOLE PLUG BUTTON,29/32"

PLUG, 29/32 crp button, cigarette lighter hole

1шт.

22

NLS

NO LONGER SERVICED

PLUG, 7/8 crp button, 666 and 686 gear drive tractors

1шт.

23

383621R1

PLUG, choke hole, diesel tractors

1шт.

24

406099R1

COVER

ASSY, air ind opening

1шт.

25

382671R91

CIGAR LIGHTER

PARTS ACCESSORY, cigar lighter, service item is unit, pop out/378781R91

1шт.

26

121755C1

HOUSING, directional indicator switch, 686 and 86 tractors only

1шт.

181561

BOLT,Hex, 1/4" - 28 x 1/2", Gr 5

1/4-NF x 1/2 type 5

1шт.

22256R1

WASHER

.281 x .500 x .056 pln

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

2шт.

27

192105

HOLE PLUG BUTTON,1"

PLUG, 1 inch button, ether push button hole, 686 and 86 tractors only

1шт.

28

432407

PLUG, 9/32 button, ether push button mounting holes, 686 and 86 tractors only

1шт.

71485C1

PACKAGE

directional indicator handle, 686 and 86 tractors only

1шт.
