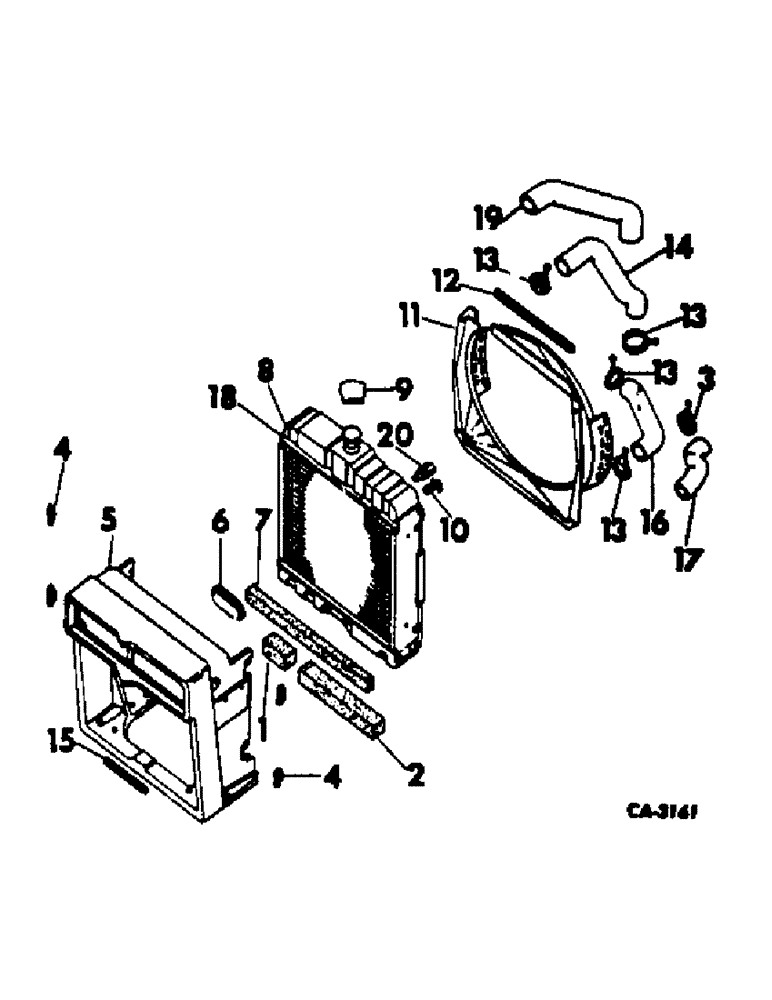

Запчасти Case IH HYDRO 70 (06-02) - COOLING, RADIATOR, RADIATOR SUPPORT, FAN SHIELD AND CONNECTORS Cooling

1

GASKET, radiator baffle, short, 666, 70 and 86 hydrostatic drive tractors, Furnish 4 in. from 4 ft. length of foam marked 73218C1

1шт.

2

GASKET, radiator baffle, long, 666, 70 and 86 hydrostatic drive tractors, Furnish 13.5 in. from 4 ft. length of foam marked 73218C1

1шт.

3

279029R91

HOSE CLAMP,#48, 2.56/3.50 Type F Worm

CLAMP, no. 48 radiator hose, Diesel tractors w/D-312 engine

1шт.

4

378710R91

PLATE ASSY.

BRACKET, radiator mounting plate

4шт.

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

8шт.

179796

BOLT,Hex, 1/4" - 20 x 7/8", Gr 5

SCREW, 1/4-20 x 7/8 hex-hd cap

4шт.

5

65490C1

SUPPORT RADIATOR

1шт.

413-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

SCREW, 5/8-11 x 2-3/4 hex-hd cap

5шт.

384317R1

SCREW, 5/8-11 x 2-3/4 12 pt-hd

1шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

6шт.

617937R1

PIN,1/4" x 7/8", Coiled

1шт.

6

383788R1

PLUG

radiator support

1шт.

7

GASKET, radiator baffle, 666 and 686 gear driven tractors, Furnish 20.5 in. from 4 ft. length of foam marked 73218C1

1шт.

8

65426C1

RADIATOR

LESS FILLER CAP, all gasoline tractors and 666 hydrostatic drive tractors, Start Serial: 10552

1шт.

8

65428C1

RADIATOR LESS FILLER CAP, 666 gasoline, hydrostatic drive tractors, Serial Range: -10551

1шт.

8

65427C1

RADIATOR

LESS FILLER CAP, diesel tractors

1шт.

9

402281R1

CYLINDER END CAP

CAP, radiator pressure

1шт.

10

614201R1

VALVE

COCK, 1/4 drain, radiator

1шт.

11

396356R1

SHROUD ASSY, fan, gasoline tractors

1шт.

179789

BOLT,Hex, 1/4" - 20 x 3/8", Gr 5, Full Thd

4шт.

95-11028

WASHER,1/4"

9/32 x 5/8 x .051

4шт.

11

65997C2

SHROUD

ASSY, fan, diesel tractors

1шт.

179789

BOLT,Hex, 1/4" - 20 x 3/8", Gr 5, Full Thd

3шт.

217902

SCREW, 1/4-20 x 3/8 hex-soc-hd cap

1шт.

557109R1

WASHER

17/64 x 1/2 x 16 ga

4шт.

12

SEAL, fan housing, Furnish 13 in. from 4 ft. length of foam marked 73213C1

1шт.

13

279028R91

HOSE CLAMP,#40, 2.06/3.00 Type F Worm

CLAMP, #40 radiator hose, gasoline tractors & diesel tractors w/D-310 engine

4шт.

13

279028R91

HOSE CLAMP,#40, 2.06/3.00 Type F Worm

CLAMP, #40 radiator hose, diesel tractors w/D-312 engine

3шт.

14

396353R1

RADIATOR HOSE,2.00" ID x 12.00", SAE 20R4 CLASS R GRADE 1

Inlet, Gasoline tractors 2.00" ID x 12.00", SAE 20R4 CLASS R GRADE 1

1шт.

15

SEAL, radiator, Furnish 10 in. from 4 ft. length of foam marked 73213C1

1шт.

16

378704R1

RADIATOR HOSE,2.00" ID x 10.50", SAE 20R4, CLASS R, GRADE 1

Outlet, Gasoline tractors 2.00" ID x 10.50", SAE 20R4, CLASS R, GRADE 1

1шт.

17

65430C1

HOSE

radiator outlet, Diesel tractor w/D-312 engine

1шт.

17

396355R1

RADIATOR HOSE,2.00" ID x 10.30", SAE 20 R4 CLASS R, GRADE 1

Outlet, Diesel engine tractorsr w/D-310 engine 2.00" ID x 10.30", SAE 20 R4 CLASS R, GRADE 1

1шт.

18

SEAL, grille screen air, Furnish 19.6 in. from 4 ft. length of foam marked 73213C1

1шт.

19

65429C1

HOSE

radiator inlet, Diesel tractor w/D-312 engine

1шт.

19

406766R1

RADIATOR HOSE,2.00" ID x 8.44", SAE 20R4, CLASS D2

Inlet, Diesel tractor w/D-310 engine 2.00" ID x 8.44", SAE 20R4, CLASS D2

1шт.

20

614200R1

ADAPTER

EXTENSION, drain cock, Diesel tractors only

1шт.
