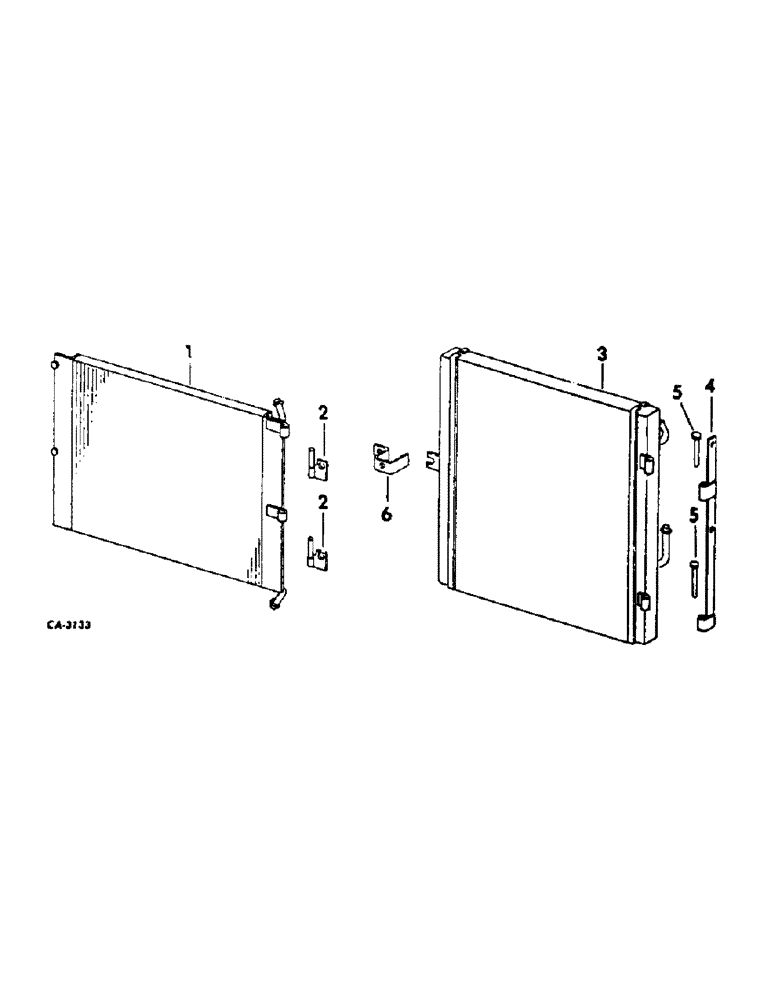

Запчасти Case IH HYDRO 70 (06-01) - COOLING, OIL COOLER Cooling

1

388419R91

COOLER

ASSY, oil, 666 and 686 gear drive tractors

1шт.

324235R1

12 PT SCREW,Flg, 3/8"-16 x 3/4"

SCREW, 3/8-16 x 3/4 12pt flanged

2шт.

2

388420R92

PIVOT

ASSY, oil cooler, 666 and 686 gear drive tractors

2шт.

3

535116R1

COOLER

ASSY, oil, 666, 70 and 86 hydrostatic drive tractors

1шт.

4

66118C1

HINGE ASSY, oil cooler, 666, 70 and 86 hydrostatic drive tractors

1шт.

5

Q530

HEADED PIN,7.92mm OD x 63.5mm L

PIN, 5/16 x 2-1/2 headed, 666, 70 and 86 hydrostatic drive tractors

2шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

2шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

6

66121C1

BRACKET ASSY, oil cooler latch, 666, 70 and 86 hydrostatic drive tractors

1шт.

324235R1

12 PT SCREW,Flg, 3/8"-16 x 3/4"

SCREW, 3/8-16 x 3/4 12pt flanged

2шт.
