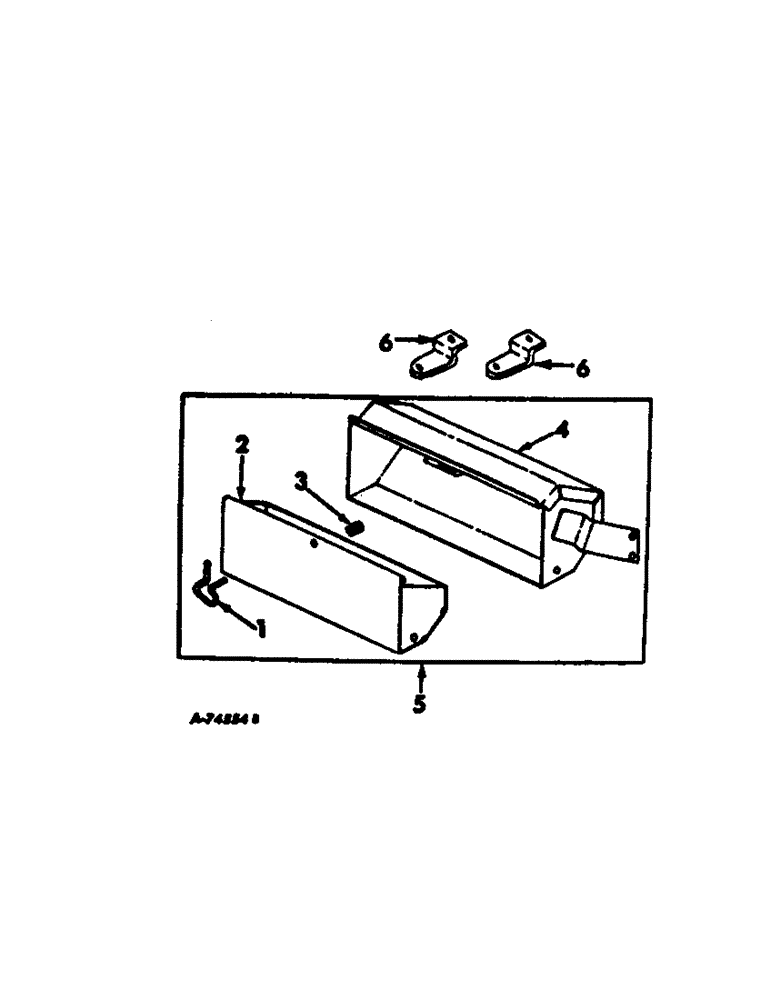

Запчасти Case IH HYDRO 70 (02-02) - MISCELLANEOUS, TOOL BOX Accessories & Attachments / Miscellaneous

1

383114R1

HANDLE

tool box

1шт.

114856

PIN, 3/64 x 1/2 cot

1шт.

103338

WASHER,#10

7/32 x 1/2 x 16 ga

1шт.

2

DRAWER ASSY, tool box, Not serviced separately order box assy/383115R91

1шт.

113354

RIVET

3/16 x 1/4 ov-hd tubular

2шт.

3

27452D

VALVE SPRING

SPRING, tool box handle

1шт.

4

COVER ASSY, tool box, Not serviced separately order box assy/383115R91

1шт.

5

383115R91

BOX

ASSY, tool

1шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT, 5/16-18 x 3/4 short sq-nk crg

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

9635082

NUT,5/16" - 18, Gr 5

2шт.

6

NOT USED THIS APPLICATION

1шт.

64904C93

KIT

see insert

1шт.

69915C93

KIT

see insert

1шт.

2753957R1

DECAL

hi-lo rangeshift

1шт.
