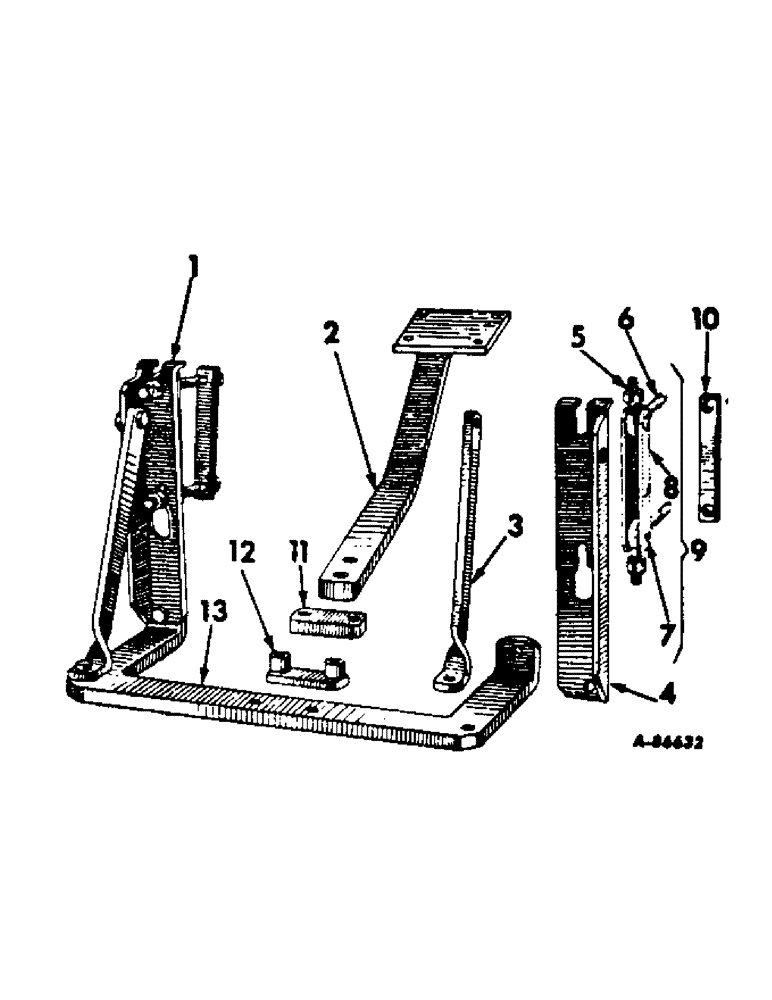

Запчасти Case IH HYDRO 70 (09-03) - FRAME, QUICK ATTACHABLE DRAWBAR, FARMALL HI-CLEAR TRACTORS (12) - FRAME

1

353276R1

ANGLE, drawbar LH

1шт.

220081

NUT

3/4-10 hex

1шт.

271613

SCREW,Hex, 3/4" - 10 x 2 1/2", Gr 5

3/4-10 x 2-1/2 hex-hd cap

1шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

2

395524R1

TONGUE ASSY, drawbar

1шт.

271562

SHIELD,Hex, 5/8" - 11 x 2", Gr 5

SCREW, 5/8-11 x 2 hex-hd cap

4шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

3

353275R1

BRACE, drawbar

2шт.

425-1012

NUT,3/4"-10, G5

3/4-10 hex

4шт.

271613

SCREW,Hex, 3/4" - 10 x 2 1/2", Gr 5

3/4-10 x 2-1/2 hex-hd cap

2шт.

271610

SCREW, 3/4-10 x 1-7/8 hex-hd cap

2шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

4

353277R1

ANGLE, drawbar RH

1шт.

220081

NUT

3/4-10 hex

1шт.

271613

SCREW,Hex, 3/4" - 10 x 2 1/2", Gr 5

3/4-10 x 2-1/2 hex-hd cap

1шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

5

353272R21

BOLT,W/Nut & Washer, 3/4" - 16 x 3 5/16"

EYEBOLT ASSY, drawbar attaching channel

4шт.

6

531159R1

BOLT,3/4" - 16 x 8.25"

drawbar attaching channel

4шт.

531160R1

NUT

3/4-16 hex

4шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

7

43690D

PIN

drawbar attaching channel

4шт.

8

PO26267

CHANNEL, drawbar attaching

2шт.

9

531162R91

CHANNEL ASSY, drawbar attaching, Composed of ref nos. 5 thru 8 and attaching hardware

2шт.

10

PO26224

CLAMP, drawbar attaching

2шт.

11

353274R1

STRAP, drawbar tongue

1шт.

220081

NUT

3/4-10 hex

2шт.

413-1276

BOLT,Hex, 3/4" - 10 x 4-3/4", Gr 5

SCREW, 3/4-10 x 4-3/4 hex-hd cap

2шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

12

353280R11

SHIM ASSY, drawbar tongue

1шт.

13

395522R1

BAR

DRAWBAR ASSY

1шт.
