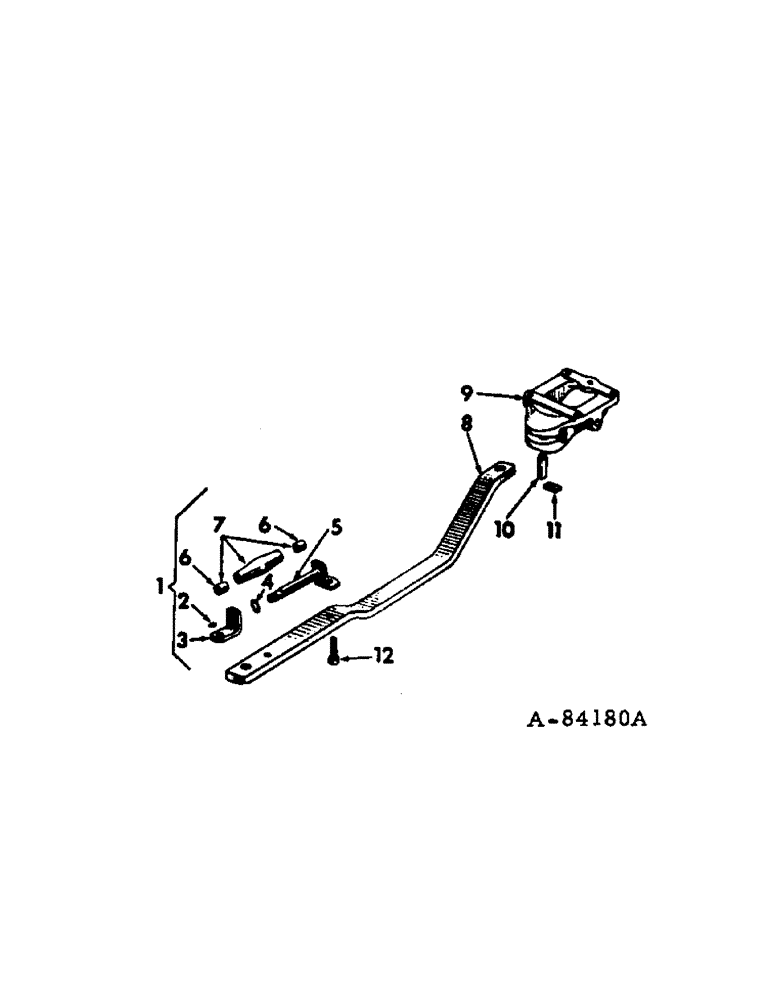

Запчасти Case IH HYDRO 70 (09-02) - FRAME, SWINGING DRAWBAR (12) - FRAME

ATTACHMENT, swinging drawbar, 389110R91

1шт.

1

356563R93

ROLLER

ASSY, swinging drawbar

1шт.

2

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTFe 1/8"-27 x .66 lg

1шт.

3

356565R2

SUPPORT

drawbar roller shaft

1шт.

13361R1

SCREW, 5/8-11 x 2-1/4 sq-hd mach

1шт.

102639

NUT,5/8"-11, G5

1шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

1шт.

4

21761R1

WASHER

.906 x 1.500 x .054

2шт.

5

356561R11

SHAFT

ASSY, swinging drawbar roller

1шт.

13361R1

BOLT, 5/8-11 x 2-1/4 sq-hd mach

1шт.

102639

NUT,5/8"-11, G5

1шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

425-1012

NUT,3/4"-10, G5

3/4-10 hex

1шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

6

356564R1

BUSHING

drawbar roller

2шт.

7

356562R31

ROLLER

ASSY, swinging drawbar

1шт.

8

389112R1

DRAWBAR, swinging

1шт.

9

389104R11

SUPPORT ASSY, swinging drawbar pivot, Not part of swinging drawbar attachment

1шт.

271562

SHIELD,Hex, 5/8" - 11 x 2", Gr 5

SCREW, 5/8-11 x 2 hex-hd cap

4шт.

10

57654D

PIVOT PIN

PIN, swinging drawbar pivot

1шт.

11

49139D

WASHER,10.32mm ID x 38.1mm OD x 5mm Thk

PLATE, pivot pin lock

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

12

271611

BOLT,Hex, 3/4" - 10 x 2", Gr 5

SCREW, 3/4 x 2 hex-hd cap, Used as drawbar roller stop

2шт.

137543C1

NUT

3/4-10 sq

2шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.
