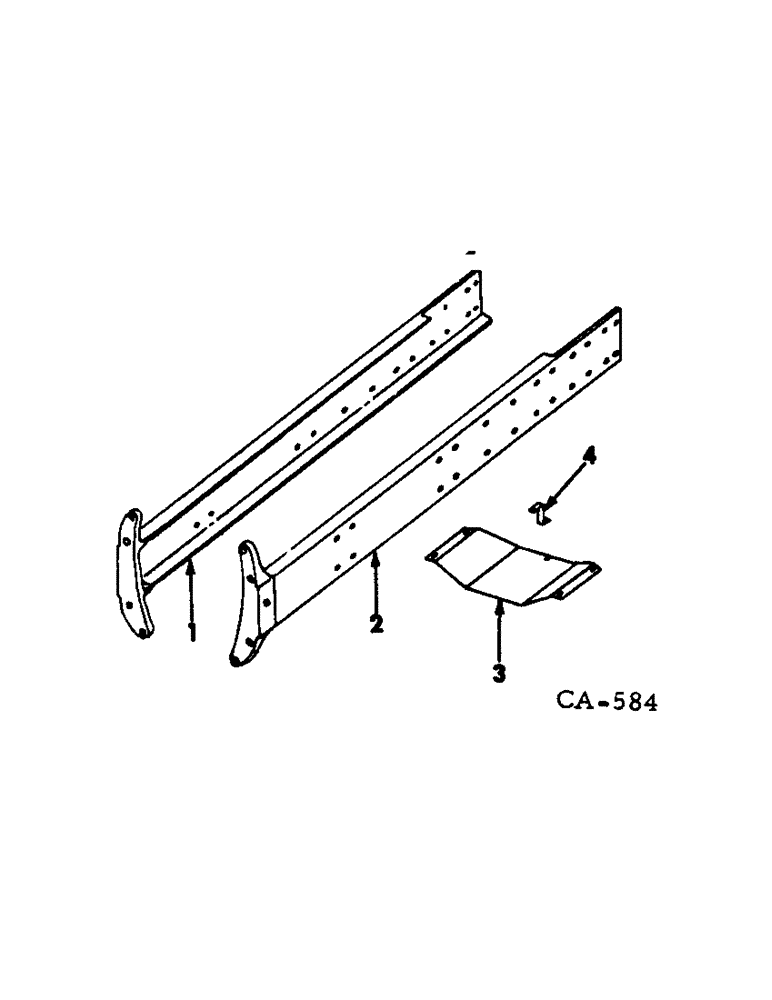

Запчасти Case IH HYDRO 70 (09-01) - FRAME, FRONT CHANNELS (12) - FRAME

1

65431C1

CHANNEL ASSY, LH front frame

1шт.

555301R1

BOLT,Hex, 5/8" - 11 x 1 3/8", Gr 8

SCREW, 5/8-11 x 1-3/8 hex-hd cap

4шт.

20065R1

BOLT,Hex, 5/8" - 11 x 2 1/2", Gr 8

SCREW, 5/8-11 x 2-1/2 hex-hd cap, gasoline engine tractors

4шт.

20727R1

BOLT,Hex, 5/8" - 11 x 3", Gr 8

Diesel engine tractors Hex, 5/8"-11 x 3", G8

4шт.

223450

BOLT,Hex, 3/4" - 10 x 2", Gr 8

SCREW, 3/4-10 x 2 hex-hd cap

1шт.

20094R1

BOLT,Hex, 3/4" - 10 x 2 1/2", Gr 8

SCREW, 3/4-10 x 2-1/2 hex-hd cap

3шт.

2

65432C1

CHANNEL ASSY, RH front frame

1шт.

555301R1

BOLT,Hex, 5/8" - 11 x 1 3/8", Gr 8

SCREW, 5/8-11 x 1-3/8 hex-hd cap

4шт.

20065R1

BOLT,Hex, 5/8" - 11 x 2 1/2", Gr 8

SCREW, 5/8-11 x 2-1/2 hex-hd cap, gasoline engine tractors

2шт.

20727R1

BOLT,Hex, 5/8" - 11 x 3", Gr 8

Diesel tractors w/D-312 engine Hex, 5/8"-11 x 3", G8

4шт.

20548R1

BOLT,Hex, 5/8" - 11 x 1 3/4", Gr 8

5/8 x 1-3/4 pln type 8, diesel tractors w/D-310 engine

4шт.

223450

BOLT,Hex, 3/4" - 10 x 2", Gr 8

SCREW, 3/4-10 x 2 hex-hd cap

1шт.

20094R1

BOLT,Hex, 3/4" - 10 x 2 1/2", Gr 8

SCREW, 3/4-10 x 2-1/2 hex-hd cap

3шт.

3

65437C1

SHIELD, fan

1шт.

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

4шт.

4

NOT USED THIS APPLICATION

1шт.
