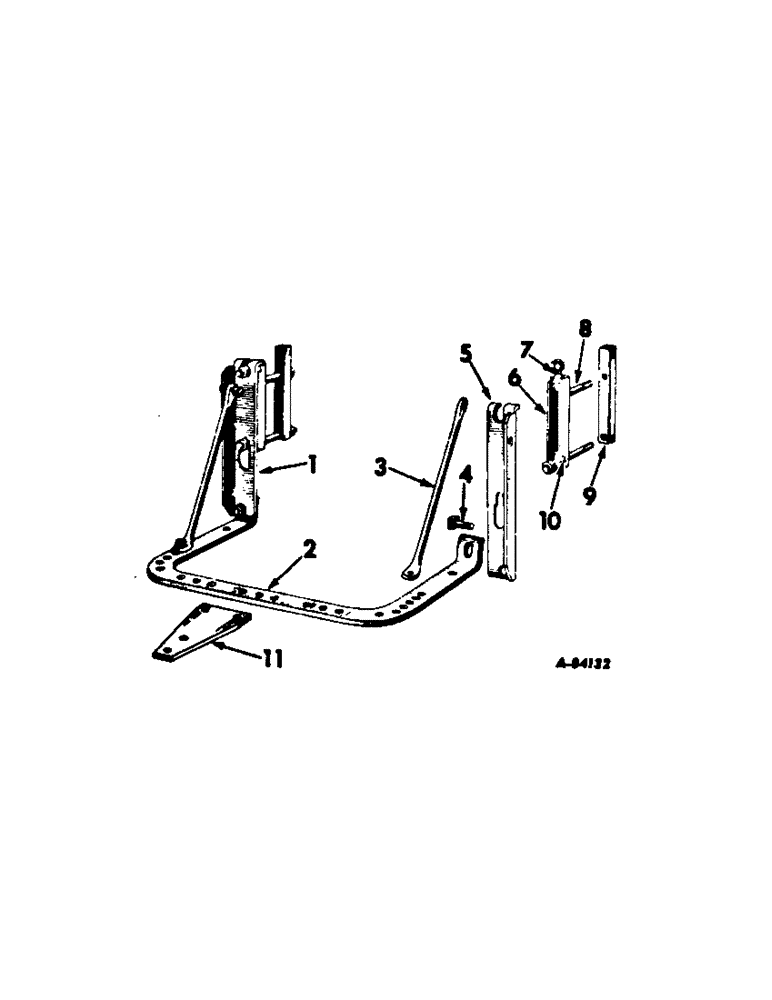

Запчасти Case IH HYDRO 70 (09-01[A]) - FRAME, FIXED DRAWBAR (12) - FRAME

1

57231DA

ANGLE, drawbar LH

1шт.

2

57230DB

DRAWBAR

1шт.

3

57233DA

ROD

BRACE, drawbar

2шт.

271613

SCREW,Hex, 3/4" - 10 x 2 1/2", Gr 5

3/4-10 x 2-1/2 hex-hd cap

2шт.

271611

BOLT,Hex, 3/4" - 10 x 2", Gr 5

SCREW, 3/4-10 x 2 hex-hd cap

2шт.

425-1012

NUT,3/4"-10, G5

3/4-10 hex

4шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

4

41111D

BOLT,3/4" - 10 x 2 3/4"

drawbar pivot

2шт.

220081

NUT

3/4-10 hex

2шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

5

57232DA

ANGLE, drawbar RH

1шт.

6

531158R91

CHANNEL

ASSY, drawbar attaching

2шт.

7

48291DAX

BOLT,W/Nut & Washer, 3/4" - 16 x 2 11/16"

ASSY, drawbar eye

4шт.

357790R1

NUT

drawbar eye bolt

4шт.

Q1552

WASHER

25/32 x 1-1/4 x 10 ga

4шт.

8

531159R1

BOLT,3/4" - 16 x 8.25"

drawbar attaching

4шт.

531160R1

NUT

3/4-16 hex

4шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

62177V

WASHER

25/32 x 1-1/2 x 3/16

4шт.

9

360903R1

CLAMP, drawbar attaching

2шт.

10

41112D

PIN

drawbar eye bolt

4шт.

11

NOT USED THIS APPLICATION

1шт.

30011DA

WRENCH, drawbar

1шт.
