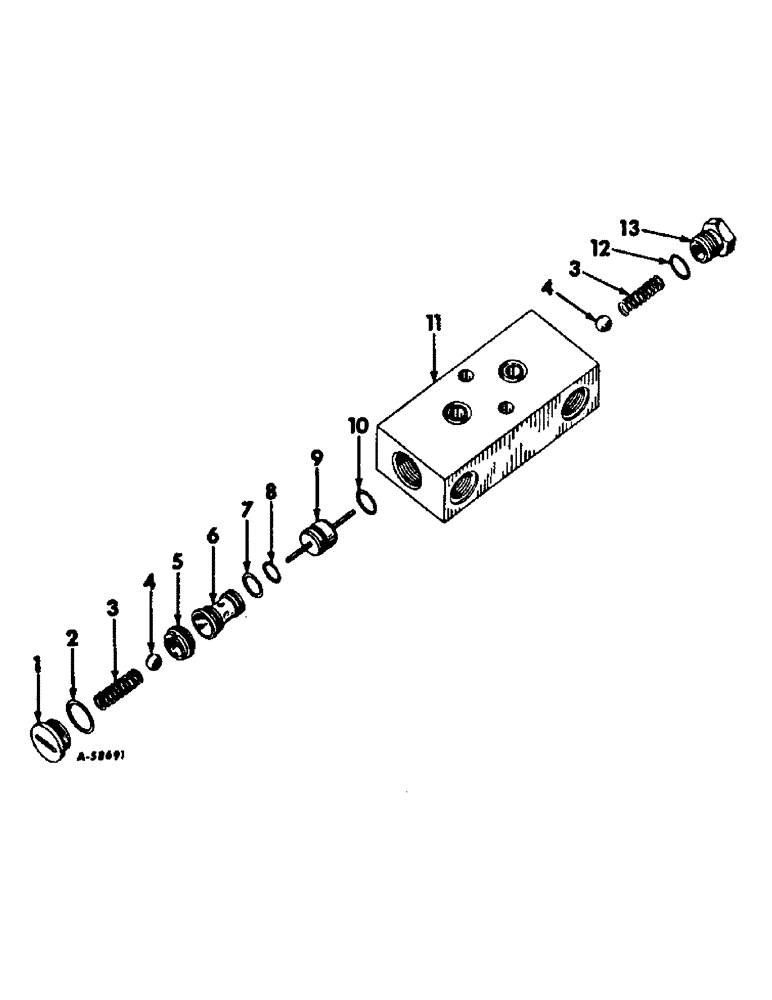

Запчасти Case IH HYDRO 70 (10-41) - HYDRAULICS, DOUBLE ACTING CHECK VALVE (07) - HYDRAULICS

374083R92

VALVE

ASSY, check

1шт.

544840R91

LOCK VALVE

VALVE ASSY, check

1шт.

546830R91

VALVE

ASSY, alternating check, parts accessory for tractors equipped with implement using hydraulic mast control or marker

1шт.

1

374088R1

PLUG

check valve large

1шт.

2

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

59/64 x 1-1/16 x 7/64, check valve plug large

1шт.

3

372649R1

SPRING

check valve

2шт.

4

17016R1

BALL,1/2" Dia

2шт.

5

374172R1

NUT

check valve ball retainer

1шт.

6

374087R21

RETAINER

ASSY, check valve ball

1шт.

7

384943R1

O-RING,0.739" ID x 0.07" Width

-018, 90 Duro, .739" ID x .070" Thk, Ball Retainer, Large

1шт.

8

383024R1

O-RING,0.07" Thk x 0.676" ID, -17, Cl 6, 90 Duro

11/16 x 13/16 x 1/16, ball retainer small

1шт.

9

374085R11

PISTON

ASSY, check valve actuator, Used w/valve assy 544840R91 & 374083R92

1шт.

9

530442R2

PISTON ASSY.

PISTON ASSY, alternating check, Used w/valve assy 546830R91

1шт.

10

606271C1

O-RING,0.103" Thk x 0.612" ID, -114, Cl 6, 90 Duro

5/8 x 13/16 x 3/32, piston

1шт.

11

BLOCK ASSY, check valve, Not serviced separately, Order check valve assy

1шт.

12

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 15/16 x 3/32, check valve plug small

1шт.

13

374089R1

PLUG

check valve small

1шт.
