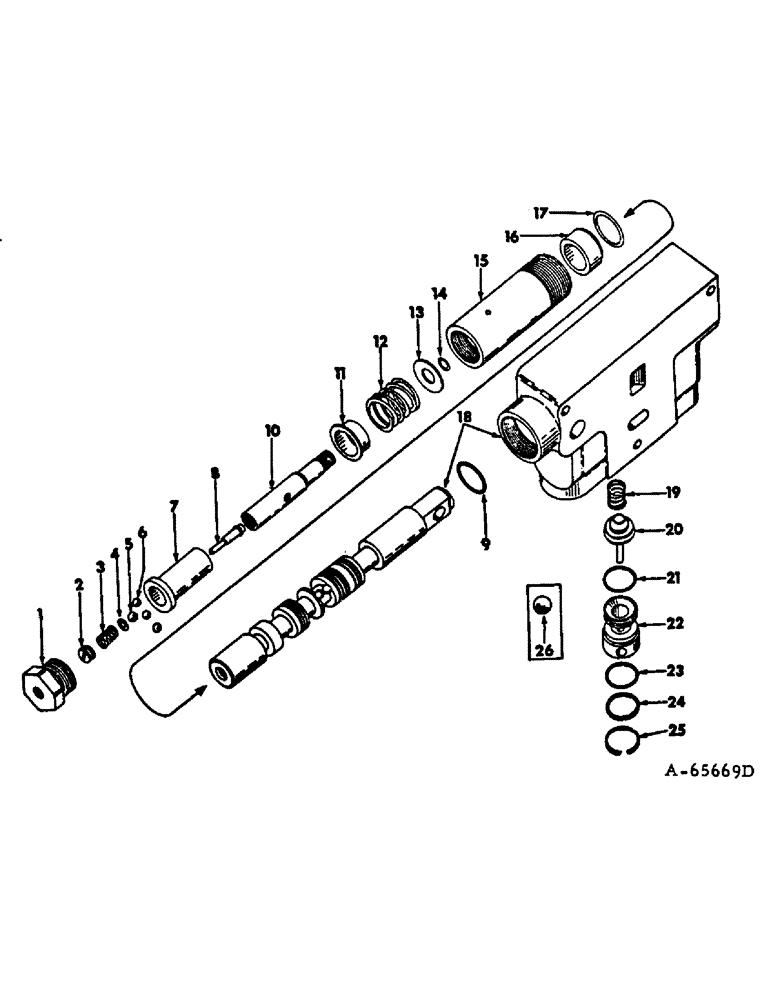

Запчасти Case IH HYDRO 70 (10-39) - HYDRAULICS, HYDRAULIC CONTROL VALVE, FOUR POSITION SPRING CENTERED (07) - HYDRAULICS

390826R94

VALVE

ASSY, hydraulic control

1шт.

383267R94

VALVE

ASSY, hydraulic control

1шт.

1

376425R1

PLUG

CAP, control valve

1шт.

432539

HOLE PLUG BUTTON,7/16"

PLUG, 7/16 stl button

1шт.

2

377803R1

PLUG

spring retaining

1шт.

3

377802R1

SPRING

detent

1шт.

4

377801R1

WASHER,5.87mm ID x 11.18mm OD x 3.81mm Thk

detent actuating ball

1шт.

5

17010R1

BALL,5/16" Dia

Detent actuating 5/16" Dia

1шт.

6

17008R1

BALL,1/4" Dia

Chrome-Steel, detent 1/4" Dia

3шт.

7

376426R2

SLEEVE

position control

1шт.

8

396582R1

PISTON ASSY.

PISTON ASSY, unlatching

1шт.

9

253070R1

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

7/8 x 1-1/8 x 1/8, S treated, control valve spool lower

1шт.

10

382659R1

BODY

ACTUATOR, centering spring

1шт.

11

376423R1

CUP

RETAINER, centering spring

1шт.

12

376422R1

VALVE SPRING

SPRING, centering

1шт.

13

376420R2

WASHER,13.34mm ID x 33.53mm OD x 1.52mm Thk

centering spring thin

1шт.

14

359158R1

O-RING,0.301" ID x 0.07" Width

-011, 70 Duro, .031" ID x .070" Thk, Actuator

1шт.

15

395783R2

SLEEVE CYLINDER

SLEEVE, cap retaining, also order retainer, 395781R3

1шт.

16

395781R3

DETENT

RETAINER, valve spool o-ring, also order sleeve, 395783R2

1шт.

17

364879R1

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

7/8 x 1-1/16 x 3/32, S treated, control valve spool upper

1шт.

18

BODY ASSY, control valve, Not serviced separately, Order valve assy

1шт.

19

395278R1

SPRING

back flow check poppet valve

1шт.

20

395277R1

VALVE

backflow check poppet, also order spring, 395278R1

1шт.

21

380839R1

O-RING,0.103" Thk x 0.862" ID, -118, Cl 6, 90 Duro

7/8 x 1-1/16 x 3/32, check valve retainer inner

1шт.

22

383280R1

VALVE

RETAINER, check poppet

1шт.

23

383219R1

O-RING,0.924" ID x 0.103" Width

Check ball retainer outer

1шт.

24

376433R1

BACK-UP RING,0.957" ID x 0.87" Width

WASHER, valve body plug o-ring back-up

1шт.

25

537603R1

RING

check ball retainer snap

1шт.

26

NOT USED IN THIS APPLICATION

1шт.

383548R92

SET OF PARTS

PACKAGE, open center control valve, Consists of

1шт.

359158R1

O-RING,0.301" ID x 0.07" Width

-011, 70 Duro, .031" ID x .070" Thk

1шт.

383219R1

O-RING,0.924" ID x 0.103" Width

1шт.

380839R1

O-RING,0.103" Thk x 0.862" ID, -118, Cl 6, 90 Duro

1шт.

253070R1

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

1шт.

364879R1

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

1шт.

383280R1

VALVE

RETAINER

1шт.

537603R1

RING

1шт.

395278R1

SPRING

1шт.

395277R1

VALVE

1шт.

376433R1

BACK-UP RING,0.957" ID x 0.87" Width

WASHER

1шт.

548788R91

STRIPPER PACKAGE

PACKAGE, four position control valve lower seal, Consists of

1шт.

364879R1

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

1шт.

395781R3

DETENT

RETAINER

1шт.

395783R2

SLEEVE CYLINDER

SLEEVE

1шт.
