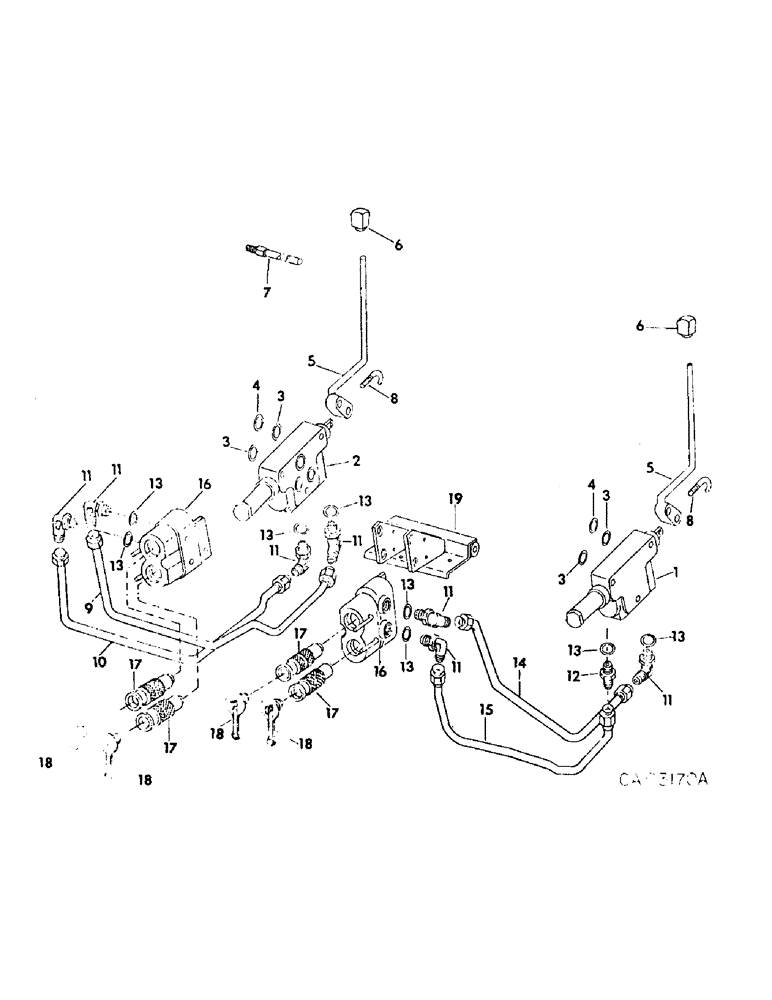

Запчасти Case IH HYDRO 70 (10-34) - HYDRAULICS, AUXILIARY VALVES AND CONNECTIONS (07) - HYDRAULICS

ATTACHMENT, double auxiliary hydraulic valve and couplers w/LH and RH rear outlets, Consists of all unmarked parts and those marked unit A

1шт.

ATTACHMENT, single auxiliary hydraulic valve and coupler w/LH rear outlet, Consists of all unmarked parts and those marked unit B

1шт.

67846C91

KIT

PARTS ACCESSORY, second auxiliary valve and manifold w/RH rear lever actuated coupler, for tractors w/single auxiliary valve and LH outlets, Consists of all parts marked unit C

1шт.

1

390826R94

VALVE

ASSY, hyd open center control, for component details refer to hydraulic control valve listing this group

1шт.

20846R1

BOLT,Hex, 3/8" - 16 x 4 5/8", Gr 8

SCREW, 3/8-16 x 4-5/8 hex-hd cap

3шт.

2

383267R94

VALVE

ASSY, hyd open center, units A and C, for component details refer to hydraulic control valve listing this group

1шт.

20846R1

BOLT,Hex, 3/8" - 16 x 4 5/8", Gr 8

SCREW, 3/8-16 x 4-5/8 type 8 hex-hd cap

3шт.

3

381884R1

O-RING,0.103" Thk x 0.987" ID, -120, Cl 6, 90 Duro

1 x 1-3/16 x 3/32, two per valve

2шт.

4

381885R1

O-RING,0.103" Thk x 1.362" ID, -126, Cl 6, 90 Duro

1-3/8 x 1-3/16 x 3/32, one per valve

1шт.

5

142377C1

LEVER

hyd open center valve actuating, Replaces 69700C1, one per valve

1шт.

6

387885R1

KNOB

lever handle, 1 per lever

1шт.

33558V

CLEVIS PIN,1/2" x 1.906"

PIN, 1/2 x 1-29/32 rod end

1шт.

395-11053

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

17/32 x 1-1/16 x .095

1шт.

108630

COTTER PIN,1/8" x 7/8"

Pin, Split (Cotter), 1/8" x 7/8"

1шт.

7

378045R1

STUD

SHAFT, hyd open center valve actuating

1шт.

8

390013R1

SCREW

ROD, valve float lockout, one per valve

1шт.

129-419

WING NUT,5/16"-18

NUT, 5/16-18 znd wing, one per valve

1шт.

9

67582C1

TUBE

ASSY, LH rear coupler upper

1шт.

10

67583C1

TUBE

ASSY, LH rear coupler lower

1шт.

11

9410978

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, O-Ring

7/8-14 c-z 37 deg hyd flared tube adj str thd 90 deg, unit A

7шт.

11

9410978

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, O-Ring

7/8-14 c-z 37 deg hyd flared tube adj str thd 90 deg, unit B

2шт.

11

9410978

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, O-Ring

7/8-14 c-z 37 deg hyd flared tube adj str thd 90 deg, unit C

3шт.

12

9410204

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR, 7/8-14 c-z 37 deg hyd flared tube short swivel, units A and c

1шт.

13

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD tube, unit A

8шт.

13

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD tube, unit B and C

4шт.

14

67584C1

TUBE

ASSY, RH rear coupler upper, units A and C

1шт.

15

67585C1

TUBE

ASSY, RH rear coupler lower, units A and C

1шт.

16

544786R94

SPARE PART

COUPLER ASSY, female, unit A, for component details refer to female coupler listing this group

2шт.

16

544786R94

SPARE PART

COUPLER ASSY, female, unit B and C, for component details refer to female coupler listing this group

1шт.

17

544787R91

COUPLING, BREAK AWAY

COUPLER ASSY, male, two per female coupler

2шт.

179880

BOLT,Hex, 1/2" - 13 x 7/8", Gr 5

SCREW, 1/2-13 x 7/8 hex-hd cap

2шт.

18

64757C2

PLUG ASSY, coupler dust, 2 per coupling

2шт.

19

536596R1

LARGE PLATE

PLATE ASSY, IPTO handle & hyd coupler support

1шт.

179835

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

2шт.

179880

BOLT,Hex, 1/2" - 13 x 7/8", Gr 5

SCREW, 1/2-13 x 7/8 hex-hd cap

2шт.
