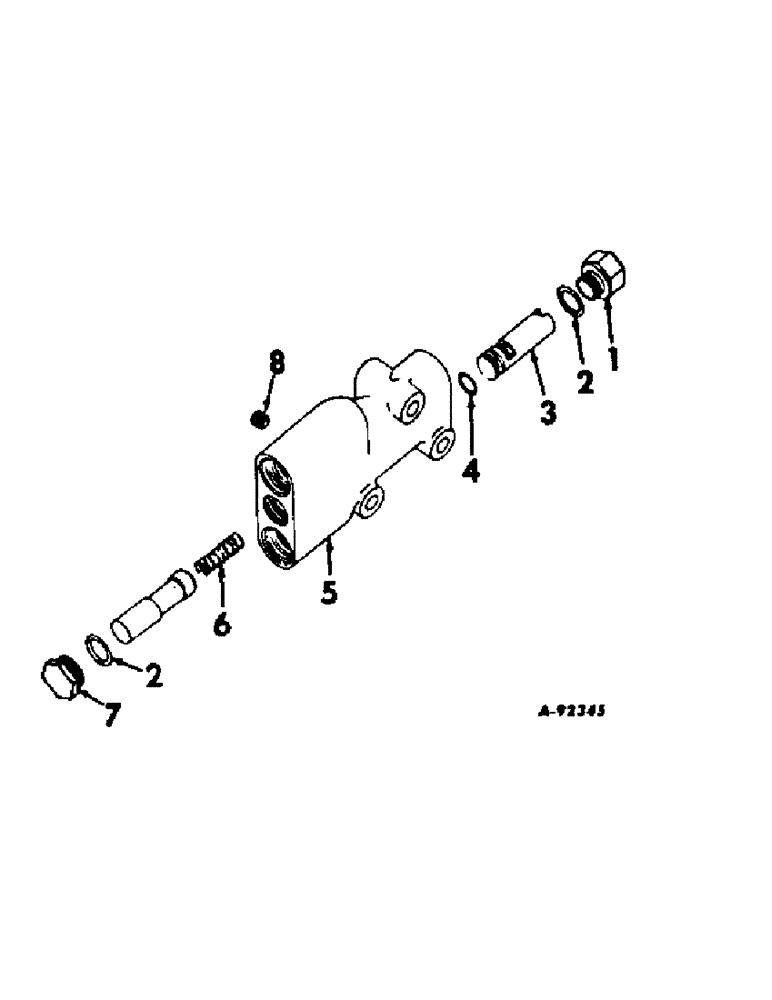

Запчасти Case IH HYDRO 70 (10-24) - HYDRAULICS, POWER STEERING FLOW DIVIDER VALVE (07) - HYDRAULICS

543960R91

LOCK VALVE

VALVE ASSY, power steering flow divider, 666 and 686 gear drive tractors

1шт.

543959R91

VALVE ASSY, power steering flow divider, 666, 70 and 86 hydrostatic drive tractors

1шт.

1

381336R1

STOP, safety valve, 666 and 686 gear drive tractors

1шт.

1

379119R1

PLUG, safety valve stop, 666, 70 and 86 hydrostatic drive tractors

1шт.

2

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 15/16 x 3/32

1шт.

SAFETY VALVE STOP

1шт.

FLOW DIVIDER STOP

1шт.

3

384444R92

VALVE

ASSY, safety

1шт.

4

702788R1

O-RING,0.103" Thk x 0.362" ID, -110, Cl 6, 90 Duro

3/8 x 9/16 x 3/32, safety valve

1шт.

5

NOT SERVICED SEPARATELY, Order flow divider valve assy

1шт.

6

379211R1

SPRING

flow divider

1шт.

7

379212R11

STOP ASSY, flow divider

1шт.

8

444655

DRAIN PLUG,Sq Soc, 1/4"-18 NPTF

PLUG, 1/4-18 auto-sq-soc pipe, 666, 70 and 86 hydrostatic drive tractors

1шт.
