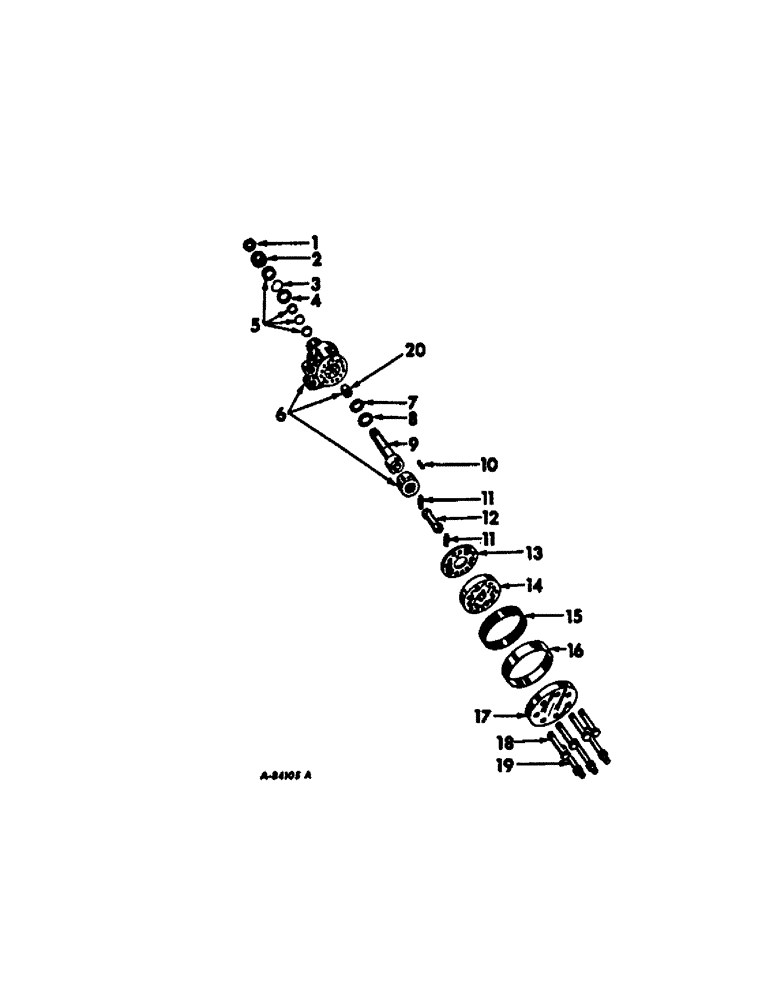

Запчасти Case IH HYDRO 70 (10-22[A]) - HYDRAULICS, HYDROSTATIC POWER STEERING HAND PUMP (07) - HYDRAULICS

1

F19646

LOCK NUT,13/16"-20, Thin

NUT, coupling shaft wheel

1шт.

2

382587R1

SEAL

dust, not included in pump assy

1шт.

3

383878R1

SNAP RING,1.25, Int, #125

Ring, Snap, 1.25", Int, #125

1шт.

4

NOT SERVICED SEPARATELY, Order service package, 123465C1

1шт.

5

123465C1

X

PACKAGE, hydrostatic steering hand pump service, Replaces 68201C2, Consists of

1шт.

SEAL (NSS)

1шт.

SEAL, spacer (NSS)

1шт.

SEAL (NSS)

1шт.

SERVICE BULLETIN (NSS)

1шт.

6

379694R91

BODY

PUMP BODY & BEARING ASSEMBLY

1шт.

7

379785R1

THRUST WASHER

RACE, needle thrust

1шт.

8

379783R91

THRUST BEARING

BEARING, needle thrust

1шт.

9

379784R1

SHAFT

coupling

1шт.

10

379700R1

PIN

pump spool

1шт.

11

379693R1

PIN

pump link

2шт.

12

379701R1

LINK

pump

1шт.

13

396545R1

PLATE

SPACER, pump

1шт.

14

384375R3

ROTOR

SET

1шт.

15

384373R1

SEAL

rotor

1шт.

16

384374R1

RETAINER

seal

1шт.

17

379698R1

COVER

pump end

1шт.

18

379699R1

BOLT,Spcl, Hex, 5/16" - 18 x 1 3/4", Gr 5, HT

pump end cover

4шт.

19

389051R1

BOLT (SPREADER),Spcl, 5/16" - 18 x 1 3/4", Gr 5

BOLT, pump end cover

3шт.

20

10026R

NEEDLE BEARING,0.875" ID x 1.1245" OD x 0.5"

BEARING, needle

1шт.

405788R91

PACKAGE

KIT, spring and vane, Consists of

1шт.

SPRING (NSS)

6шт.

VANE (NSS)

6шт.
