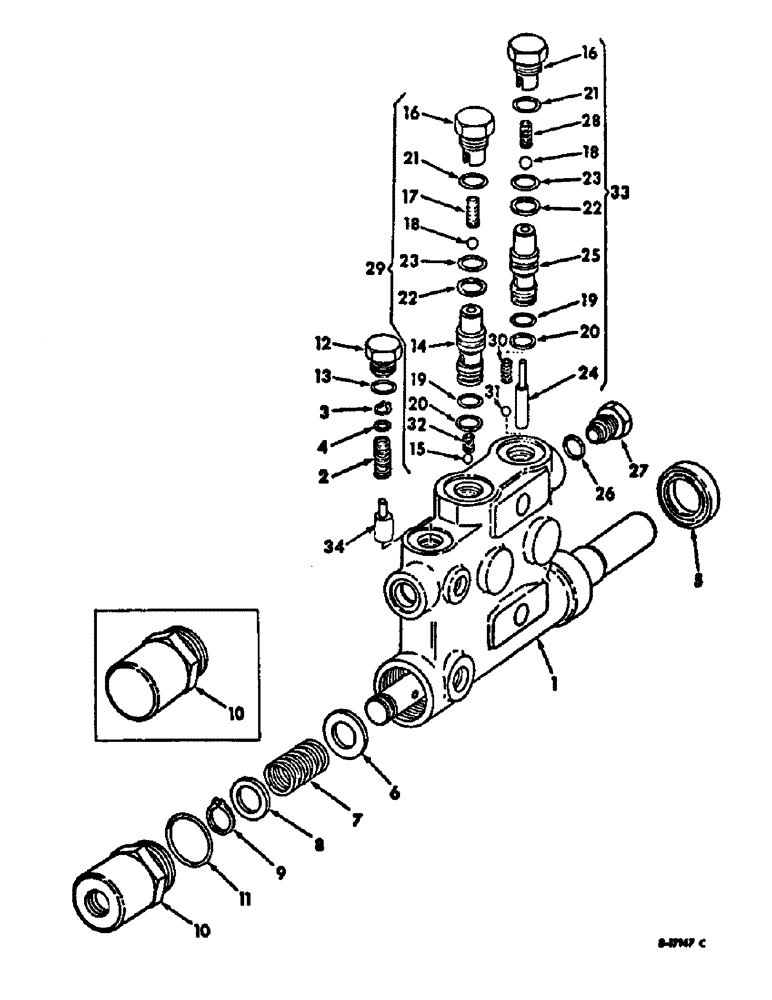

Запчасти Case IH HYDRO 70 (10-19) - HYDRAULICS, DRIVE CONTROL VALVE, 666, 70 AND 86 HYDROSTATIC DRIVE TRACTORS (07) - HYDRAULICS

406385R94

DISTRIBUTOR

VALVE ASSY, drive control, Replaces valve, 398719R95

1шт.

1

BLOCK ASSY, shuttle, not serviced separately order valve assy, 406385R94

1шт.

529850R1

PLUG, pressure, flush type

1шт.

2

400454R1

SPRING

anti-coast valve

1шт.

3

875777R1

SNAP RING,#25, Ext

Ring, Snap, #25, Ext

1шт.

4

401291R1

SPRING WASHER

anti-coast valve pin

1шт.

5

381232R91

OIL SEAL

oil

1шт.

6

398693R1

WASHER

1шт.

7

398733R1

SPRING

shuttle valve centering

1шт.

8

398694R1

WASHER

1шт.

9

398700R1

SNAP RING,#56, .524", Ext

RING, retaining

1шт.

10

398692R1

PLUG

shuttle valve, Used w/valve, 398719R95 only

1шт.

10

406388R1

PLUG, drive control valve, Used w/valve 406385R94 only

1шт.

11

297459R1

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

7/8 OD tube

1шт.

12

533567R1

PLUG

9/16-18 str thd o-ring boss

1шт.

13

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube

1шт.

14

VALVE, combination, not serviced separately order valve assy, 404497R3

1шт.

15

BALL, 7/32 dia, not serviced separately order valve assy, 404497R3

1шт.

16

BODY, check valve, not serviced separately order valve assy, 404496R3 or 404497R3

2шт.

17

SPRING, check valve, not serviced separately order valve assy, 404497R3

1шт.

18

BALL, 5/16 dia, not serviced separately order valve assy, 404496R3 or 404497R3

2шт.

19

375271R1

O-RING,0.426" ID x 0.07" Width

7/16 x 9/16 x 1/16

2шт.

20

398699R1

BACK-UP RING

RING, back up

2шт.

21

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD tube

2шт.

22

383004R1

BACK-UP RING,Split, 13.16mm ID x 15.9mm OD x 1.32mm Thk

RING, back up

2шт.

23

370920R1

O-RING,1/2" ID

1/2 x 5/8 x 1/16

2шт.

24

398696R1

PIN

lower valve lift

1шт.

25

VALVE, not serviced separately order valve assy, 404496R3

1шт.

26

369751R1

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk, 1/4 OD tube

2шт.

27

9410356

PLUG

7/16-20 str thd o-ring boss

2шт.

28

SPRING, upper check valve, not serviced separately, Order valve assy, 404496R3

1шт.

29

404497R3

VALVE

ASSY, B capsule, Less ref. nos. 19, 20, 21, 22 and 23

1шт.

30

SPRING, lower check valve, not serviced separately order valve assy, 404496R3

1шт.

31

BALL, 1/4 dia, not serviced separately order valve assy, 404496R3

1шт.

32

SPRING, low pressure relief, not serviced separately order valve assy, 404497R3

1шт.

33

404496R3

VALVE

ASSY, A capsule, Less ref. nos. 19, 20, 21, 22, 23 and 24

1шт.

34

VALVE ANTI-COAST, not serviced separately, Order valve assy, 406385R94

1шт.
