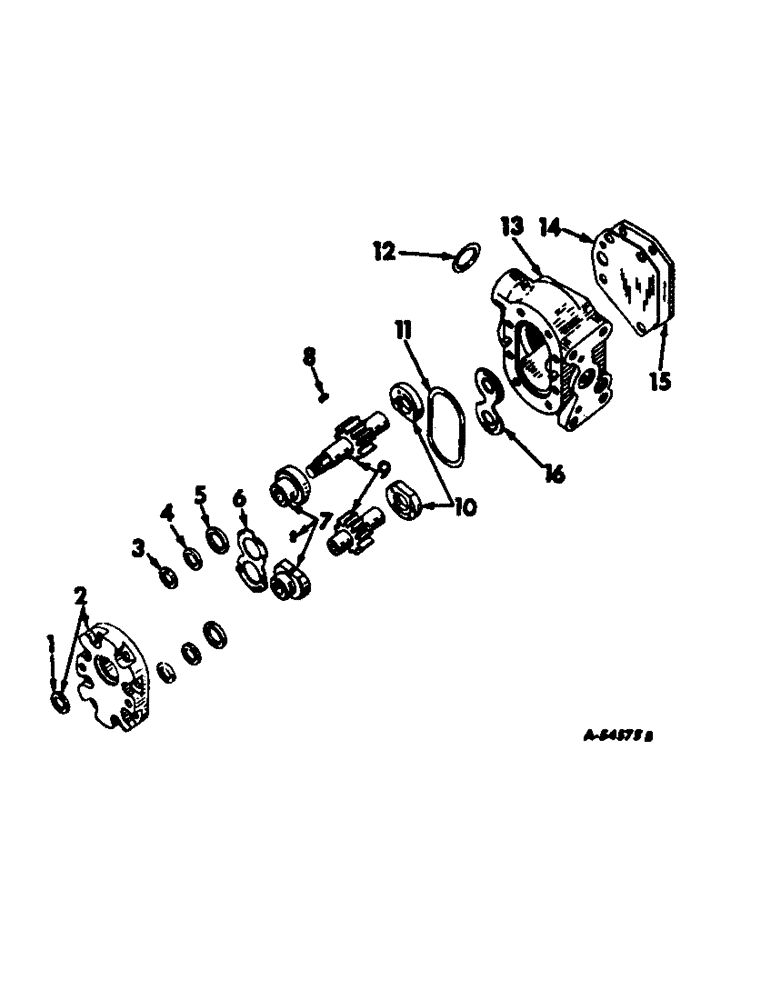

Запчасти Case IH HYDRO 70 (10-16) - HYDRAULICS, HYDRAULIC PUMP, THOMPSON, 17 GPM (07) - HYDRAULICS

PUMP ASSY, 17 GPM, no longer available furnish pump, 70935C91

1шт.

1

373157R91

OIL SEAL

SEAL, pump shaft oil

1шт.

2

COVER ASSY, pump, not serviced separately order pump assembly, 70935C91

1шт.

306354R2

12 PT SCREW

3/8-16 x 7/8 12 point cap

7шт.

528109R1

SCREW, 3/8-16 x 5/8 12 point cap

1шт.

3

WASHER, back-up, not serviced separately order pump assembly, 70935C91

2шт.

4

O-RING, pressure bearing, not serviced separately order pump assembly, 70935C91

2шт.

5

RETAINER, pressure bearing o-ring, no longer available, Furnish pump 70935C91

2шт.

6

SPRING, pressure plate, no longer available furnish pump 70935C91, not serviced separately order pump assembly, 70935C91

1шт.

7

370942R1

KEY

5/32 x 13/32 sq parallel

1шт.

8

PACKAGE, drive and driven gear, not serviced separately order pump assembly, 70935C91

1шт.

9

PACKAGE, body bearing, not serviced separately order pump assembly, 70935C91

1шт.

10

O-RING, pump cover, not serviced separately order pump assy, 70935C91

1шт.

11

252483R1

O-RING,-218, 70 Duro, 1.234" ID x .139" Thk

1-1/4 x 1-1/2 x 1/8, suction port

1шт.

12

BODY W/BEARING, pump, not serviced separately order pump assembly, 70935C91

1шт.

13

GASKET, implement pump rear cover, not serviced separately order pump assembly 70935C91

1шт.

14

COVER, implement pump rear, no longer available furnish pump, 70935C91

1шт.

15

PLATE, body wear, .10 thick, no longer available

1шт.

PACKAGE, hydraulic pump o-ring and gasket service, no longer available

1шт.
