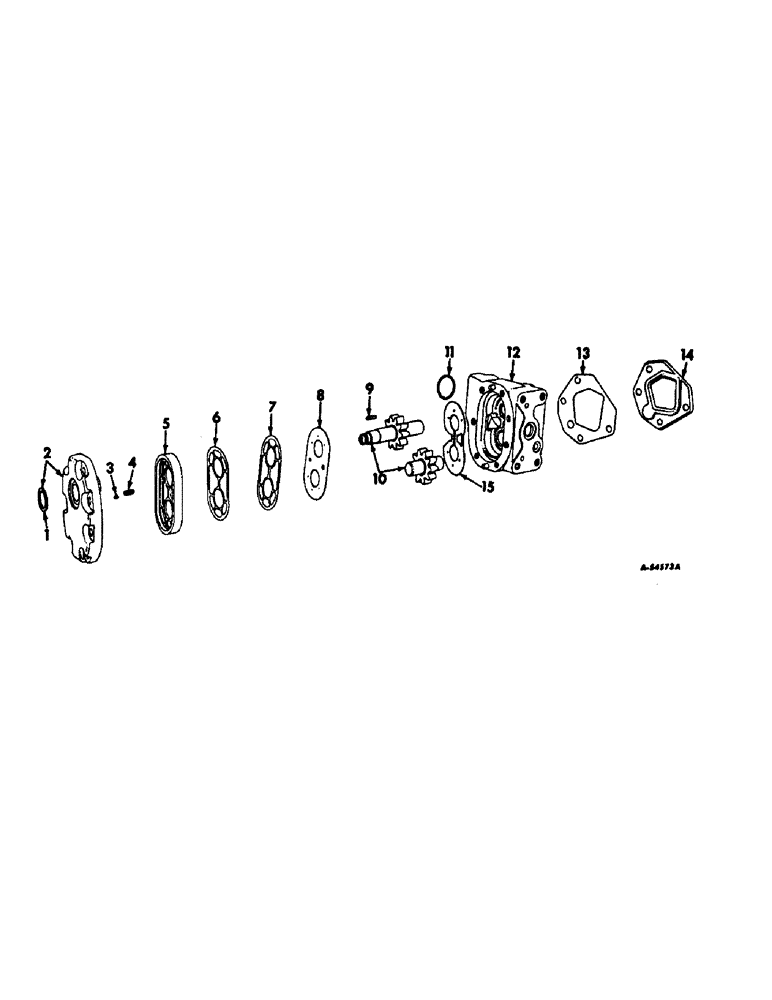

Запчасти Case IH HYDRO 70 (10-15) - HYDRAULICS, HYDRAULIC PUMP, CESSNA 17 GPM (07) - HYDRAULICS

*

70935C91

PUMP, HYDRAULIC

PUMP ASSY, hydraulic, 17 GPM, Replaces 373966R94

1шт.

70933C91 is same pump with 1.09 displacement

1шт.

70935C91 has 1.52 displacement

1шт.

*

1949292C1

REMAN-HYD PUMP

666 (1/72-12/72), 686 (1/69-12/71), HYDRO 70, HYDRO 86, Both (1/74-12/77), All INTERNATIONAL, PUMP ASSY

1шт.

*

1949293C1

CORE-HYDRAULIC PUMP

Return Number

1шт.

1

373244R91

SEAL

SEAL, pump shaft oil, for pump 373966R94 only

1шт.

1

SEAL, pump shaft oil, for 70935C91, Furnish package, 71264C1

1шт.

2

COVER ASSY, pump, not serviced separately order pump assembly

1шт.

3

17007R1

BALL

7/32 cr-stl

1шт.

4

383663R1

VALVE SPRING

SPRING, ball check

1шт.

5

SEAL, diaphragm, not serviced separately order o-ring and gasket package

1шт.

6

GASKET, protector, not serviced separately order o-ring and gasket package

1шт.

7

GASKET, back-up, not serviced separately order o-ring and gasket package

1шт.

8

DIAPHRAGM, pressure, not serviced separately order o-ring and gasket package

1шт.

9

370942R1

KEY

5/32 x 13/32 sq-parallel, Used only on pump no. 373966R94

1шт.

9

71266C1

KEY

5/32 x 1/2 sq-parallel, Used only on pump no. 70935C91

1шт.

10

PACKAGE, drive and driven gear, not serviced separately order pump assembly

1шт.

11

252483R1

O-RING,-218, 70 Duro, 1.234" ID x .139" Thk

1-1/4 x 1-1/2 x 1/8, suction port

1шт.

12

BODY W/BUSHINGS, pump, not serviced separately order pump assembly

1шт.

13

71265C1

GASKET

implement pump rear cover

1шт.

Ref #13 (P/N 71265C1) and #14 (P/N 371524R1) - not included in 70935C91 pump

1шт.

14

371524R1

LARGE PLATE

COVER, implement pump rear

1шт.

15

PLATE, thrust, not serviced separately order o-ring and gasket package

1шт.

*

373969R94

GASKET KIT

PACKAGE, hydraulic pump o-ring and gasket service, for pump 373966R94, Consists of

1шт.

*

DIAPHRAGM (NSS)

1шт.

*

GASKET (NSS)

1шт.

*

GASKET (NSS)

1шт.

*

GASKET (NSS)

1шт.

*

373244R91

SEAL

1шт.

*

252739R1

O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro

1шт.

*

252483R1

O-RING,-218, 70 Duro, 1.234" ID x .139" Thk

1шт.

*

254691R1

O-RING,-211, 70 Duro, .796" ID x .139" Thk

1шт.

*

352221R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

1шт.

*

PLATE (NSS)

1шт.

*

SEAL (NSS)

1шт.

*

71264C1

SEAL KIT

PACKAGE, hydraulic pump o-ring and gasket service, for pump 70935C91, Consists of

1шт.

*

DIAPHRAGM (NSS)

1шт.

*

O-RING (NSS)

1шт.

*

SPRING (NSS)

1шт.

*

THRUSTPLATE (NSS)

1шт.

*

GASKET (NSS)

1шт.

*

SEAL (NSS)

1шт.

*

GASKET (NSS)

1шт.

*

STEELBALLL (NSS)

1шт.

*

SEAL (NSS)

1шт.
