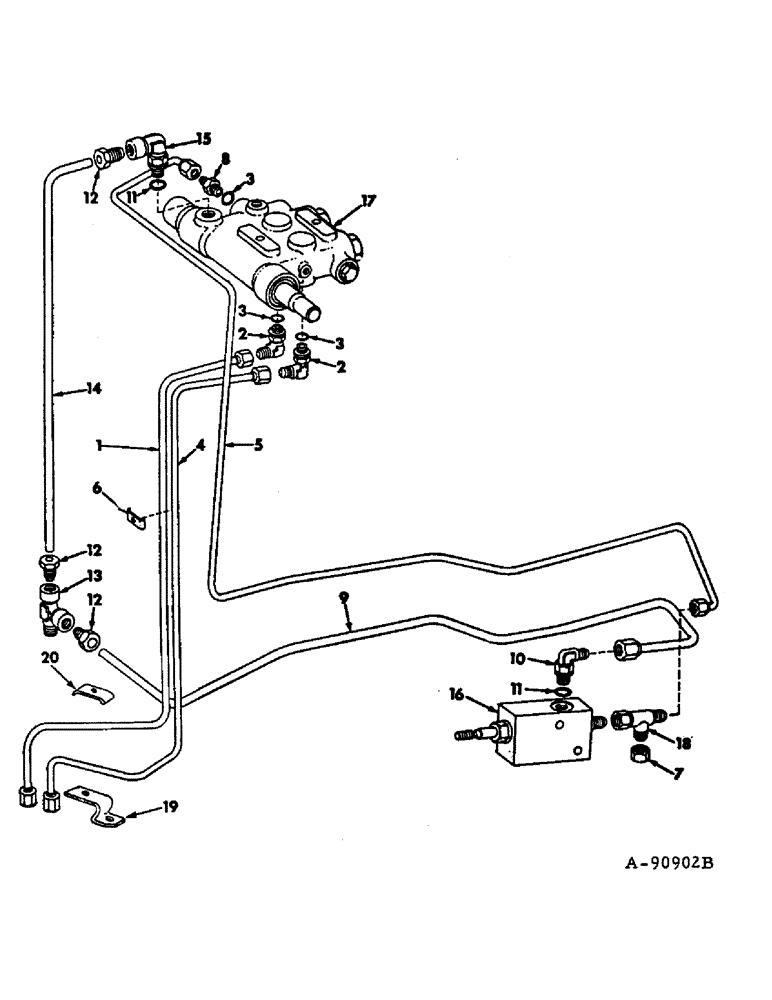

Запчасти Case IH HYDRO 70 (10-10) - HYDS., DRIVE CONTROL, FOOT-N-INCH VALVE, TUBES & RELATED PARTS, 666, 70 & 86 HYDROSTATIC DRIVE TRAC. (07) - HYDRAULICS

1

398774R1

TUBE

ASSY, shuttle valve forward port

1шт.

2

9410974

ELBOW,90 Degree, 7/16"-20, 37 Degree x 7/16"-20, O-Ring

7/16-20 37 deg hyd flared tube adj str thd 90 deg

2шт.

3

369751R1

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

3шт.

4

398776R1

TUBE

ASSY, shuttle valve reserve port

1шт.

5

400924R1

TUBE

ASSY, feather valve high pressure

1шт.

6

384891R11

CLAMP

STRIP ASSY, hyd tube clamp

1шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1шт.

282328C1

WASHER

9/32 x 1-1/8 x 16 ga

1шт.

7

9403369

CAP,37 Degree, 7/16"-20

7/16-20 37 deg hyd flared tube

1шт.

8

9410200

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB

UNION, 7/16-20 c-z deg hyd flared tube short swivel

1шт.

9

400925R1

TUBE

ASSY, feather valve drain

1шт.

10

9410975

ELBOW,90 Degree, 1/2"-20, 37 Degree x 1/2"-20, O-Ring

1/2-20 37 deg hyd flared tube adj str thd 90 deg

1шт.

11

369384R1

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5-1, 90 Duro, .414" ID x .072" Thk, 5/16 OD tube

2шт.

12

222-503

TUBE NUT,1/2"-20

NUT, 1/2-20 hi-duty tube fitting

3шт.

13

61794D

TEE,1/8" NPT Run x 1/2"-20 BR

UNION, 1/2-20 hi-duty tube fitting tee

1шт.

14

398781R1

TUBE

shuttle valve drain

1шт.

15

398782R1

ELBOW

5/16 hi-duty adj

1шт.

16

398705R91

VALVE

ASSY, foot-n-inch, for components see list of parts under details of pilot relief valve

1шт.

17

406385R94

DISTRIBUTOR

VALVE ASSY, drive control, for components see list of parts under details of drive control valve

1шт.

18

9410330

TEE,37 Degree, 7/16"-20 x 7/16"-20, Fem Sw Run

7/16-20 deg hyd flared tube 90 deg swivel

1шт.

19

404250R2

BRACKET

forward & reverse shuttle tube

1шт.

20

404251R2

CLAMP

forward & reverse shuttle tube

1шт.

179793

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

1шт.
