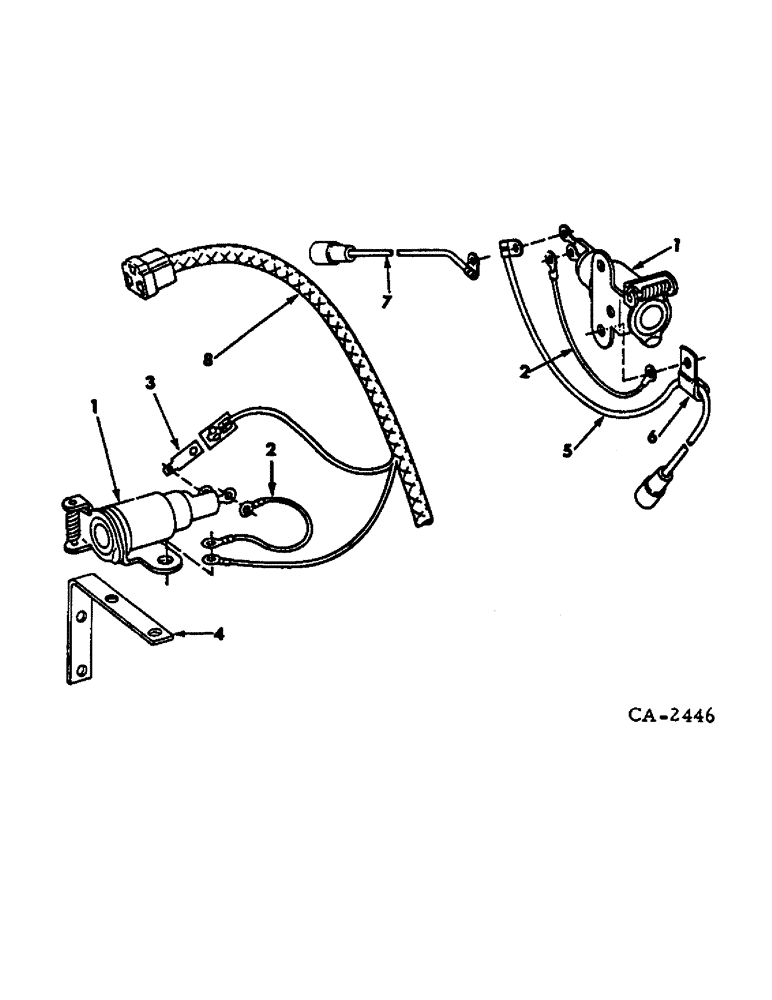

Запчасти Case IH HYDRO 70 (08-25) - ELECTRICAL, ELECTRIC BREAKAWAY SOCKET (06) - ELECTRICAL

537084R91

PARTS ACCESSORY, electric breakaway connector socket, Consists of all unmarked parts and those marked unit A

1шт.

1

362002R92

SOCKET

ASSY, electric breakaway

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2 used units B and E 1/4"-20, G5

2шт.

64022H

SCREW, 8-32 x 5/16 c-z slt-fil-hd mach

2шт.

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

SCREW, 1/4-20 x 5/8 hex-hd cap, 2 used unit B and D

2шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2 used units B and E Hex, 1/4"-20 x 3/4", G5, Full Thd

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , 2 used units B, D, and E 1/4"

2шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

2шт.

2

404395R1

CABLE

ASSY, breakaway connector, Serial Range: socket-ground

1шт.

3

384396R1

SPADE TERMINAL,Male

TERMINAL, breakaway connector, units A, B, C, D and F

1шт.

4

537081R2

BRACKET, electric breakaway connector socket, units A, C, and F

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

4 used units A, C and F 1/4"-20, G5

4шт.

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

SCREW, 1/4-20 x 1/2 hex-hd cap, 2 used units C and F

2шт.

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

SCREW, 1/4-20 x 5/8 hex-hd cap, 2 used unit A

2шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2 used units A, C and F Hex, 1/4"-20 x 3/4", G5, Full Thd

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , 4 used units A, C and F 1/4"

1шт.

5

406688R1

CABLE

ASSY, breakaway connector, Unit A

1шт.

5

405235R1

CABLE ASSY, breakaway connector, Units A, B and F

1шт.

6

395228R1

CABLE CLIP

CLIP, breakaway connector cable, Unit A

1шт.

6

370821R1

CLIP,ELECTRICAL

CLIP, breakaway connector cable, Units A, B and F

1шт.

7

405877R1

HARNESS

CABLE ASSY, harness junction to breakaway connector socket, Unit E

1шт.

8

HARNESS ASSY, combination light, Refer to starting and lighting listing, this section

1шт.
