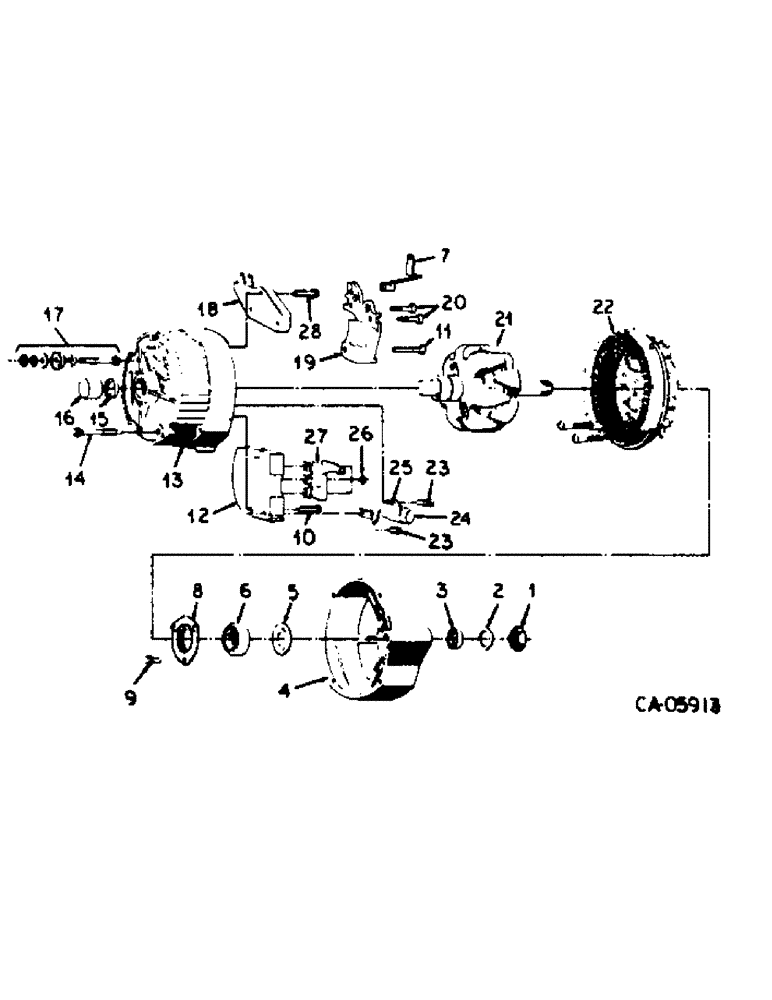

Запчасти Case IH HYDRO 70 (08-21) - ELECTRICAL, ALTERNATOR-GENERATOR, WITH INTEGRAL SOLID STATE VOLTAGE REGULATOR (06) - ELECTRICAL
№
Артикул
Название
Примечание
Количество
1103971
ALTERNAOTR GENERATOR, 42 ampere, Replaces 1102920
1шт.
1
1915172
NUT
drive shaft end
1шт.
2
1941978
WASHER
drive end shaft lock
1шт.
3
A49733
COLLAR
drive end shaft, outside, 1 inch O.D., Use w/frame 1976137 & 1976808
1шт.
3
1959991
COLLAR
drive end shaft, outside, 7/8 inch O.D., Use w/frame 1970525
1шт.
4
1976808
FRAME
PACKAGE, drive end frame, Replaces 1970525 & 1976137, Consists of frame, bolt, sleeve and instructions
1шт.
5
800832
WASHER
drive end grease slinger, Used w/frame 1970525
1шт.
6
539103R91
BEARING ASSY,0.6693" ID x 1.5748" OD x 0.4724"
drive end ball
1шт.
7
1894568
ELEC CONNECTOR
TERMINAL, relay
1шт.
8
1971993
PLATE
drive end ball bearing retaining
1шт.
9
A46941
SCREW,Hex Washer, #10 - 24 x 0.52"
bearing retainer plate attaching
3шт.
10
1876668
SCREW
recitifier bridge
1шт.
11
1974020
SCREW
brush holder
1шт.
12
1891055
SUPPORT
recitifier
1шт.
13
1975718
FRAME
PACKAGE, slip ring end frame, Replaces 1894570, Consists of frame, bolt, bearing, and instructions
1шт.
14
1956975
BOLT
frame attaching
4шт.
15
SEAL, slip, ring end roller bearing, Furnished as part of 9436831
1шт.
16
9436831
BEARING
slip ring end roller
1шт.
17
1975471
PACKAGE
battery output terminal, Replaces 1846900
1шт.
18
1116392
REGULATOR
voltage, Replaces 1116387, Used w/alternator 1102920
1шт.
18
1116387
VOLTAGE REGULATOR
REGULATOR, voltage, Used w/alternator 1103171
1шт.
19
1894559
HOLDER
ASSY, brush and brush
1шт.
20
1876681
SCREW
ASSY, brush holder
2шт.
21
1876163
ROTOR
ASSY
1шт.
22
1894594
STATOR
ASSY, 42 ampere
1шт.
23
1851612
SCREW
W/LOCK WASHER, capacitor bracket and lead attaching
2шт.
24
1971411
CAPACITOR
ASSY
1шт.
25
1869573
BRACKET
capacitor mounting
1шт.
26
453996
NUT,#8-32
no. 8 cdp hex mach screw type 1
3шт.
27
1971528
RECTIFIER
RECITIFIER, diode trio
1шт.
28
1894586
SCREW
ASSY, brush holder ground
1шт.
Выбрано товаров: 31
