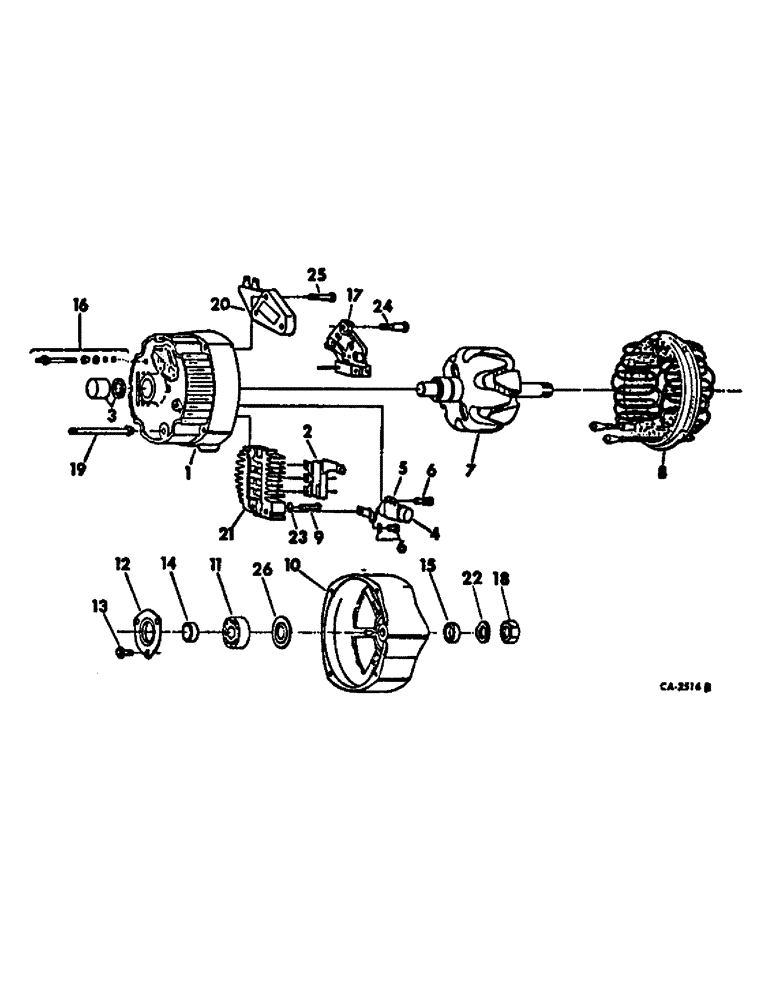

Запчасти Case IH HYDRO 70 (08-20) - ELECTRICAL, ALTERNATOR-GENERATOR, DELCO-REMY (06) - ELECTRICAL

1100593

ALTERNATOR-GENERATOR, 37 ampere, Order 1103171

1шт.

1100578

ALTERNATOR

ALTERNATOR-GENERATOR, 37 ampere, Order 1103171

1шт.

103798A1GV

ALTERNATOR

Value, 12V, 63A

1шт.

103798A1R

REMAN-ALTERNATOR

Remanufactured Alternator, 12 volt 63 ampere. Wire Clocked At 3 O'Clock

1шт.

103798A1C

CORE-ALTERNATOR

Return Part Number

1шт.

103800A1R

REMAN-ALTERNATOR

Remanufactured Alternator, 12 volt 63 ampere. Wire Clocked At 12 O'Clock

1шт.

103800A1C

CORE-ALTERNATOR

Return Number

1шт.

87297244

REMAN-ALTERNATOR

Reman For New PN 1100578

1шт.

87297245

CORE-ALTERNATOR

Return Part Number

1шт.

87297246

REMAN-ALTERNATOR

Reman For New PN 1100578

1шт.

87297247

CORE-ALTERNATOR

Return Part Number

1шт.

103799A1R

REMAN-ALTERNATOR

Remanufactured 12 VOLT, 63 AMP Alternator

1шт.

103799A1C

CORE-ALTERNATOR

Return Part Number, 12 Volt, 63 Amp Alternator

1шт.

103801A1R

REMAN-ALTERNATOR

Reman For New PN 1100578

1шт.

103801A1C

CORE-ALTERNATOR

Return Part Number

1шт.

A47625

ALTERNATOR

ALTERNATOR - 12 Volt 72 ampere

1шт.

103804A1GV

ALTERNATOR

Value, 12V, 72A

1шт.

103804A1R

REMAN-ALTERNATOR

Remanufactured Alternator, 12 volt 72 ampere

1шт.

103804A1C

CORE-ALTERNATOR

Return Part Number

1шт.

103802A1R

REMAN-ALTERNATOR

Reman For New PN A47625

1шт.

103802A1C

CORE-ALTERNATOR

Return Part Number

1шт.

1100583

GENERATOR

ALTERNATOR-GENERATOR W/REG, 42 ampere, Order 1103171

1шт.

1

1852101

FRAME

FRAME, slip ring end

1шт.

2

1971528

RECTIFIER

DIODE TRIO, negative

1шт.

3

423649C91

BALL BEARING

BEARING, slip ring end

1шт.

4

1971411

CAPACITOR

CAPACITOR

1шт.

5

1869573

BRACKET

BRACKET, capacitor

1шт.

6

1851612

SCREW

SCREW, capacitor bracket

2шт.

7

1891598

ROTOR

ROTOR ASSY, Replaces rotor, 1846657 and 1876470

1шт.

8

1971986

STATOR

STATOR ASSY

1шт.

9

1876668

SCREW

SCREW, recitifier bridge attaching

1шт.

10

1976808

FRAME

PACKAGE, drive end frame, Replaces 1970525, Consists of

1шт.

*

FRAME (NSS)

1шт.

*

BOLT (NSS)

1шт.

*

SLEEVE (NSS)

1шт.

*

INSTRUCTIONS (NSS)

1шт.

11

539103R91

BEARING ASSY,0.6693" ID x 1.5748" OD x 0.4724"

BEARING, drive end ball

1шт.

12

1971993

PLATE

PLATE, drive end ball bearing retainer

1шт.

13

1965104

HOSE

SCREW, retainer plate attaching

3шт.

14

1963139

COLLAR CLAMP

COLLAR, inside drive end, Used w/rotor 1876470 only

1шт.

15

1959991

COLLAR

COLLAR, outside drive end, Used w/rotor 1846657 only

1шт.

16

1975471

PACKAGE

PACKAGE, battery output terminal, Replaces 1846900

1шт.

17

1876873

HOLDER

BRUSH HOLDER AND BRUSH

1шт.

18

1915172

NUT

NUT, drive end shaft

1шт.

19

1965975

BOLT, thru

4шт.

20

1116387

VOLTAGE REGULATOR

REGULATOR

1шт.

21

1875627

HOLDER

BRIDGE, positive recitifier

1шт.

22

1941978

WASHER

WASHER, drive end shaft nut lock

1шт.

23

1847933

WASHER

WASHER, recitifier bridge attaching screw spring

3шт.

24

1876681

SCREW

SCREW, insulated brush holder

2шт.

25

1876682

SCREW

SCREW, ground brush holder

1шт.

26

800832

WASHER

WASHER, drive end grease slinger

1шт.

1894976

STRIPPER PACKAGE

PACKAGE, alternator generator conversion, Consists of

1шт.

*

CABLE ASSY (NSS)

1шт.

1894559

HOLDER

HOLDER ASSY, brush & brush

1шт.

1894570

FRAME

FRAME ASSY, slip ring end

1шт.

9436831

BEARING

BEARING, slip ring end frame

1шт.

1961323

SEAL

SEAL, oil

1шт.

1894586

SCREW

SCREW ASSY, reg ground

1шт.

1974020

SCREW

SCREW, brush holder pivot

1шт.

1894568

ELEC CONNECTOR

TERMINAL, relay

1шт.

1876681

SCREW

SCREW ASSY, brush holder insulated

2шт.

*

CONNECTOR (NSS)

1шт.

*

INSTRUCTIONS (NSS)

1шт.

*

TERMINAL, stud (NSS)

1шт.

*

INSULATOR (NSS)

1шт.

*

NUT ASSY (NSS)

1шт.
