(07-55) - DRIVE TRAIN, DRIVE SHAFT, TRACTORS WITH SERIAL NO. 11080 AND ABOVE

Запчасти Case IH HYDRO 186 (07-55) - DRIVE TRAIN, DRIVE SHAFT, TRACTORS WITH SERIAL NO. 11080 AND ABOVE (04) - Drive Train

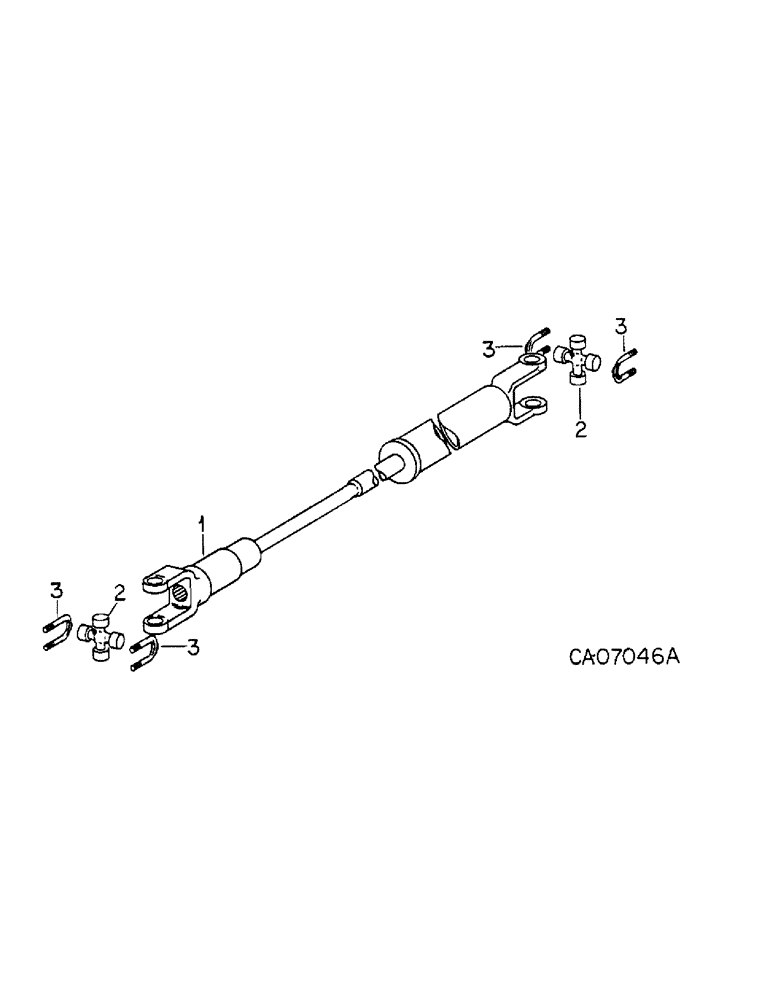

Схема запчастей Case IH HYDRO 186 - (07-55) - DRIVE TRAIN, DRIVE SHAFT, TRACTORS WITH SERIAL NO. 11080 AND ABOVE (04) - Drive Train
3
3
3
2
2
1
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

1251798C91

SHAFT

ASSY, drive, tractors w/IPTO & bolster mount saddle

1шт.

1

149008C93

SHAFT

ASSY, drive, tractors w/side mount saddle

1шт.

2

133137C91

KIT

SPIDER ASSY, cross & brg, part of 149008C93 and 1251798C91

2шт.

3

204138R1

BOLT,7/16" - 20 x 2 1/4"

U-BOLT

4шт.

271505

BODY

7/16-NF pln type 5

8шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

8шт.
