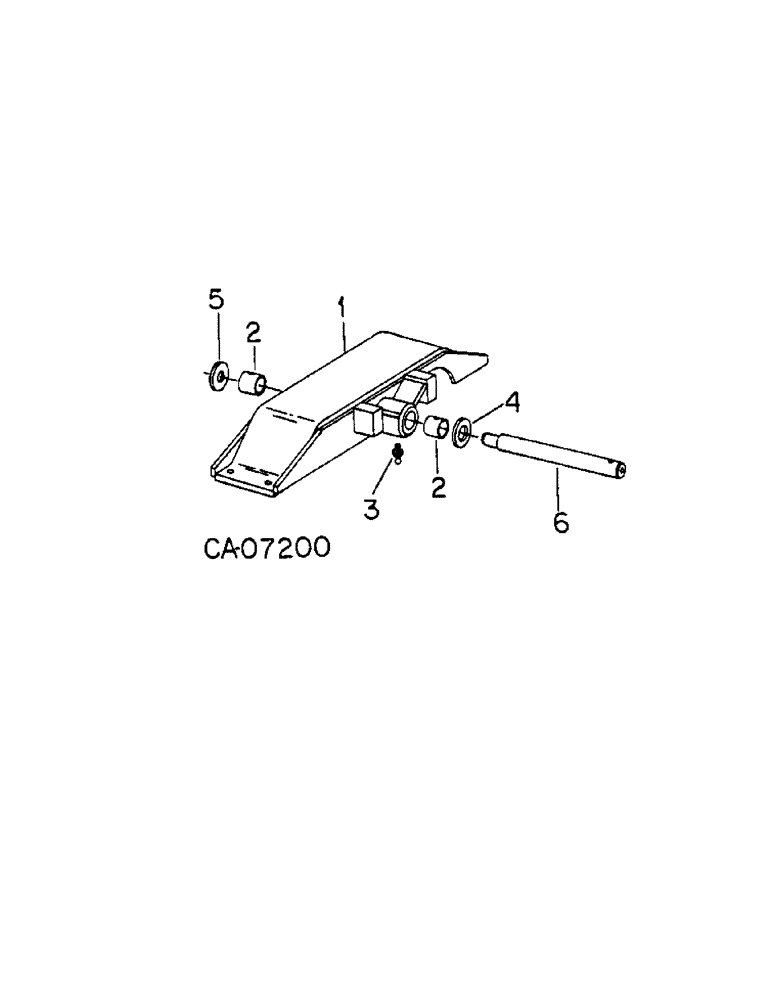

Запчасти Case IH HYDRO 186 (07-52[A]) - DRIVE TRAIN, TRACTORS WITH ALL WHEEL DRIVE, ELWOOD FRONT AXLE, SERIAL NO. 11580 AND BELOW (04) - Drive Train

1

1259667C1

SADDLE

axle mounting, replaces 1251733C1

1шт.

20523R1

BOLT,5/8" x 2 1/2", Gr 8

5/8-NF x 2-1/2 type 8

1шт.

144423H

LOCK NUT,5/8" - 18, GC

NUT, LOCK, 5/8"-18, GC

1шт.

2

1251734C1

BUSHING

2шт.

3

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

2шт.

4

1251735C1

WASHER

pivot tube, front, spacer

1шт.

5

1251736C1

WASHER

pivot tube, rear, spacer

1шт.

6

1251737C1

AXLE PIN

PIN, pivot

1шт.

28431R1

HEADED PIN,3/8" x 6 1/8"

PIN, 3/8 x 6-1/8 x 5.984 hd type 5

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.
