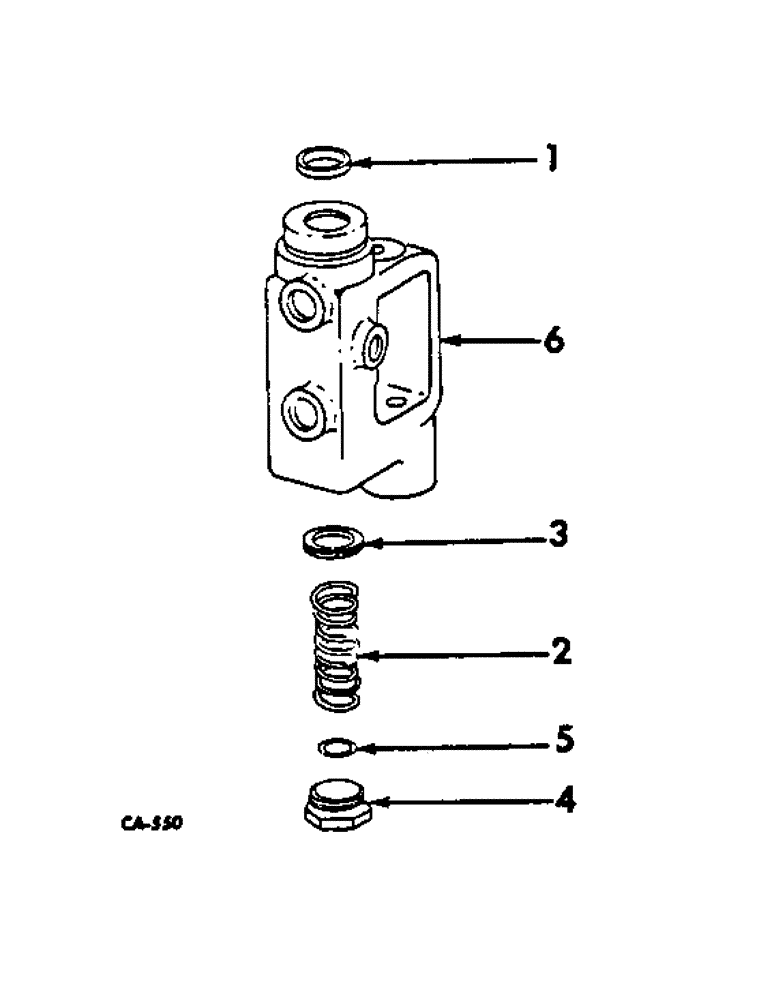

Запчасти Case IH HYDRO 186 (07-33) - DRIVE TRAIN, DIFFERENTIAL LOCK VALVE (04) - Drive Train

65416C92

LOCK VALVE

VALVE ASSY, differential lock

1шт.

1

350429R1

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

5/8 x 13/16 x 3/32

1шт.

2

113797C1

VALVE SPRING

SPRING, valve spool

1шт.

3

23843R1

SNAP RING,#62, .590", Ext, Spiral

RING, valve spool spring retaining

1шт.

4

529007R1

PLUG

o-ring boss

1шт.

5

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 15/16 x 3/32

1шт.

6

BODY, differential lock valve, not serviced separately, order valve assy, 65416C92

1шт.
