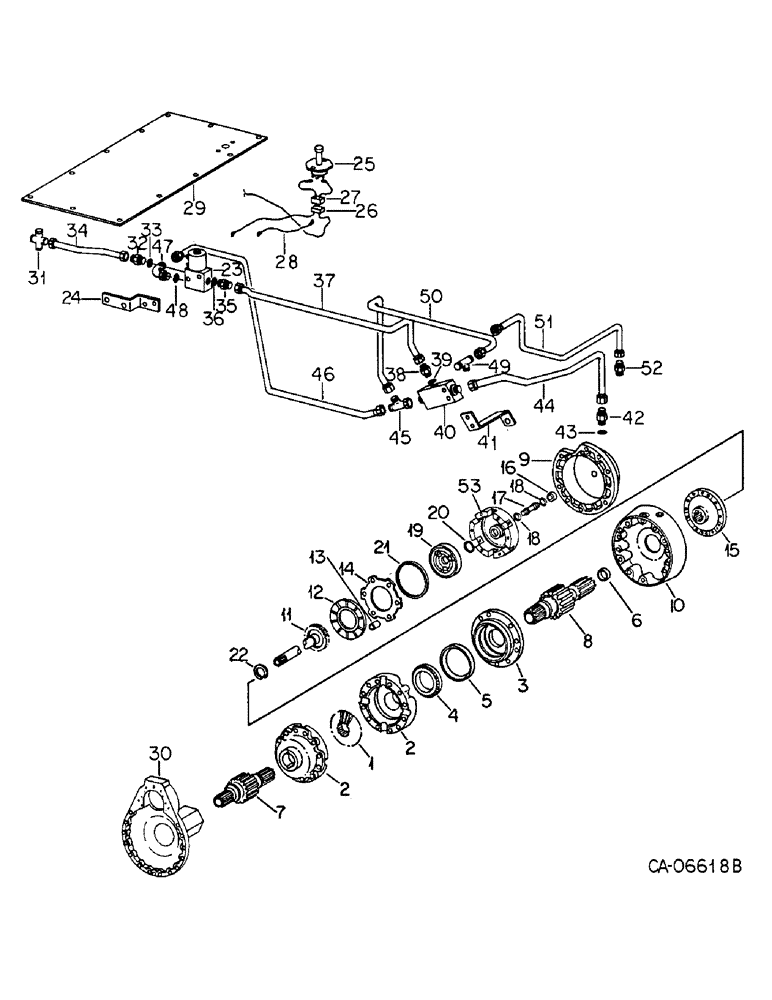

Запчасти Case IH HYDRO 186 (07-31) - DRIVE TRAIN, DIFFERENTIAL LOCK ATTACHMENT, TRACTOR WITH SERIAL NO. 10012 AND ABOVE (04) - Drive Train

1

529022R2

GEAR

differential bevel RH, 28T

1шт.

2

534524R92

CASE

ASSY, differential

1шт.

3

68684C1

RETAINER

differential brg RH

1шт.

4

ST2104

BEARING ASSY

RH roller cone

1шт.

5

ST986

TAPERED BEARING,133.35mm OD x 22.28mm W

BEARING, RH roller cup

1шт.

6

283375R91

NEEDLE BEARING

ASSY, needle

1шт.

7

104704C1

SHAFT

bull pinion and brake LH

1шт.

8

104702C1

SHAFT

bull pinion and brake RH

1шт.

9

104667C1

COVER

diff lock

1шт.

10

104668C2

HOUSING

RH brake diff lock

1шт.

104706C1

BOLT

BOLT, diff lock cover

4шт.

413-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 5

5/8 x 4 pln type 5, Course Threads

2шт.

11

104669C1

SHAFT

inner

1шт.

12

71914C92

PACKAGE

diff lock service, consists of (6) disc, clutch driven (NSS), (7) plate, clutch drive (NSS)

1шт.

350818R1

O-RING,0.984" ID x 0.139" Width

clutch piston inner

1шт.

22412R1

O-RING,0.139" Thk x 4.734" ID, -248, Cl 5, 75 Duro

-248, 70 Duro, 4.734" ID x .139" Thk, clutch piston outer

1шт.

355966R1

O-RING,0.424" ID x 0.103" Width

7/16 x 5/8 x 3/32

2шт.

104673C1

THRUST WASHER

thrust

1шт.

13

104670C1

BUSHING

diff lock stop, spacer

3шт.

14

104705C1

PLATE

diff lock clutch primary

1шт.

15

104671C91

HOUSING

ASSY, piston, consists of (1) carrier (NSS), (1) housing, ref 53, (2) pin 20040R1, (1) plug 9409954

1шт.

413-436

BOLT,Hex, 1/4" - 20 x 2-1/4", Gr 5

1/4 x 2-1/4 pln type 5

6шт.

16

104673C1

THRUST WASHER

thrust

1шт.

17

104714C1

SPOOL

diff lock feed

1шт.

18

355966R1

O-RING,0.424" ID x 0.103" Width

7/16 x 5/8 x 3/32

2шт.

19

104674C1

PISTON

diff lock

1шт.

20

350818R1

O-RING,0.984" ID x 0.139" Width

1 x 1-1/4 x 1/8

1шт.

21

22412R1

O-RING,0.139" Thk x 4.734" ID, -248, Cl 5, 75 Duro

-248, 70 Duro, 4.734" ID x .139" Thk

1шт.

22

269916R1

SNAP RING,#212, Ext

Ring, Snap, #212, Ext

1шт.

23

VALVE ASSY, block and solenoid, consists of

1шт.

138173C1

BODY

block

1шт.

For use with pow-r-oil hyds valve #96200.

1шт.

138172C94

VALVE

ASSY, solenoid

1шт.

For use with pow-r-oil hyds valve #96200.

1шт.

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD tube

1шт.

For use with pow-r-oil hyds valve #96200.

1шт.

391914R1

O-RING,0.07" Thk x 0.426" ID, -13, Cl 6, 90 Duro

7/16 x 9/16 x 1/16

1шт.

For use with pow-r-oil hyds valve #96200.

1шт.

382997R1

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1/2 x 5/8 x 1/16

1шт.

For use with pow-r-oil hyds valve #96200.

1шт.

224391C91

VALVE

ASSY, solenoid

1шт.

For use with gould inc. valve # SK2365B.

1шт.

224392C1

BODY

block

1шт.

For use with gould inc. valve # SK2365B.

1шт.

224393C1

PACKAGE

KIT, seal

1шт.

For use with gould inc. valve # SK2365B.

1шт.

24

139005C2

BRACKET

ASSY, diff lock solenoid

1шт.

179801

BOLT,Hex, 1/4" - 20 x 1 1/2", Gr 5

2шт.

26309R1

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

3/8 x 3/4 PHC p/t type 8

2шт.

25

131332C2

IGNITION SWITCH

SWITCH ASSY, diff lock actuating

1шт.

86505867

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

26

139136C1

CABLE

ASSY, fuse block to diff lock switch junction

1шт.

27

139137C1

CABLE

ASSY, diff lock switch junction

1шт.

28

139138C1

CABLE

ASSY, diff lock to solenoid grd

1шт.

29

137762C1

PLATE, sub-frame platform

1шт.

30

CARRIER, rear axle, RH, refer to rear drive axle this group

1шт.

444746

PLUG,Sq Hd, 1/2"-14 NPTF

1/2-14 auto sq-hd drain & filler

1шт.

31

76355

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 JIC

3/8 tube 37 deg hyd flared, for tractors w/out hydraulic seat attachment

1шт.

31

22368R1

CROSS

3/8 tube 37 deg hyd flared, for tractors w/hyd, seat attachment

1шт.

32

9410202

HYD CONNECTOR,9/16"-18, 37 Degree x 9/16"-18, O-Ring

CONNECTOR, 9/16-18 x 3/8 tube 37 deg

1шт.

33

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube

1шт.

34

139009C1

TUBE

ASSY, diff lock valve supply

1шт.

35

157519C1

HYD CONNECTOR,7/16"-20, 37 Degree x 9/16"-18, O-Ring

REDUCER, 1/4 x 3/8 37 deg hyd flared tube

1шт.

36

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube

1шт.

37

139012C2

HYD TUBE

TUBE ASSY, diff valve to reducing valve

1шт.

38

9410200

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB

CONNECTOR, 7/16-20 x 1/4 tube 37 deg hyd str

1шт.

40

534750R92

VALVE

ASSY, pressure reducing, refer to pressure reducing valve this group for list of components

1шт.

179812

GEAR

5/16 x 1/2 pln type 5

2шт.

41

104592C2

SUPPORT

reducing valve mtg

1шт.

179875

BOLT,Hex, 1/2" - 13 x 1/2", Gr 5

1/2 x 1/2 pln type 5, H186, Serial Range: -11326

2шт.

42

9410200

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB

CONNECTOR, 7/16-20 x 1/4 tube 37 deg hyd str

1шт.

44

104767C1

HYD TUBE

TUBE ASSY, diff lock pressure

1шт.

45

9410332

TEE,37 Degree, 9/16"-18, x 9/16"-18, Fem Sw Run

9/16-18 x 3/8 tube 37 deg hyd swivel

1шт.

46

139010C1

HYD TUBE

TUBE ASSY, reducing valve to diff valve

1шт.

47

9410976

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

9/16-18 x 3/8 tube 37 deg hyd

1шт.

48

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube

1шт.

49

120286C1

TEE

1шт.

50

104768C1

HYD TUBE

TUBE ASSY, diff lock dump

1шт.

51

120245C1

HYD TUBE

TUBE ASSY, brake lube RH

1шт.

52

120333C2

CONNECTOR, ELEC

CONNECTOR, brake orifice

1шт.

53

HOUSING, serviced as part of ref 53

1шт.

39

369751R1

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk, 1/4 OD tube

1шт.

43

369751R1

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk, 1/4 OD tube

1шт.
